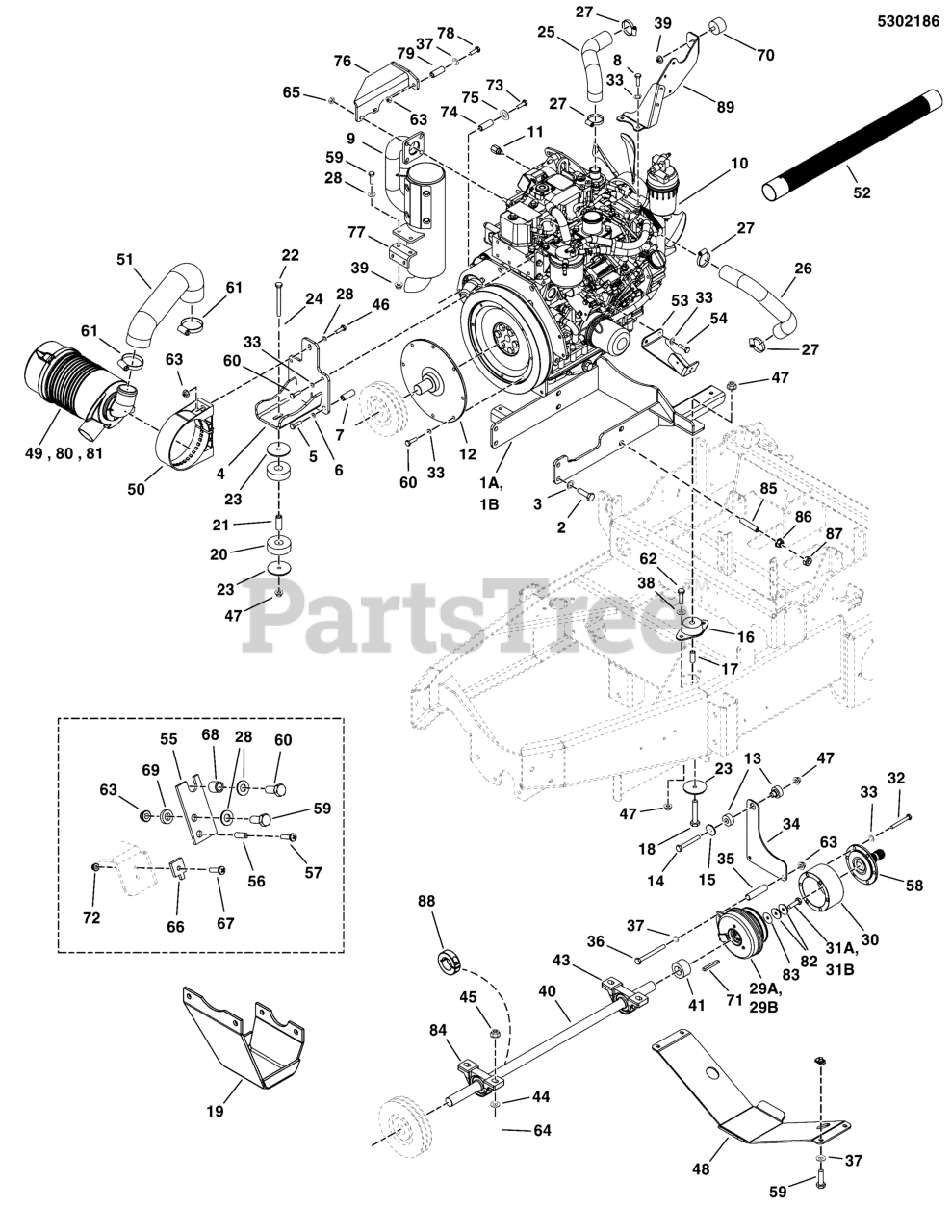

S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

Engine Group (Diesel Models) Parts Diagram

  • Title

1a

Snapper Pro 5405799D

WELD, ENGINE & RADIATOR MOUNT - RED

Note: (S/N: 2015300573 & Below)

$

$

Currently unavailable

1b

Snapper Pro 5408970D

WELD, ENGINE & RADIATOR MOUNT - RED

Note: (S/N: 2015300574 & Above)

$

$

Currently unavailable

2

Snapper Pro 1960677

CAPSCREW-HEX HD M12-1.75 X 25MM
(Superseded to 1960677SM)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025331

WASHER, LOCK, 1/2 HI-ALLOY CZ
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

4

Snapper Pro 5405782D

WELD, ENGINE MOUNT, REAR - RED

$

$

Currently unavailable

5

Snapper Pro 5025556

BOLT, M10-1.50 X 35

$

$

Currently unavailable

6

Snapper Pro 1960754

LOCKWSHER-SPRING M10 BLK (.403 ID)
(Superseded to 1960754SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5102597

SPACER, .41 X .88 X .20, YZ

$6.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5102186

MUFFLER, YANMAR, S800X

$391.99

$

Usually ships in 2-12 days

0

10

ENGINE, YANMAR

$

$

Not available

11

Snapper Pro 5023394

SENDER, WATER TEMPERATURE
(Superseded to 5023394YP)

$39.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101994

SHAFT, YANMAR 3TNV82A PTO

$343.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023131

MOUNT, ISO, BOTTOM, RAD 5000Z-DIESEL
(Superseded to 84003075)

$27.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

15

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

16

Snapper Pro 5102730

ISO MOUNT, FRONT, 155 LBS
(Superseded to 5102730FS)

$47.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5061273

SPACER, .38 X .50 X 1.33
(Superseded to 5061273FS)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5405855D

PLATE, REAR PULLEY GUARD

$

$

Currently unavailable

20

Snapper Pro 5102731

ISO MOUNT, REAR, 490 LBS
(Superseded to 5102731FS)

$61.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5047380

SPACER, .38 X .62 X 1.62
(Superseded to 5047380FS)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

23

Snapper Pro 5047381

WASHER, .39 X 2.50 X .125
(Superseded to 5047381FS)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

25

Snapper Pro 5102563

HOSE, RADIATOR, UPPER, S800XY

$21.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102572

HOSE, RADIATOR, LOWER, S800XY

$28.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 1725746

CLAMP-HOSE WORM DR # 20 1.75-0.81 ST STL
(Superseded to 1725746SM)

$4.49

$

In Stock, only 1 left!

0

28

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

29a

Snapper Pro 5103591

CLUTCH, WARNER, S800X YANMAR
(Superseded to 5103591FS)

Note: (S/N: 2015745414 & Above)

$1173.99

$

Usually ships in 2-12 days

0

29b

Snapper Pro 5600679

KIT, 800XY CLUTCH RPLC, 5103591

Note: (S/N: 2015745413 & Below)

$1393.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5102116

SPACER, PTO DRIVE HUB, S800X YANMAR
(Superseded to 5102116FS)

$142.99

$

Usually ships in 2-12 days

0

31a

Snapper Pro 5102862

BOLT, CRANKSHAFT, 7/16"X2"
(Superseded to 5102862FS)

Note: (S/N: 2015745414 & Above)

$4.49

$

Usually ships in 2-12 days

0

31b

Snapper Pro 5102863

BOLT, CRANKSHAFT,7/16-20X2-1/4, GD8
(Superseded to 5102863FS)

Note: (S/N: 2015745413 & Below)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025542

BOLT, HEX M8-125 X 75, GD 8.8, YZ
(Superseded to 5025542FS)

$2.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5406051D

PLATE, CLUTCH ANCHOR - RED
(Superseded to 5406051DFS)

$15.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5101237

SPACER, .31 X .63 X 1.47, YZ
(Superseded to 5101237FS)

$12.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

37

Snapper Pro 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

38

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

40

Snapper Pro 5101992

SHAFT, PUMP DRIVE, S800X
(Superseded to 5101992FS)

$468.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5102727

SPACER, 1.00 X 1.88 X .57, CZ
(Superseded to 5102727FS)

$19.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025011X5

BOLT, 5/16-18 X 5/8 GD5 YZ
(Superseded to 5025011X5YP)

Note: (Not Shown - Fuel Filter Hardware)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5021095

BEARING, PILLOW BLOCK, 1
(Superseded to 5021095SM)

$75.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025381

WASHER, 7/16 GD9 YZ
(Superseded to 5025381YP)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025094

NUT, 7/16-20 HEX NYLON LOCK
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

47

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

48

Snapper Pro 5405873D

PLATE, CLUTCH GUARD
(Superseded to 5405873DFS)

$84.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 809218

AIR CLEANER ASSY
(Superseded to 809670)

$235.99

$

In Stock, only 1 left!

0

50

Snapper Pro 807213

BRACKET, AIR CLEANER ASSY
(Superseded to 809878)

$65.99

$

In Stock, only 1 left!

0

51

Snapper Pro 5102567

HOSE, AIR CLEANER, S800XY

$61.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5102583

DUCT, COLD AIR INTAKE, 2 X 27.75

Note: (Not Shown)

$63.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5405842D

BRACKET, THROTTLE CABLE MOUNT - RED

$

$

Currently unavailable

54

Snapper Pro 5025494

BOLT, M8-1.25 X 16MM GD8.8
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper Pro 5406823D

BRACKET, BARREL CLAMP SUPPORT

$

$

Currently unavailable

56

Snapper Pro 5047650

CLAMP, BARREL, THROTTLE

$8.99

$

Usually ships in 2-12 days

0

57

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

58

Snapper Pro 5102131

SHAFT, DECK DRIVE SPLINED
(Superseded to 5102131FS)

$432.99

$

Usually ships in 2-12 days

0

59

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5023448

CLAMP, SS HOSE 2-3/4
(Superseded to 5023448FS)

$5.49

$

Usually ships in 2-12 days

0

62

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

63

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

64

Snapper Pro 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

65

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

66

Snapper Pro 5022901

CLAMP, CONDUIT
(Superseded to 5022901FS)

$2.49

$

Usually ships in 2-12 days

0

67

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

68

Snapper Pro 5102148

SPACER, .33 X .50 X .50, YZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

69

Snapper Pro 5025483

WASHER, .350 ID X .65 OD X .160 THK. YZ

$

$

Currently unavailable

70

Snapper Pro 5023130

MOUNT,ISO,TOP,RAD 5000Z-DIESEL
(Superseded to 5023130FS)

$32.99

$

Usually ships in 2-12 days

0

71

Snapper Pro 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

72

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

73

Snapper Pro 1960573

CAPSCREW-HEX HD M08-1.25 X 50MM 8.8 BLK
(Superseded to 1960573SM)

$3.49

$

Usually ships in 2-12 days

0

74

Snapper Pro 5102401

SPACER, .33 X .50 X 1.50, YZ

$

$

Currently unavailable

75

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

76

Snapper Pro 5407324D

WELD, ALTERNATOR SUPPORT - RED

$

$

Currently unavailable

77

Snapper Pro 5408968D

BRACKET, ADJ MUFFLER MNT

Note: (S/N: 2015300574 & Above)

$

$

Currently unavailable

78

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

79

Snapper Pro 5101260

SPACER, .33 X .63 X 1.00, CZ
(Superseded to 5101260YP)

$9.99

$

Usually ships in 2-12 days

0

80

Snapper Pro 841237

ELEMENT ASSY

$36.99

$

Usually ships in 2-12 days

0

81

Snapper Pro 841238

AIR FILTER

$40.99

$

Usually ships in 2-12 days

0

82

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 1 left!

0

83

Snapper Pro 5102965

SPACER, .45 X 1.88 X .38
(Superseded to 5102965YP)

Note: (S/N: 2015745414 & Above)

$23.99

$

Usually ships in 2-12 days

0

84

Snapper Pro 5103838

BEARING, 1" GRIP-IT, PILLOW BLOCK
(Superseded to 5103838YP)

Note: (Torque set screws to 60 in. lbs.)

$99.99

$

Usually ships in 2-12 days

0

85

Snapper Pro 5025600

SOC SET SCREW, M12-1.75 X 70MM, SS CUP PT

$

$

Currently unavailable

86

Snapper Pro 5025601

HEX NUT, FLG, M12-1.75, SER, CZ NO SEALER

$

$

Currently unavailable

87

Snapper Pro 5025602

HEX NUT, NYLON INSERT

$

$

Currently unavailable

88

Snapper Pro 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

89

Snapper Pro 5406404D

WELD, FUEL PUMP MOUNT

$40.99

$

Usually ships in 2-12 days

0
