S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE PULLEY & PTO CLUTCH Parts Diagram
Lawn Tractor

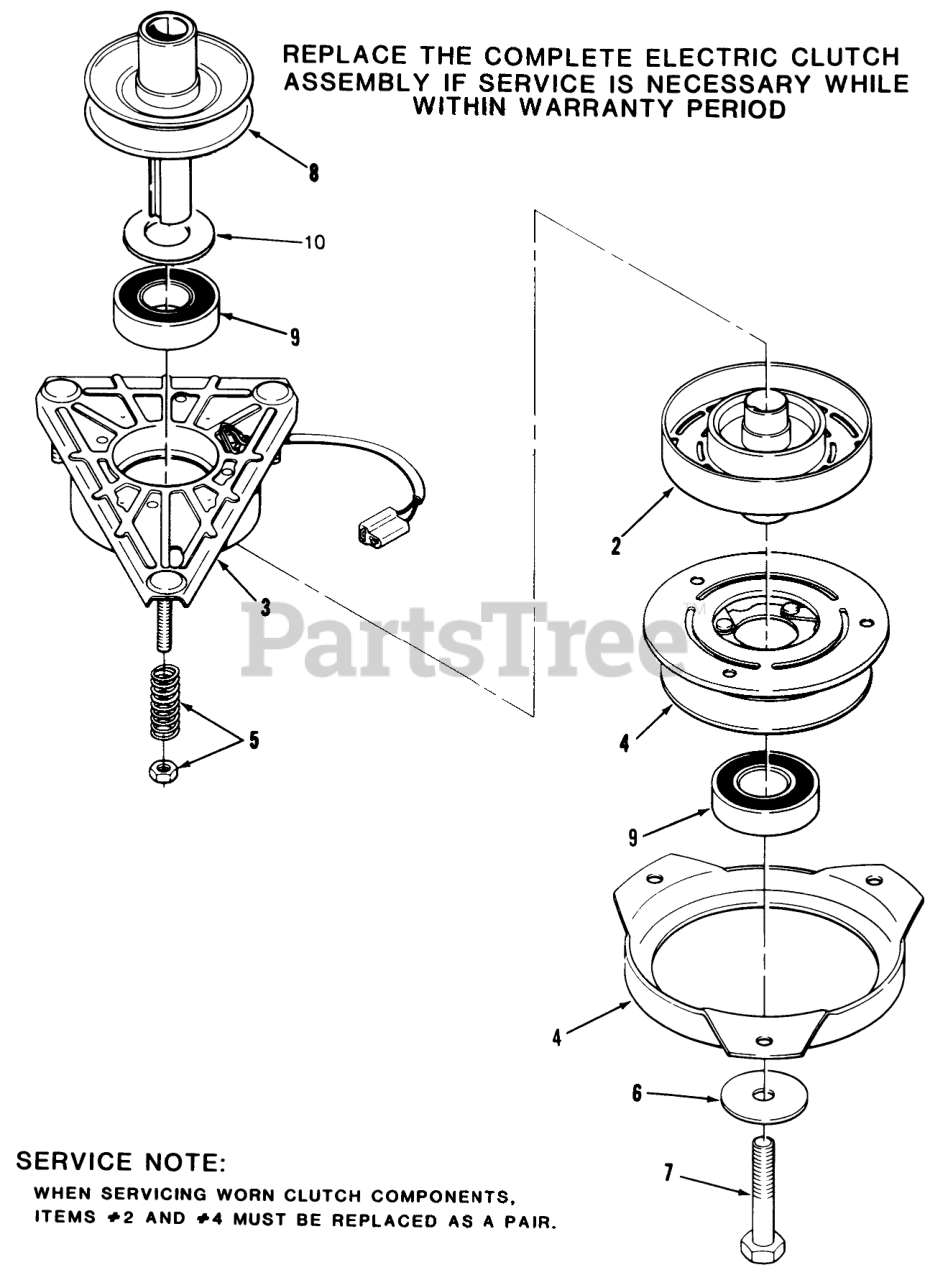

ENGINE PULLEY & PTO CLUTCH Parts Diagram
$
$
Not available
Toro 113820
ASS'Y-ROTOR
$
$
Not available
Toro 113821
Field Assembly (Incl. one of Ref. #9)
$
$
Not available
Toro 113822
Armature and Pulley Assy (Incl. one of Ref. #9 and Brake Plate)
$438.99
$
Usually ships in 3-6 days
Toro 113823
ACCESS SPRING & NUT
$
$
Not available
Toro 112843
WASHER
$3.49
$
In Stock, Qty 18
Toro 115203
HHCS-M10X1.5X110 ESL
$10.99
$
Usually ships in 3-6 days
Toro 112857
PULLEY-ENGINE
$
$
Not available
Toro 114064
BEARING-ELEC CLUTCH
$77.99
$
In Stock, only 2 left!
Toro 114271
WASHER
$
$
Not available
