S2600 (8840-0) - Generac 2,600 Watt Portable Generator Carburetor Parts Diagram

2,600 Watt Portable Generator

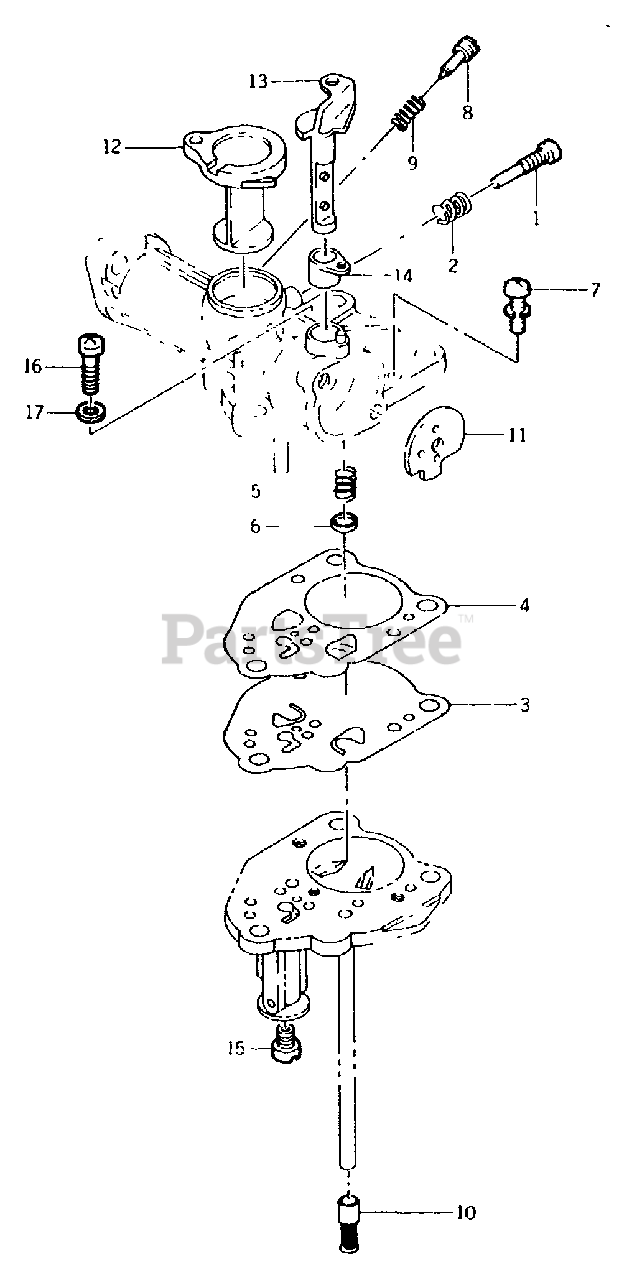

Carburetor Parts Diagram

  • Title

Briggs & Stratton 15067416

CARBURETOR Assembly

Note: (Includes Items 1 thru 17); Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 22467416

SCREW, Low Speed Stop

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 22567416

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 22667416

DIAPHRAGM

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 22767416

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 22867416

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 22967416

CAP, Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 23067416

SCREW - 4 x 14

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 23167416

SCREW, Adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 23267416

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 23367416

STRAINER

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 23467416

SHAFT, Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 23567416

SHAFT, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 23667416

VALVE, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 23767416

COLLAR

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 23867416

JET, Main (No. 86)

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 23967416

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 24067416

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable
