S6031-KW (53AI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Cutter Deck 60-Inch Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

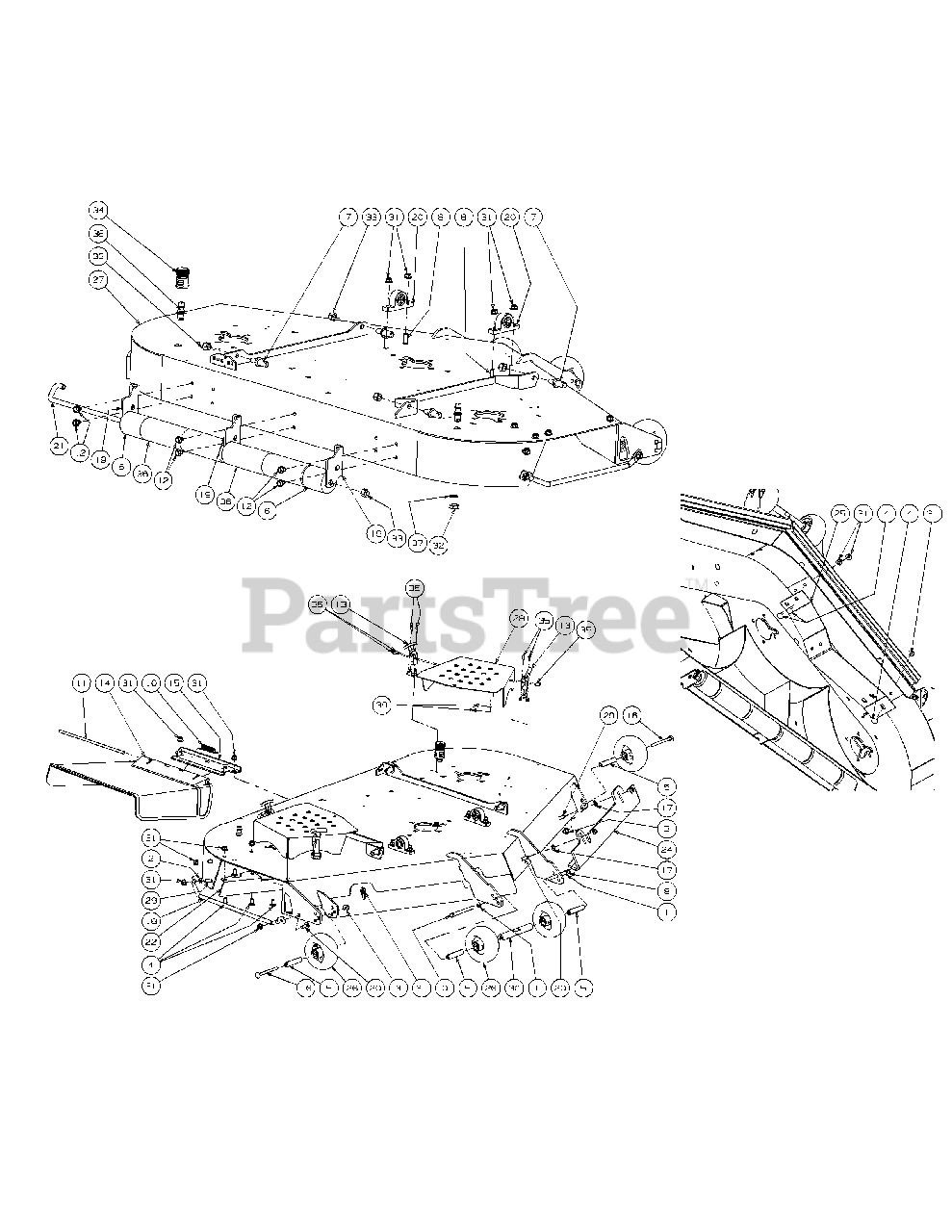

Cutter Deck 60-Inch Parts Diagram

  • Title

1

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Washer, 3/8

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01001169

Grass Catcher Roller

$24.99

$

In Stock, only 3 left!

0

7

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2 Lg.
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

8

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 710-0944

Hex Cap Screw

$10.99

$

In Stock, Qty 14

0

10

Cub Cadet 732-04797

Torsion Spring, 0.4ID x 2.16Lg

$11.99

$

In Stock, only 4 left!

0

11

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

12

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

13

Cub Cadet 935-04038

T-Handle Latch Draw

$15.99

$

In Stock, Qty 14

0

14

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 8

0

15

Cub Cadet 01006748-0637

Chute Deflector Bracket

$35.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

17

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 9

0

18

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01008790-0637

Grass Catcher Roller Bracket

$37.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000109

Lift Pillow Block Standard

$126.99

$

In Stock, only 3 left!

0

21

Cub Cadet 02002800

J-Hook w/ Threaded Roller

$22.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02005195-0637

Chute Baffle

$45.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02005200-4021

Right Hand Front Adjustment Skirt

$

$

Not available

24

Cub Cadet 02005201-4021

Left Hand Front Adjustment Skirt

$

$

Not available

25

Cub Cadet 02005694-0637

Baffle, 60" Adjustment

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

27

Cub Cadet 980-00024-0637

60" Deck Assembly

$2374.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-06871-4021

Deck Belt Cover

$

$

Not available

29

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 12

0

30

Cub Cadet 711-05159

Ball Wheel Mounting Shaft

$33.99

$

In Stock, only 3 left!

0

31

Cub Cadet 712-04065

Lock Nut, Nylon Insert

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

33

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.49

$

In Stock, Qty 19

0

34

Cub Cadet 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

35

Cub Cadet 00017778

Phillips Head Screw, 10-32

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

38

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

39

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0
