S6031-KW (53AI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Deck Spindle Assembly 60-Inch Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

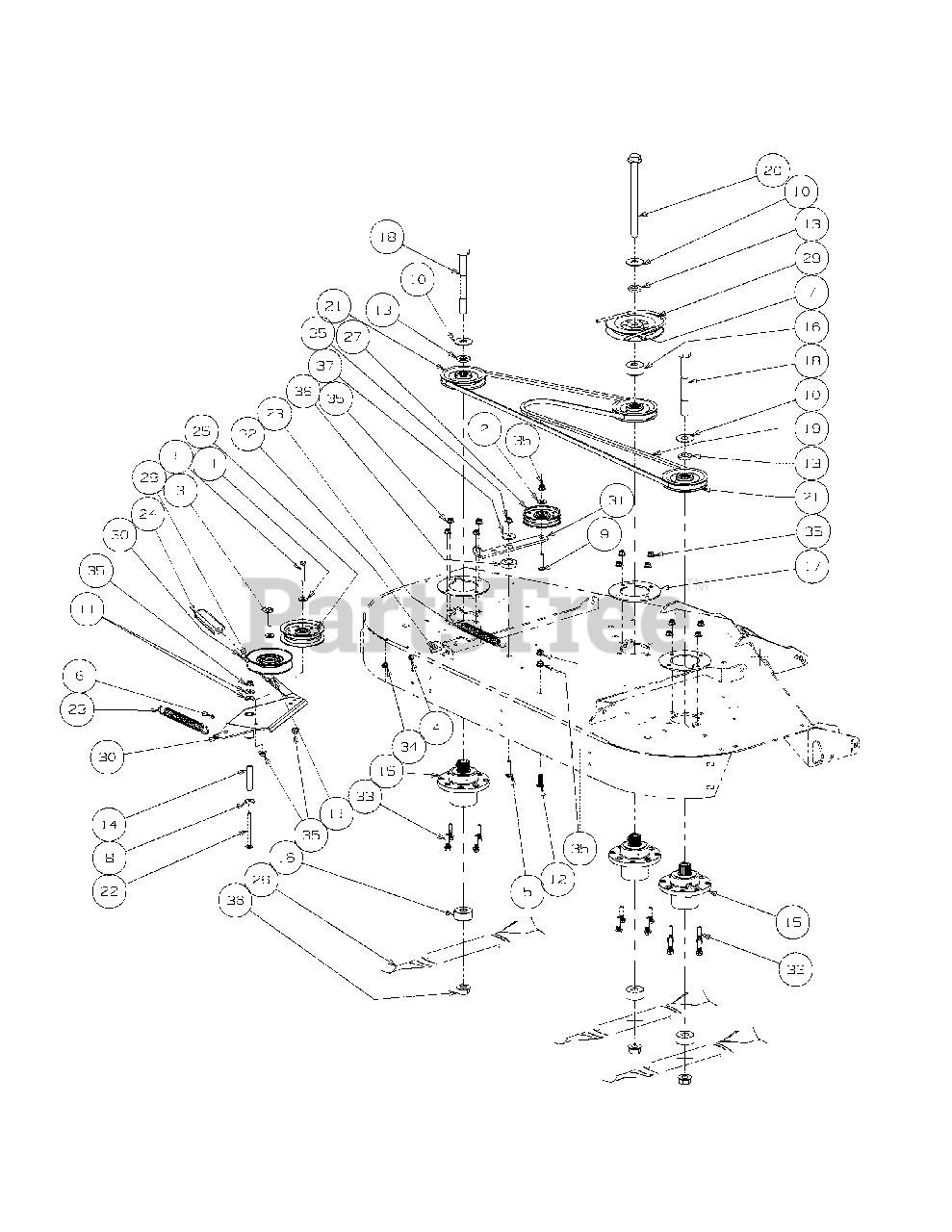

Deck Spindle Assembly 60-Inch Parts Diagram

  • Title
1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

4

Cub Cadet 00012166

Nut, 5/16-18, Hex

$

$

Not available

5

Cub Cadet 00030276

Carriage Bolt, 3/81-6 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 00068079

V-Belt, B-Section, BK90

$92.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01004415

Spacer, .760 ID x 2.00 OD x 1.1

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 01005376

V-Belt, A Section x 122.3
(Superseded to 01005376P)

$87.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, Qty 5

0

21

Cub Cadet 01005616

V-Pulley, 5.00 OD

$

$

Not available

22

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

23

Cub Cadet 02003712

Extension Spring, .94 x OD x 7.57
(Superseded to 732-04960)

$14.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02003740

Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005019

Hi-Lift Blade, 21.0, 0.756 ID
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

28

Cub Cadet 756-04522

Idler Pulley, 5.06 OD

$39.99

$

In Stock, Qty 5

0

29

Cub Cadet 02005097

V-Pulley, 6.38 OD x .760 ID

$

$

Not available

30

Cub Cadet 02005509P

Idler Arm Assembly includes:

$100.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, only 2 left!

0

31

$19.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 13

0

33

Cub Cadet 710-04829

Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-04063

Nut, 5/16-18, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04065

Nut, 3/8-16, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0227

Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

38

Cub Cadet 738-04376

Shoulder Screw, .854 x .280

$9.99

$

In Stock, only 1 left!

0
