S6031-KW (53AI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Front Axle Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

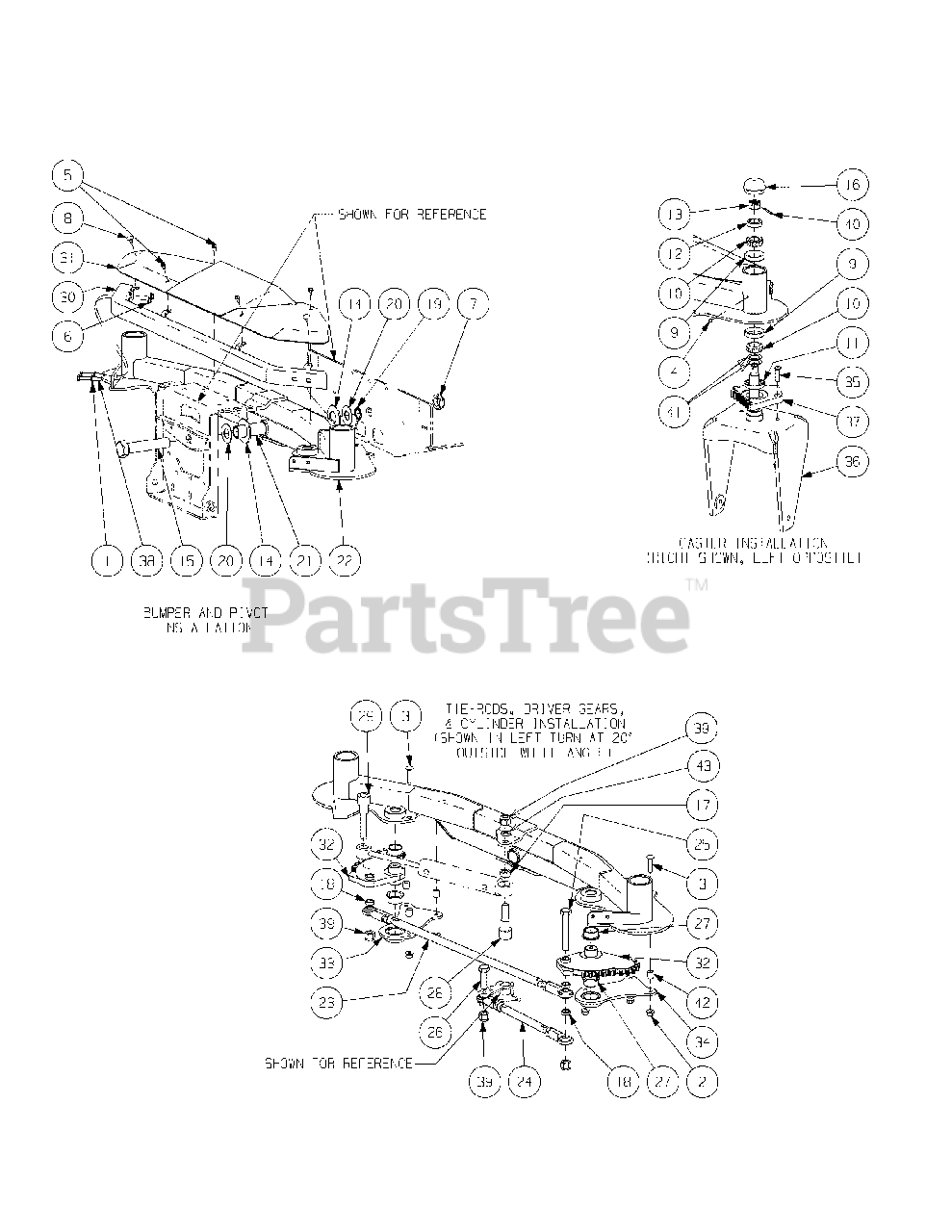

Front Axle Assembly Parts Diagram

  • Title
1

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

2

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00030276

Carriage Bolt, 3/81-6 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04191

Nut, 1.0-14, Flange TopLock

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 THK
(Superseded to 735-0199A)

$7.99

$

In Stock, Qty 7

0

9

Cub Cadet 01002620

Cup Bearing
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

10

Cub Cadet 01002621

Bearing Cone
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

11

Cub Cadet 01002622

Seal
(Superseded to 721-04462)

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 01002624

Ring Seal
(Superseded to 750-05600)

$7.49

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01006294

Bell Washer, 1.25 ID x 2.5 x .157
(Superseded to 736-04604)

$8.49

$

In Stock, only 3 left!

0

15

Cub Cadet 02003804

Hex Cap Screw, 1-14 x 5.0
(Superseded to 710-06026)

$46.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, only 2 left!

0

17

Cub Cadet 01007527

Spacer, .630 ID x 1.06 OD x .440

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 01008404P

Spacer, .635 ID x .28 LG

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet 02000588

Flat Washer, 1.00 ID
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$31.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02003120-0637

Axle Assembly

$966.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003187

Tie Rod Assembly, 1/2-20 x 15.95 LG

$

$

Not available

24

Cub Cadet 02003217

Tie Rod Assembly, 5/8-18 x 14 LG

$

$

Not available

25

Cub Cadet 02003220

HHCS, 5/8-11 x 4.00

$

$

Not available

26

Cub Cadet 02003222

HHCS, 5/8-11 x 2.00

$

$

Not available

27

Cub Cadet 02003307

Flange Bearing, 1.253 x 1.749 x .740

$148.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003356

Shoulder Bolt, .875 x 1.030 x 1.75

$55.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02003357

Shoulder Bolt, .875 x 1.030 x 2.88

$

$

Not available

30

Cub Cadet 02003369-0637

Front Bumper Assembly

$

$

Not available

31

Cub Cadet 02003374-4021

Axle Cover Assembly

$

$

Not available

32

Cub Cadet 759-04280

Driver Gear

$

$

Not available

32

Cub Cadet 680-00183

Driver Gear

$157.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02003390-0637

Steering Support Bracket Assembly, LH

$

$

Not available

34

Cub Cadet 02003394-0637

Steering Support Bracket Assembly, RH

$

$

Not available

35

Cub Cadet 02005073

FHCS, 3/8-16 x 1.50

$

$

Not available

36

$777.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 759-04280

Steering Gear

$

$

Not available

37

Cub Cadet 717-04846

Steering Gear

$138.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-0395

HHCS, 5/16-18 x 2-1/4

$4.99

$

In Stock, only 1 left!

0

39

Cub Cadet 712-3016

Nut, 5/8-11m Hex Nylon Lock

$6.99

$

In Stock, Qty 13

0

40

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-04386

Washer, 1.00 x 1.50 x .03, SS

$6.99

$

In Stock, Qty 5

0

42

Cub Cadet 750-05075

Spacer, .407 x .625 x .675 LG

$

$

Not available

43

Cub Cadet 00002766

Washer, 1 1/2 x 5/8 x .055

$3.49

$

In Stock, only 4 left!

0

Cub Cadet 759-04280

Steering Gears Service Kit

Note: (not shown)

$

$

Not available
