S6031-KW (53AI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Seat & Floor Panel Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

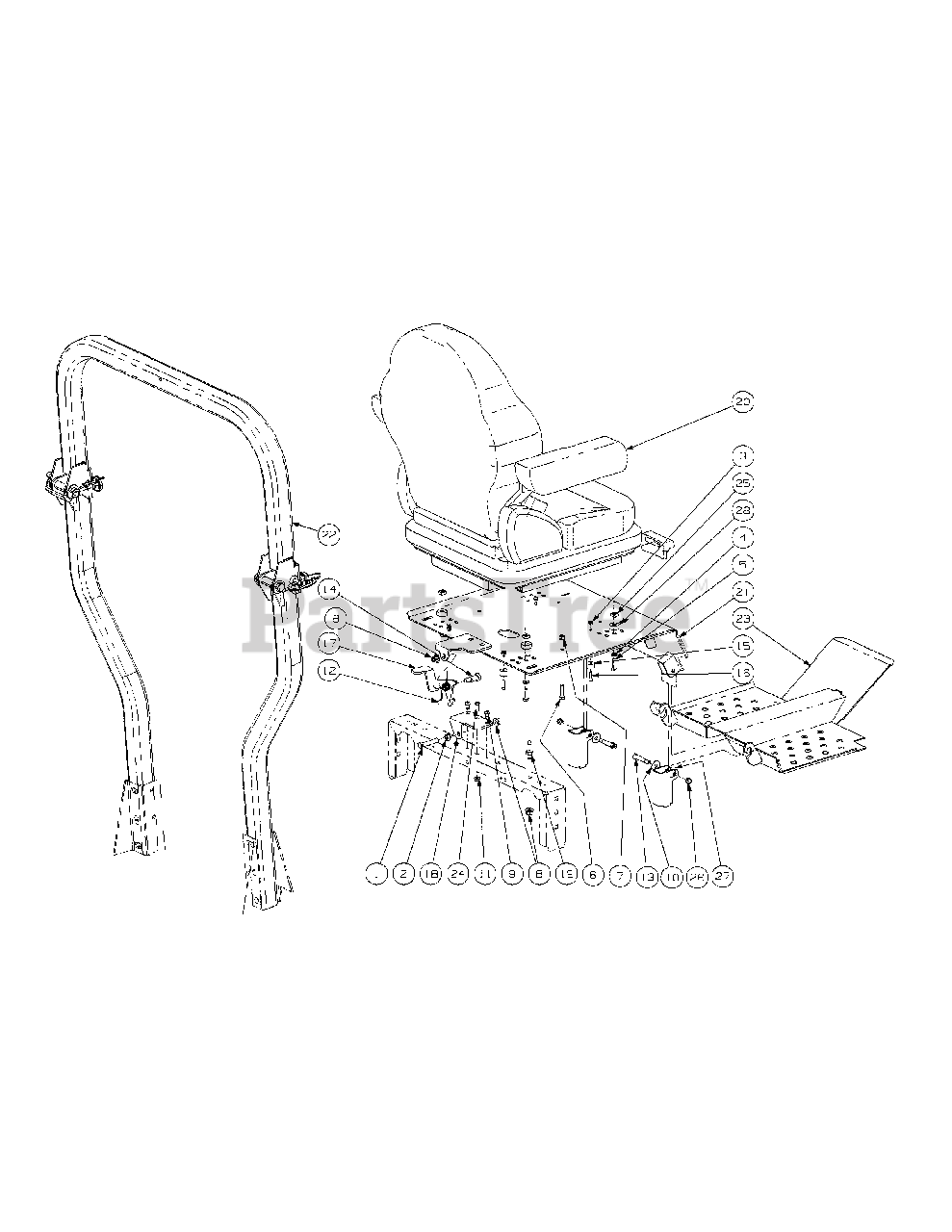

Seat & Floor Panel Assembly Parts Diagram

  • Title
1

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0161

Nut, 10-24, Nylon Insert

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

5

Cub Cadet 00012180

Hex Cap Screw, 5/16-18 x 1.00

$

$

Not available

6

Cub Cadet 00013116

Hex Cap Screw, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022547

Nut, 5/16-18, Center Lock

$

$

Not available

8

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$34.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009459

Shoulder Bolt, .375 x 1.50

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02002091

Shoulder Bolt, 1/2 x 3/4, 3/8-16

$

$

Not available

15

Cub Cadet 02002963

Rubber Stop with Washer
(Superseded to 735-04287)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002964

Standard Cap Screw, #10-24 x .75
(Superseded to 710-04868)

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 02003732

Latch Lever Bracket

$

$

Not available

18

Cub Cadet 02003738-0637

Latch Bracket

$

$

Not available

19

Cub Cadet 02003745

Adjustable Stud
(Superseded to 711-05676)

$

$

Not available

20

Cub Cadet 02004228

Seat w/ Seat Belt & Suspension

$

$

Not available

20

Cub Cadet 01008364

Armrest Kit

Note: (not shown)

$

$

Not available

20

Cub Cadet 02000767P

Seat Switch Assembly

Note: (not shown)

$

$

Not available

21

Cub Cadet 02004303-0637

Seat Plate Assembly

$

$

Not available

22

Cub Cadet 02005081

Foldable Rops Assembly includes:

$

$

Not available

22

Cub Cadet N/A

Knob

Note: (not shown)

$

$

Currently unavailable

22

Cub Cadet 02004324

Pin, Lock

Note: (not shown)

$

$

Not available

23

Cub Cadet 02005595-0637

Floor Panel Assembly

$

$

Not available

24

Cub Cadet 710-3015

Screw, Hex, Cap, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04190

Nut, 5/16-18

$

$

Not available

26

Cub Cadet 912-0429

Nut, 5/16-18, Nylock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 735-04159

Grommet, .38 ID x .75 OD x .75

$

$

Not available

28

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, Qty 5

0
