S7237-KW (53AI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Control Assembly Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

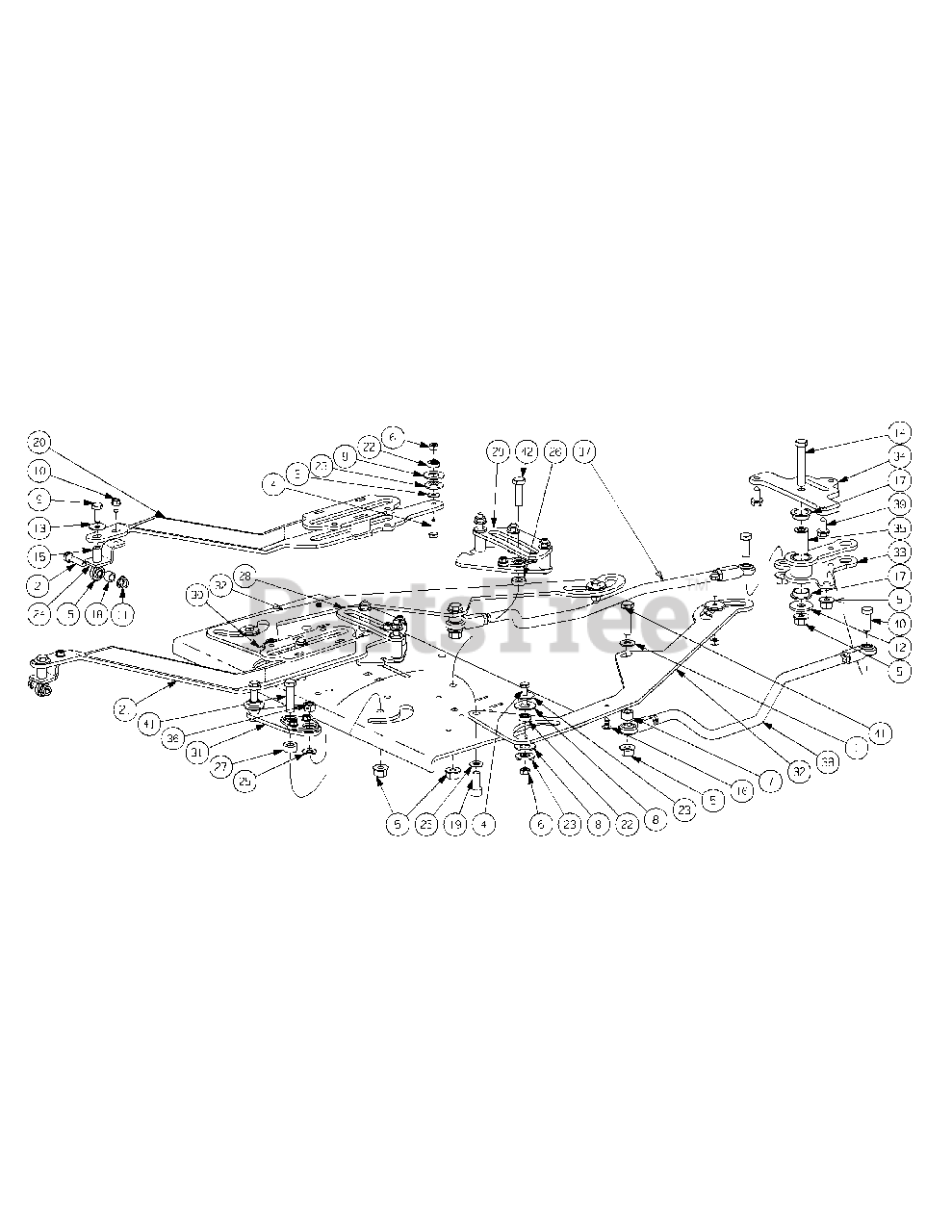

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

2

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet 936-0463

Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0597

HHCS, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 18

0

5

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00023041

Nut, 1/4-NC, Side Lock

$

$

Not available

7

Cub Cadet 00081551

Spacer, .625 OD x .407 ID x .375

$

$

Not available

8

Cub Cadet 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

9

Cub Cadet 01000627

HHCS, 5/16-24 x .75

$

$

Not available

10

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

13

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

14

Cub Cadet 01001366

HHCS, 3/8-16 x 2.25

$

$

Not available

15

Cub Cadet 01008410P

Rod End, 5/16, RH
(Superseded to 723-04039)

$57.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008801

Rivet, 1/4 x 5/8

$

$

Not available

17

Cub Cadet 02003163

Flange Bearing, .752 x 1.125 x .305

$

$

Not available

18

Cub Cadet 02003170

Spacer, .334 x .500 x .375

$9.49

$

In Stock, only 4 left!

0

19

Cub Cadet 02003309

Socket Head Cap Screw, 3/8-16 x .88

$

$

Not available

20

Cub Cadet 02003327

Pump Control Bracket Assembly, RH

$

$

Not available

21

Cub Cadet 02003330

Pump Control Bracket Assembly, LH

$

$

Not available

22

Cub Cadet 02003377

Ball Bearing, .25 ID x .625 OD x .196

$26.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003379

Shoulder Spacer, .251 x 1.00 x .155

$

$

Not available

24

Cub Cadet 02003384

Support Rod End Bracket

$

$

Not available

25

Cub Cadet 02005054

Spacer, .381 x .750 x .040

$16.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02005055

Spacer, .381 x .750 x .150

$15.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02005056

Spacer, .381 x .750 x .312

$21.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02005290

Speed Control Cam Shaft, LH

$359.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02005291

Speed Control Cam Shaft, RH

$351.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005292

Steering Pivot Assembly, LH

$

$

Not available

31

Cub Cadet 02005293

Steering Pivot Assembly, RH

$

$

Not available

32

Cub Cadet 02005463

Control Link Plate

$40.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02005468

Front Steering Pivot Assembly

$

$

Not available

34

Cub Cadet 02005482

Pivot Steering Mounting Plate

$

$

Not available

35

Cub Cadet 02005483

Spacer, .385 x .750 x 1.28

$

$

Not available

36

Cub Cadet 02005566

Hex Nut, 3/8-16, Center Lock

$

$

Not available

37

Cub Cadet 603-04618

Control Rod Assembly, LH

$

$

Not available

38

Cub Cadet 603-04619

Control Rod Assembly, RH

$88.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04484

Self Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0514

HHCS, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0520

HHCS, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 710-3005

HHCS, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0
