S7237-KW (53CI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Kawasaki FXT00V-BS04 Air Filter & Muffler Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

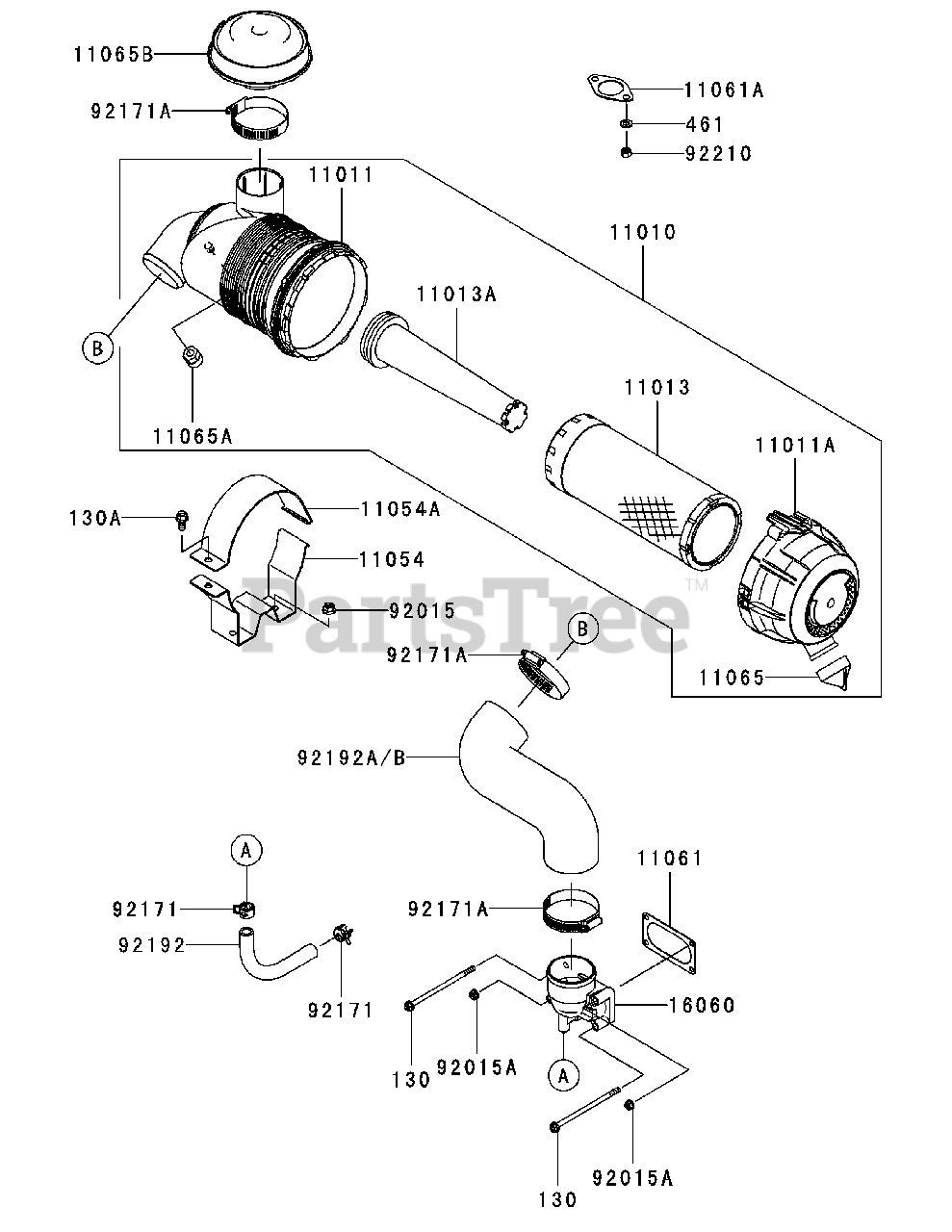

Kawasaki FXT00V-BS04 Air Filter & Muffler Parts Diagram

  • Title

11010

Cub Cadet KM-11010-7020

Filter-Assy-Air
(Superseded to KM-99999-7083)

Note: Complete as shown

$224.99

$

Usually ships in 2-5 days

0

11011

Cub Cadet KM-11011-7047

Case-Air Filter

$63.99

$

Usually ships in 2-5 days

0

11011A

Cub Cadet KM-11011-7048

Case-Air Filter
(Superseded to KM-11011-7050)

Note: End cap

$48.99

$

In Stock, Qty 5

0

11013

Cub Cadet KM-11013-7038

Element-Air Filter

Note: Pre filter

$36.99

$

In Stock, Qty 10

0

11013A

Cub Cadet KM-11013-7039

Element-Air Filter

$48.99

$

In Stock, Qty 12

0

11054

Cub Cadet KM-11054-70129X

Bracket

$

$

Not available

11054A

Cub Cadet KM-11054-70139X

Bracket
(Superseded to KM-11057-4280)

$11.99

$

Usually ships in 3-6 days

0

11061

Cub Cadet KM-11061-7056

Gasket, Pipe-Intake

$1.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7061

Gasket, Muffler

$2.49

$

In Stock, only 2 left!

0

11065

Cub Cadet KM-11065-7008

Cap

$19.99

$

In Stock, Qty 12

0

11065A

Cub Cadet KM-11065-7009

Cap

$10.99

$

In Stock, only 1 left!

0

11065B

Cub Cadet KM-11065-7017

Cap
(Superseded to KM-11065-7034)

$33.99

$

Usually ships in 3-6 days

0

510

Cub Cadet KM-130AA06120

Bolt,Flanged 6x120

$3.99

$

In Stock, Qty 20+

0

59051

Cub Cadet KM-130AA0816

Bolt,Flanged 8x16

$0.99

$

In Stock, Qty 10

0

16060

Cub Cadet KM-16060-6006

Pipe-Intake

$

$

Not available

92015A

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 4 left!

0

92171

Cub Cadet KM-92171-7013

Clamp
(Superseded to KM-92171-7003)

$0.99

$

Usually ships in 2-5 days

0

92171A

Cub Cadet KM-92171-7023

Clamp. Air-Filter
(Superseded to KM-92173-7011)

$8.49

$

In Stock, only 1 left!

0

92192

Cub Cadet KM-92192-7075

Tube

$

$

Not available

92192A

Cub Cadet KM-92192-7076

Tube

$

$

Not available

92192B

Cub Cadet KM-92192-7096

Tube

$65.99

$

Usually ships in 2-5 days

0

92210

Cub Cadet KM-92210-7027

Nut, M8

$1.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA06120

Bolt, Flanged, 6x120

$3.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130AA0816

Bolt, Flanged, 8x16

$0.99

$

In Stock, Qty 10

0
