S7237-KW (53DI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Electrical Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

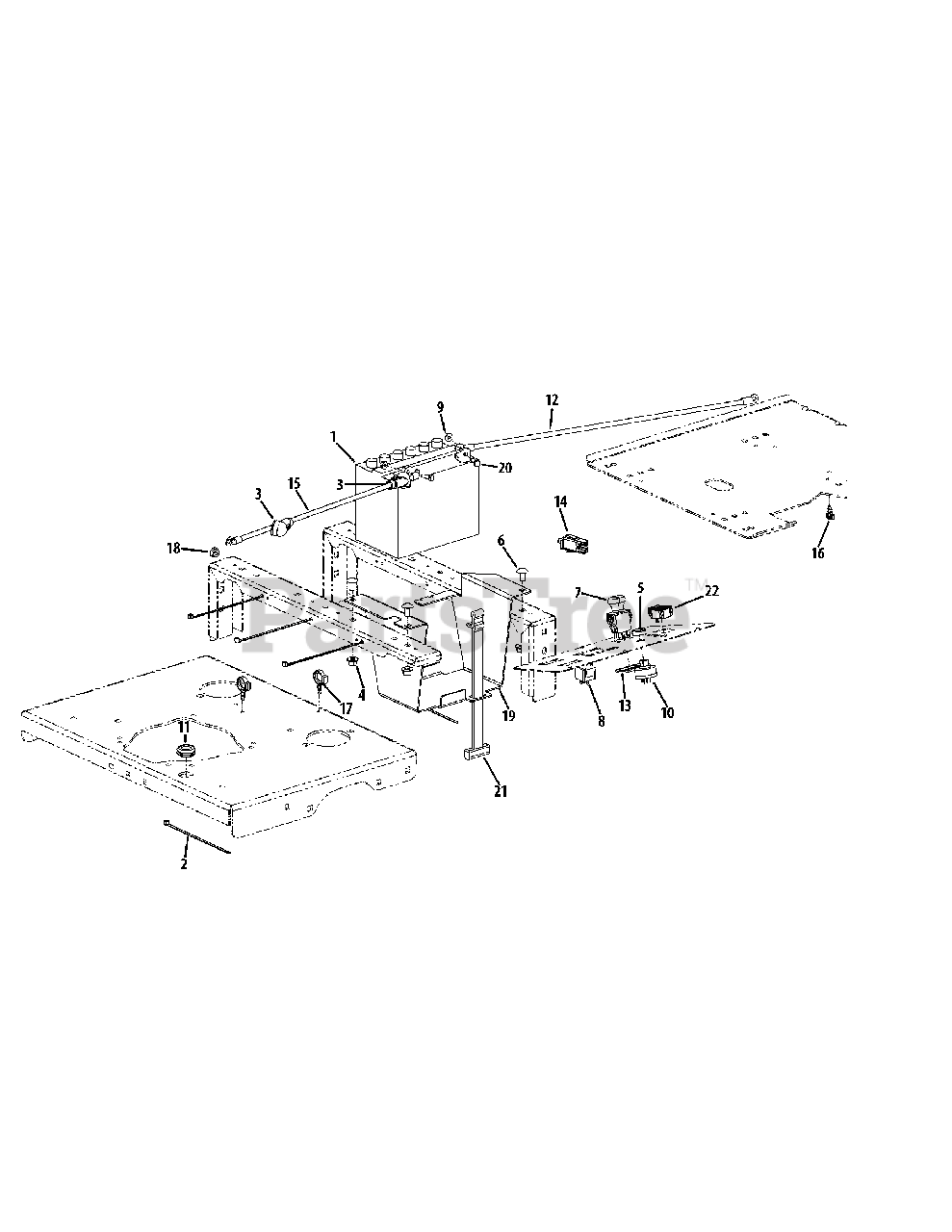

Electrical Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery

$

$

Not available

2

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

3

Cub Cadet 00013258

Boot Terminal, 1.00 x 2.50

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00022560

Flange Counter Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00032097

Ingnition Nut w/ Cap, 5/8-32
(Superseded to 00032097P)

$

$

Not available

6

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01002111

PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01002251

Relay

$53.99

$

In Stock, only 2 left!

0

9

Cub Cadet 912-3027

Flange Top Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01003581P

Ignition Switch

$65.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01004040

Grommet, .75
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009623

Batter Cable

$

$

Not available

13

Cub Cadet 01009905

PTO Switch Bracket

$25.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02000024P

Switch
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 13

0

15

Cub Cadet 02002059

Battery Cable

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02003038

Electric CDT Clip, 3/8

$

$

Not available

17

Cub Cadet 02003775

Electric CDT Clip, 5/8

$

$

Not available

18

Cub Cadet 02003984

Flange Nut, M8-1.25
(Superseded to 712-04312)

$3.49

$

In Stock, only 2 left!

0

19

Cub Cadet 02004355

Battery Bracket

Variations

Cub Cadet 02004355-0637

BRACKET - BATTERY - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 723-3064

Battery Strap

$27.99

$

In Stock, only 4 left!

0

22

Cub Cadet 925-04893

Hour Meter
(Superseded to 925-04893A)

$154.99

$

Usually ships in 3-6 days

0

Cub Cadet 01001811

Hour Meter Harness
(Superseded to 929-04195)

Note: Not shown

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002822

Wiring Harness

Note: Not shown

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002824

Wiring Harness

Note: Not shown

$195.99

$

Usually ships in 3-6 days

0

Cub Cadet 02004924

Fan Wiring Adapter

Note: Not shown

$

$

Not available

Cub Cadet 02004925

Grammer Seat Adapter Harness

Note: Not shown

$

$

Not available

Cub Cadet 629-04164

Lock Switch Wire Harness Assembly

Note: Not shown

$

$

Not available
