SB-800 ST (316-746E190) - White Outdoor Snow Boss Snow Thrower (1996) Handle Assembly And Gear Ring Parts Diagram

Snow Boss Snow Thrower

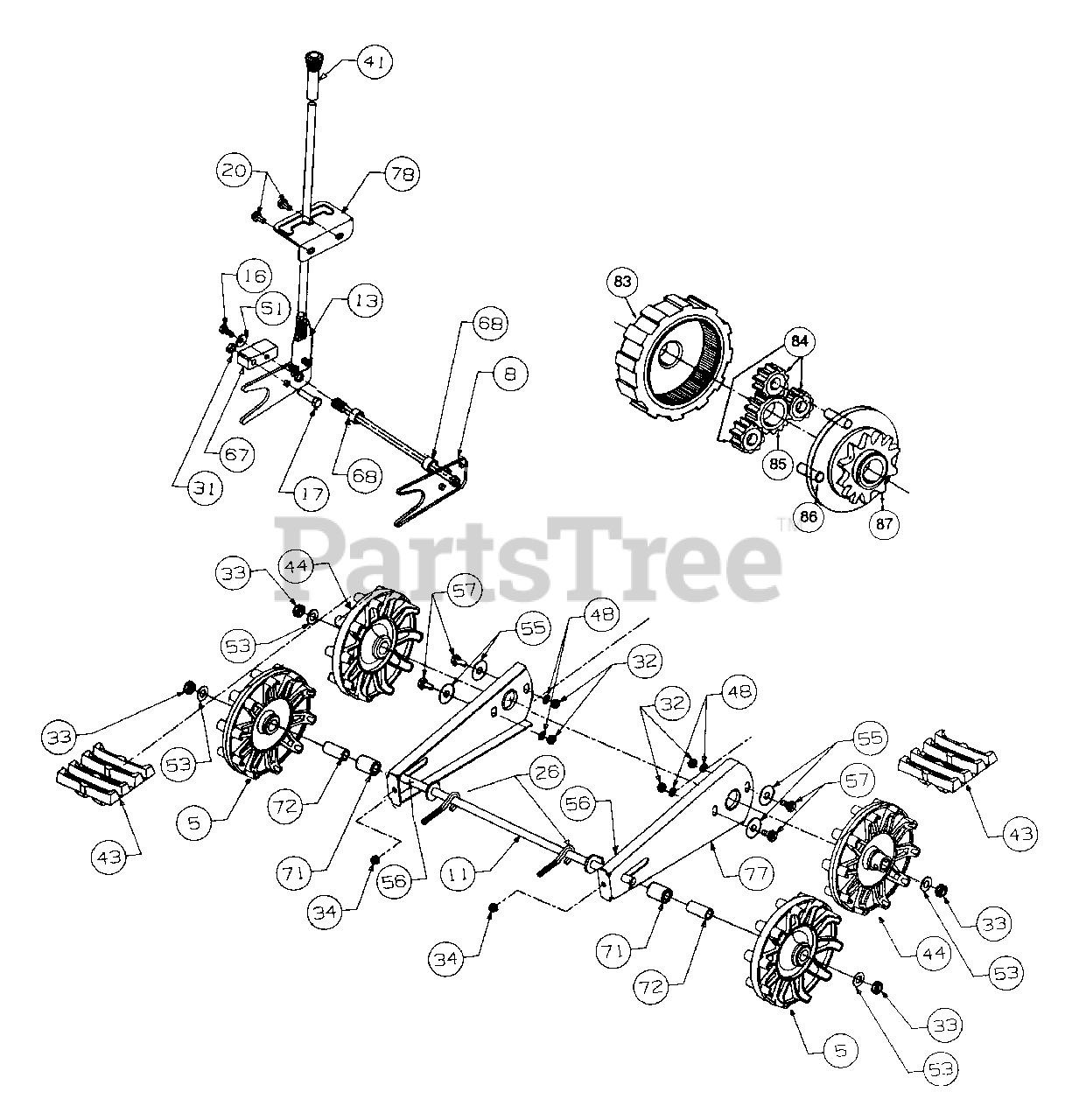

Handle Assembly And Gear Ring Parts Diagram

  • Title

5

MTD 631-0032A

Wheel Assembly Idler

$45.99

$

In Stock, only 2 left!

0

8

MTD 684-0009

Rod Track Pivot
(Superseded to 684-0009A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

11

MTD 753-05977

Axle Assembly

$100.99

$

Usually ships in 3-6 days

0

13

MTD 684-0038

Handle Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-4021

HANDLE ASM-TRACKLOC - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0665

HANDLE ASM-TRACKLOC - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

16

MTD 710-0157

Screw

$4.49

$

In Stock, Qty 14

0

17

MTD 710-0459A

Screw

$6.99

$

In Stock, Qty 10

0

20

MTD 710-0604A

Screw

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-1231

Screw

$9.49

$

In Stock, only 2 left!

0

31

MTD 912-0214

Nut Lock
(Superseded to 712-0214)

$6.49

$

In Stock, Qty 20+

0

32

MTD 912-0267

Nut Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 912-0346

Nut Jam
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 14

0

34

MTD 912-0429

Nut Hex
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

41

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 9

0

43

MTD 731-1292

Track

$291.99

$

Usually ships in 3-6 days

0

44

MTD 731-1538A

Wheel - Track Drive

$36.99

$

In Stock, Qty 8

0

48

MTD 936-0119

Washer - Lock

$4.99

$

In Stock, Qty 20+

0

51

MTD 736-0270

Washer - Bell

$3.99

$

In Stock, Qty 10

0

53

MTD 936-0272

Washer - Flat
(Superseded to 736-0272)

$4.99

$

Usually ships in 3-6 days

0

55

MTD 936-0406

Washer - Flat

$6.99

$

In Stock, Qty 11

0

56

MTD n/a

Lubricant

$

$

Currently unavailable

57

MTD 938-0140

Screw - Shoulder
(Superseded to 738-0140)

$

$

Not available

67

MTD 748-0353A

Lift - Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

68

MTD 750-0547

Spacer

$5.99

$

In Stock, only 3 left!

0

71

MTD 750-0909

Spacer

$9.49

$

Usually ships in 3-6 days

0

72

MTD 750-0995

Spacer

$16.99

$

Usually ships in 3-6 days

0

77

MTD 784-5639

Plate - Track Side

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

MTD 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

78

MTD 784-5642

Plate - Track Lockout

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

MTD 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5642-0721

PLATE-TRACK LOCKOU - SEARS RED (0721)

$

$

Not available

MTD 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

MTD 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

83

MTD 717-1211B

Gear Ring

$

$

Not available

84

MTD 717-1209A

Gear 12-Tooth

$4.99

$

Usually ships in 3-6 days

0

85

MTD 717-1210A

Gear 18-Tooth

$8.99

$

In Stock, only 3 left!

0

86

MTD 741-0542

Pin Dowel

$11.99

$

Usually ships in 3-6 days

0

87

MTD 918-0576A

Carrier

$224.99

$

Usually ships in 3-6 days

0
