SC 100 (11A-A92J710) - Cub Cadet Walk-Behind Mower (2014) General Assembly Parts Diagram

Walk-Behind Mower

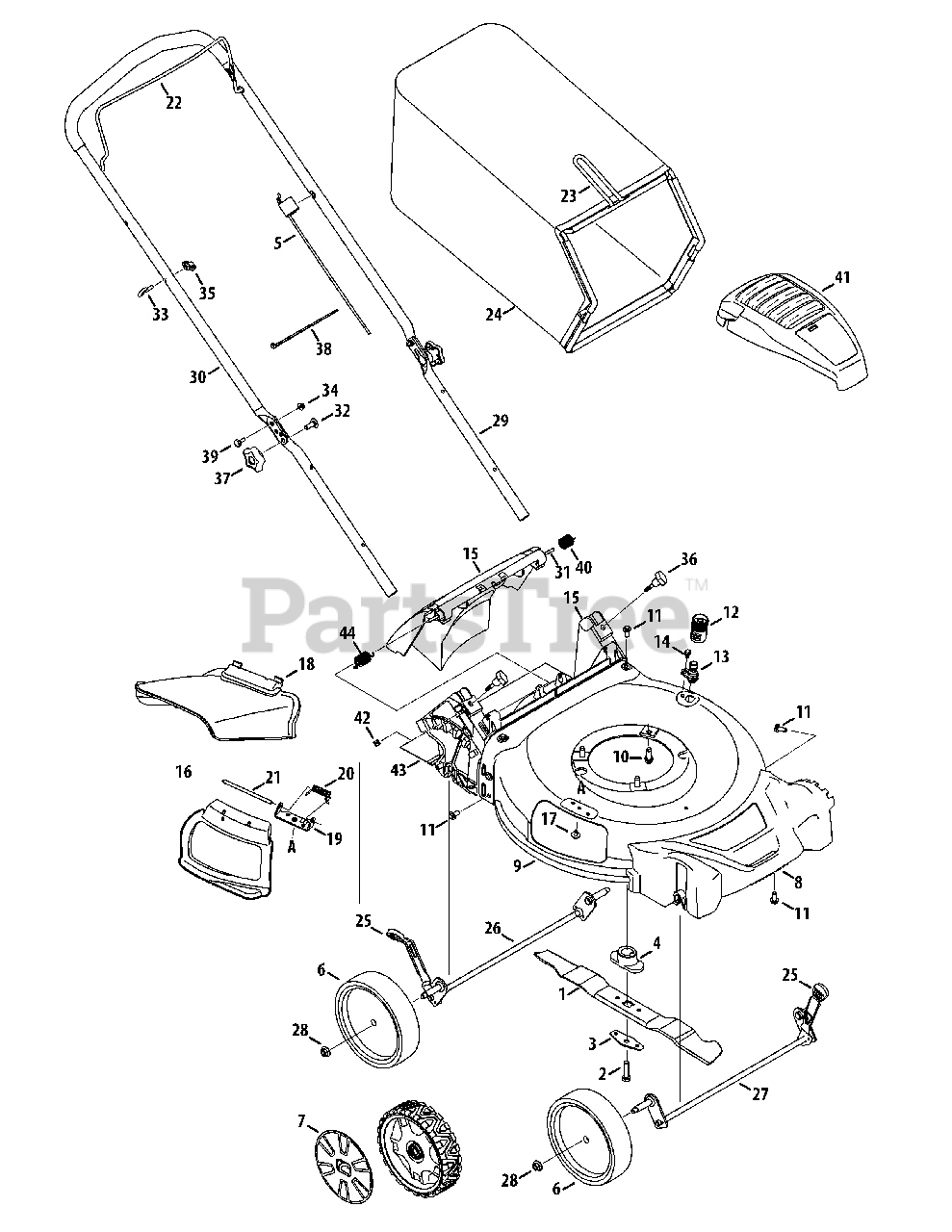

General Assembly Parts Diagram

  • Title

1

Cub Cadet 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 748-04096

Blade Adapter

$21.99

$

In Stock, Qty 20+

0

5

Cub Cadet 946-04703A

Control Cable

$19.99

$

In Stock, Qty 20+

0

6

Cub Cadet 634-04659

Wheel, 8 x2

$29.99

$

In Stock, Qty 19

0

7

Cub Cadet 731-08570

Hubcap

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 731-09258

Front Cover
(Superseded to 731-09258A)

$39.99

$

In Stock, only 2 left!

0

9

Cub Cadet 787-01874B-4021

21" Deck
(Superseded to 787-01874C-4021)

$133.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04683A

Screw, tt, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 15

0

11

Cub Cadet 710-04995A

Screw, 5/16-14 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

13

Cub Cadet 731-07487

Water Nozzle

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-04278

Scr., Shldr., 1/4-20 x .50

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

$51.99

$

In Stock, only 2 left!

0

16

Cub Cadet 987-02516A

Mulch Plug (Incl. 19-21)

$19.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-05073

Screw

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-07131

Side Discharge Chute

$14.99

$

In Stock, Qty 20+

0

19

Cub Cadet 787-01779

Chute Deflector Bracket

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 732-1014C

Torsion Spring

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 931-05119

Blade Control
(Superseded to 931-05119A)

$43.99

$

In Stock, only 2 left!

0

23

Cub Cadet 647-04271-0637

Grass Catcher Frame

$38.99

$

In Stock, Qty 20+

0

24

Cub Cadet 764-04082A

Grass Bag - Black
(Superseded to 764-04082D)

$44.99

$

In Stock, Qty 11

0

24

Cub Cadet 964-05007

Grass Bag - Signature Cut Series
(Superseded to 964-05007A)

$50.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 720-05014

Adjustment Knob

$3.99

$

In Stock, Qty 9

0

26

Cub Cadet 911-04142A

Rear Axle Assembly
(Superseded to 611-04142A)

$29.99

$

In Stock, Qty 20+

0

27

Cub Cadet 911-05022

Front Axle Assembly
(Superseded to 611Z05022)

$27.99

$

In Stock, only 1 left!

0

28

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.49

$

In Stock, Qty 20+

0

30

Cub Cadet 749-04682A

Upper Handle

Variations

Cub Cadet 749-04682A-0637

Upper Handle, Ergonomic - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$47.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-05183

Pivot Rod

$3.99

$

In Stock, only 1 left!

0

32

Cub Cadet 710-04998

Carriage Screw ,5/16-18

$5.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 13

0

34

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 720-05066

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 720-05009

Star Knob

$4.49

$

In Stock, Qty 19

0

38

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

39

Cub Cadet 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 732-05062A

Torsion Spring - LH

$4.99

$

In Stock, only 1 left!

0

41

Cub Cadet 731-09094A

Engine Shroud
(Superseded to 731-09094B)

$24.99

$

In Stock, Qty 5

0

41

Cub Cadet 710-04509

Screw, #10-16 X 1.25

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, Qty 20+

0

43

Cub Cadet 731-07203

Trail Shield

$9.99

$

In Stock, Qty 20+

0

44

Cub Cadet 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$4.99

$

Usually ships in 3-6 days

0
