SC 621 (12A-969D100) - Cub Cadet Walk-Behind Mower (1997) Handle Assembly Parts Diagram

Walk-Behind Mower

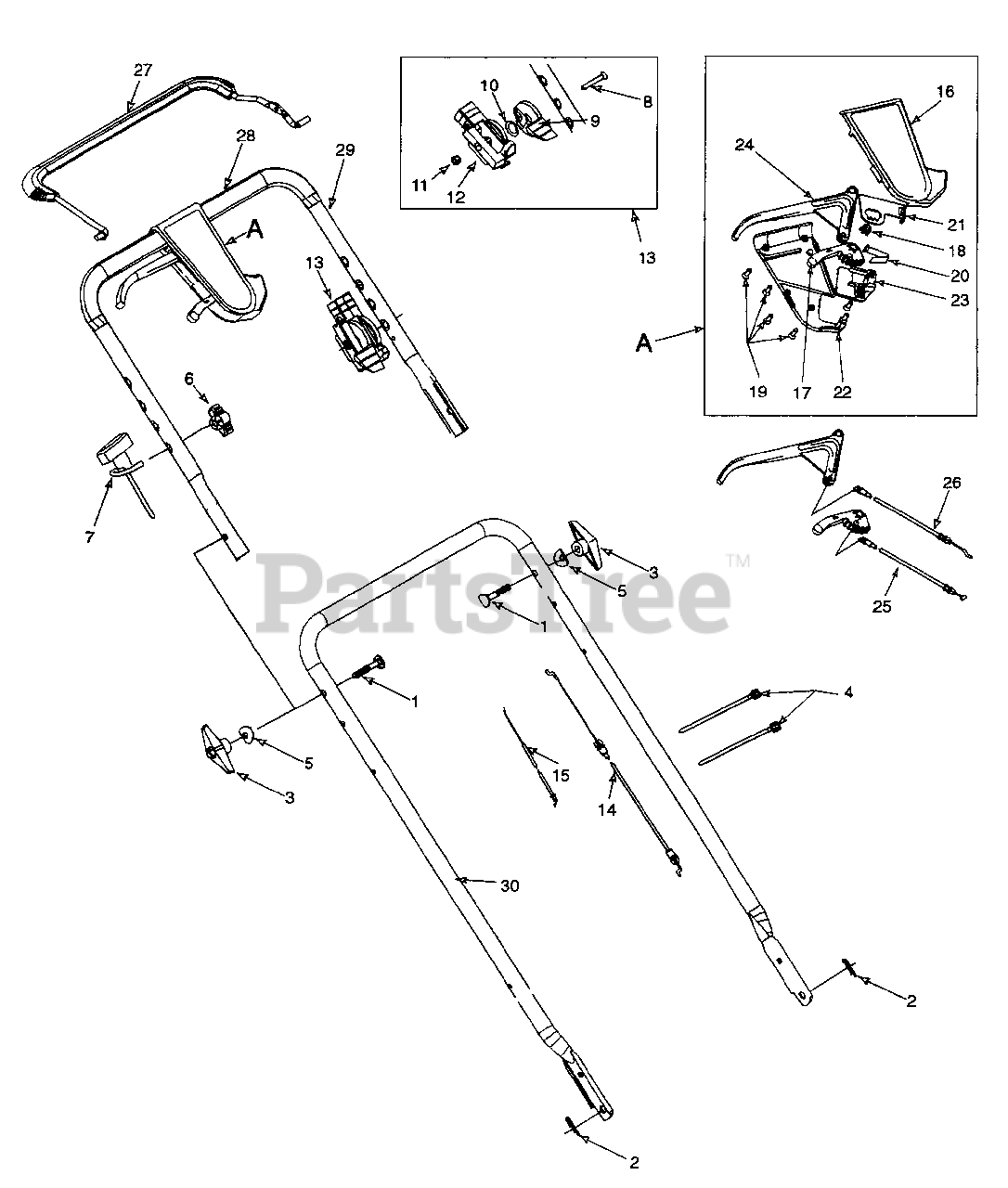

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 710-1174

Bolt Cur. Carr. 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0241

Knob Ass'y Wingnut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 720-0279

Knob Handle ERS - 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1205

Rope Guide Eyebolt

$3.99

$

In Stock, Qty 13

0

8

Cub Cadet 710-0605

Screw 1/4-20 x 1.81

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, Qty 9

0

10

Cub Cadet 736-0501

Spring Wash. Curved
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0324

Nut 1/4-20 Top locknut Insert

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 646-0875

Housing, Throttle
(Superseded to 946-0875)

$9.49

$

In Stock, Qty 13

0

13

Cub Cadet 811-00303

Throttle Control
(Superseded to 811-0185)

Note: (Includes 8, 9, 10, 11 & 12)

$36.99

$

In Stock, Qty 8

0

14

Cub Cadet 746-0912

Control Cable 44" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 4 left!

0

15

Cub Cadet 746-0841

Cable Throttle 60" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, Qty 5

0

16

Cub Cadet 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

Cub Cadet 731-0924

6 Speed Shift Lever

$

$

Not available

18

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-0841

C-Sunk Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, Qty 5

0

26

Cub Cadet 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, Qty 6

0

27

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Req'd.)

$7.49

$

In Stock, Qty 6

0

29

Cub Cadet 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

Cub Cadet 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 6

0

$50.99

$

In Stock, Qty 6

0
