SC 621 (12B-999I100) - Cub Cadet Walk-Behind Mower Engine (2001) Starter & Gaskets Parts Diagram

Walk-Behind Mower Engine

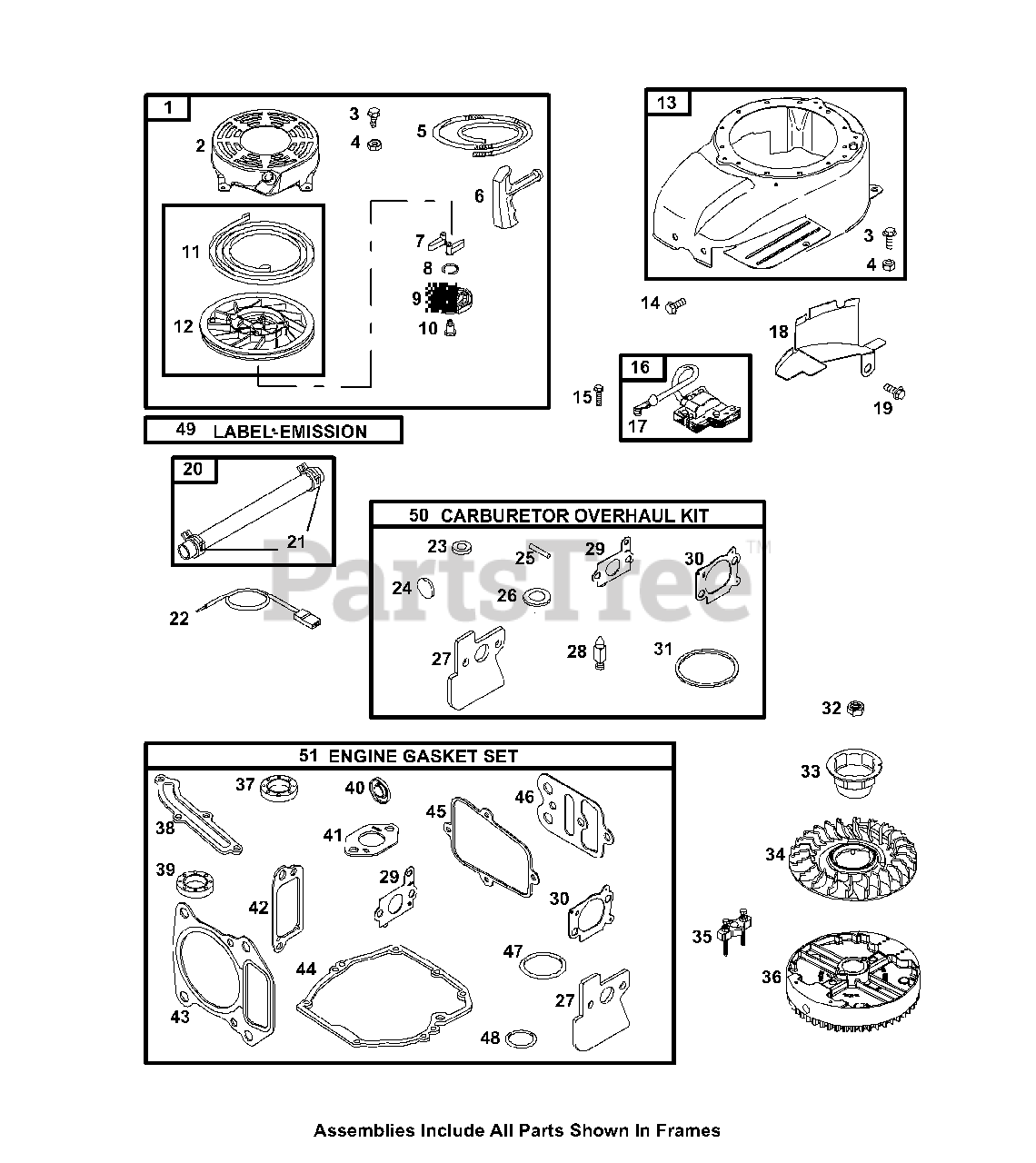

Starter & Gaskets Parts Diagram

  • Title

1

Cub Cadet BS-497680

Starter-Rewind

$49.99

$

In Stock, only 3 left!

0

2

Cub Cadet BS-691421

Housing Rewind-Starter

$64.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-690837

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 18

0

4

Cub Cadet BS-690800

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-692259

Rope-Starter (Cut to Required Lgth.)
(Superseded to BS-697316)

$5.99

$

In Stock, Qty 10

0

6

Cub Cadet BS-281434

Grip-Starter Rope
(Superseded to BS-281434S)

$3.99

$

In Stock, Qty 10

0

7

Cub Cadet BS-281505

Ratchet-Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, Qty 7

0

9

Cub Cadet BS-281503

Plate-Pawl Friction
(Superseded to BS-692299)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94943

Screw (Pawl Friction Plate)
(Superseded to BS-691696)

$11.99

$

In Stock, only 4 left!

0

11

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, only 2 left!

0

12

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-695976

Housing-Blower

$58.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-690960

Screw (Blower Housing)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 17

0

16

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-493880

Terminal-Sparkplug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-694086

Guard-Flywheel
(Superseded to BS-793756)

$10.99

$

In Stock, only 4 left!

0

19

Cub Cadet BS-691108

Screw (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-691050

Line-Fuel (Cut to Required Length)
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 13

0

21

Cub Cadet BS-95162

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692390

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-691321

Seal-Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet BS-694468

Plug-Welch

$4.49

$

In Stock, Qty 7

0

25

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

27

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 2 left!

0

28

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

29

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 13

0

33

Cub Cadet BS-691219

Cup-Flywheel
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 2 left!

0

36

Cub Cadet BS-692452

Flywheel
(Superseded to BS-697610)

$199.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 16

0

38

Cub Cadet BS-691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

39

Cub Cadet BS-299819

Oil Seal (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

40

Cub Cadet BS-692044

Seal-Valve

$

$

Not available

41

Cub Cadet BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 10

0

42

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 11

0

43

Cub Cadet BS-695166

Gasket-Cylinder Head
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 9

0

44

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 8

0

46

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 20+

0

47

Cub Cadet BS-691031

Seal-O RIng (Dipstick)

$5.49

$

In Stock, Qty 10

0

48

Cub Cadet BS-692296

Seal-O Ring (Dipstick Tube)

$4.99

$

In Stock, Qty 6

0

49

Cub Cadet BS-695109

Label-Emission

$3.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-692703

Kit-Carburetor Overhaul
(Superseded to BS-792383)

$28.99

$

In Stock, Qty 8

0

51

Cub Cadet BS-694090

Gasket Set-Engine
(Superseded to BS-795442)

$90.99

$

Usually ships in 2-12 days

0
