Sc2400 (54AGA4NO727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Cylinder Head & Vavle Cover Parts Diagram

Sc Series Compact Tractor

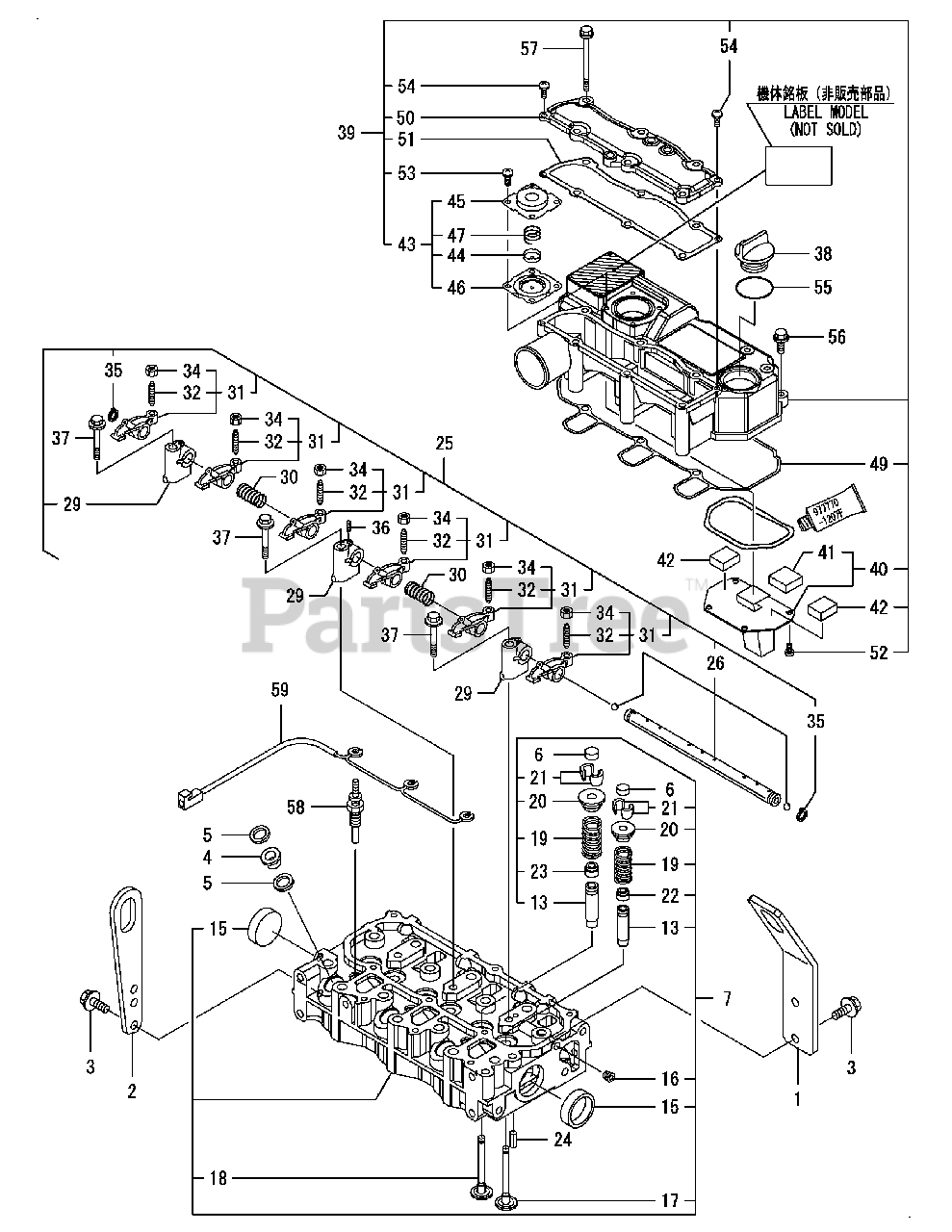

Engine Cylinder Head & Vavle Cover Parts Diagram

  • Title
1

Cub Cadet CY-119517-07900

LIFTER, ENGINE

$

$

Not available

2

Cub Cadet CY-129900-07900

LIFTER, ENGINE

$

$

Not available

3

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

4

Cub Cadet CY-129901-11450

PROTECTER, NOZZLE

$

$

Not available

5

Cub Cadet CY-119600-11460

GASKET, NOZZLE

$

$

Not available

$

$

Not available

7

Cub Cadet CY-119517-11740

HEAD ASSY, CYLINDER

$

$

Not available

13

$

$

Not available

15

Cub Cadet CY-119285-11990

PLUG 35
(Superseded to YA-119285-11990)

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet CY-23876-005000

PLUG PT 1/16,SCREW

$

$

Not available

17

$

$

Not available

18

Cub Cadet CY-119515-11110

VALVE, EXHAUST

$

$

Not available

19

$

$

Not available

20

Cub Cadet CY-129508-11180

RETAINER, SPRING

$

$

Not available

21

$

$

Not available

22

Cub Cadet CY-CY-119717-11340

SEAL, VALVE STEM

$

$

Currently unavailable

23

Cub Cadet CY-CY-119717-11350

SEAL, VALVE STEM

$

$

Currently unavailable

24

Cub Cadet CY-22351-060012

SPRING PIN 6X12

$

$

Not available

25

Cub Cadet CY-119515-11200

SUPPORT ASSY, ARM

$

$

Not available

26

Cub Cadet CY-119515-11240

SHAFT ASSY, ROCKER

$

$

Not available

29

Cub Cadet CY-119717-11260

SUPPORT, ROCKER ARM

$

$

Not available

30

$

$

Not available

31

Cub Cadet CY-119717-11650

ARM ASSY, ROCKER

$

$

Not available

32

$

$

Not available

34

$

$

Not available

$

$

Not available

36

$

$

Not available

37

Cub Cadet CY-26106-080402

BOLT M 8X 40 PLATED

$

$

Not available

38

$

$

Not available

39

Cub Cadet CY-119515-11380

BONNET ASSY, HEAD

$

$

Not available

40

$

$

Not available

41

Cub Cadet CY-119717-03070

BAFFLE, BREATHER

$

$

Not available

42

Cub Cadet CY-119717-03070

BAFFLE, BREATHER

$

$

Not available

43

Cub Cadet N/A

DIAPHRAGM ASSY

$

$

Currently unavailable

44

Cub Cadet CY-119802-03110

PLATE, DIAPHRAGM

$

$

Not available

45

Cub Cadet CY-119802-03121

COVER, DIAPHRAGM

$

$

Not available

$

$

Not available

47

Cub Cadet CY-119802-03141

SPRING, DIAPHRAGM

$

$

Not available

49

Cub Cadet CY-119515-11310

GASKET, BONNET

$

$

Not available

50

$

$

Not available

51

Cub Cadet CY-119515-11330

GASKET BONNET COVER

$

$

Not available

52

Cub Cadet CY-22857-500100

SCREW 5X10,TAPPING

$

$

Not available

53

Cub Cadet CY-22857-500100

SCREW 5X10,TAPPING

$

$

Not available

$

$

Not available

55

Cub Cadet CY-24311-000320

O-RING 1A P-32.0

$

$

Not available

56

Cub Cadet CY-26106-060202

BOLT M 6X 20 PLATED

$

$

Not available

57

Cub Cadet CY-26106-060752

BOLT M 6X 75 PLATED

$

$

Not available

$

$

Not available

59

Cub Cadet CY-119717-77820

CONNECTOR, GLOW PLUG

$

$

Not available
