SCZII61V-38FX-EFI - Scag Cheetah II 61" Zero-Turn Mower, 38hp Kawasaki (SN: S8200000 - S8299999) SCZII ENGINE & ATTACHING PARTS Parts Diagram

Cheetah II 61" Zero-Turn Mower, 38hp Kawasaki

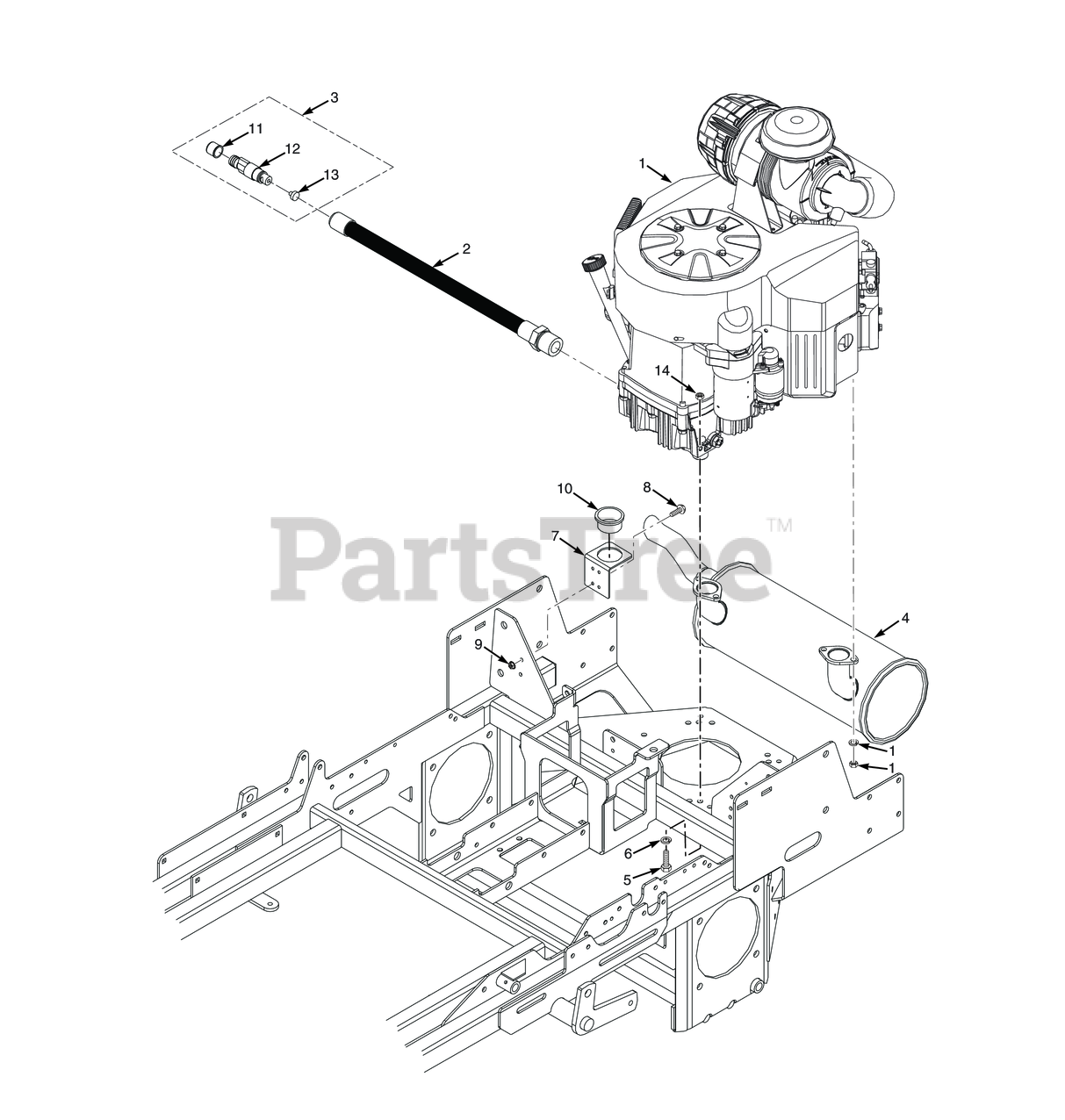

SCZII ENGINE & ATTACHING PARTS Parts Diagram

  • Title

1

Scag 486726

Engine, Kawasaki 38FX-EFI (FX1000)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 486516

Engine, Briggs & Stratton 37 BV-EFI (61E8770002J1)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

2

Scag 484581

Hose Assembly, Engine Oil Drain - Kawasaki FS/FX

$61.99

$

In Stock, only 1 left!

0

Scag 484599

Hose, OIl Drain, Briggs & Stratton

$62.99

$

Usually ships in 2-12 days

0

3

Scag 484583

Valve Assembly, Oil Drain

$19.99

$

In Stock, only 1 left!

0

4

Scag 486648

Muffler, Kawasaki - FX921

$196.99

$

Usually ships in 2-12 days

0

Scag 486660

Pipe, Muffler Extension - FX921

Note: Not Shown

$15.99

$

Usually ships in 2-12 days

0

Scag 48633

Clamp, Muffler (Clamp Only)

Note: Not Shown

$6.49

$

In Stock, only 2 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 14

0

6

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

7

Scag 425975

Bracket, Oil Drain Hose

$16.99

$

Usually ships in 2-12 days

0

8

Scag 04010-32

SCR,#8-32 X .625 HX WSHR HD SLOTTED

$0.99

$

In Stock, Qty 9

0

9

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 484585

O-Ring

$0.99

$

In Stock, Qty 5

0

12

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 10

0

13

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0
