SE 26 (59AA402-195) - MTD Pro Stick Edger Handle, Shaft & Guard Parts Diagram

Pro Stick Edger

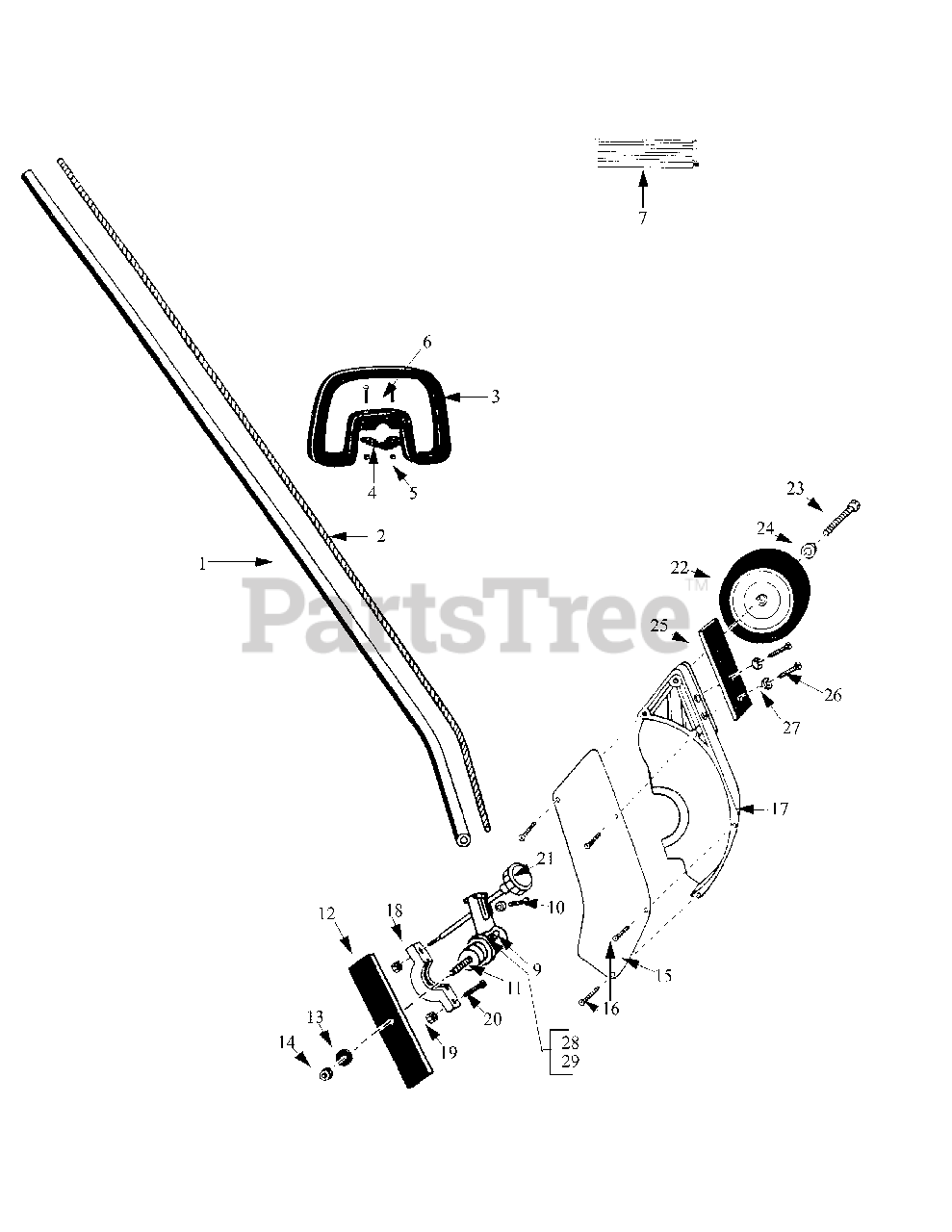

Handle, Shaft & Guard Parts Diagram

  • Title

1

MTD HF-217758H

Drive Shaft Housing

$

$

Not available

2

MTD HF-216196H

Flexible Drive Shaft

$

$

Not available

3

MTD HF-215806H

Handle

$

$

Not available

4

MTD HF-212960H

Handle Clamp

$

$

Not available

5

MTD HF-212670H

Nut, Nylock 1/4-20

$

$

Not available

6

MTD HF-215807H

Screw, 1/4-20x1-3/4

$

$

Not available

7

MTD HF-216040H

Grip

$

$

Not available

9

MTD HF-216140H

Gear Head Assembly

$

$

Not available

10

MTD HF-216305S

Screw Kit

$

$

Not available

11

MTD HF-216149H

Cup Washer

$

$

Not available

12

MTD HF-216152H

Blade

$

$

Not available

13

MTD HF-209301H

Washer, Blade

$

$

Not available

14

MTD HF-209313H

L.H. Nut, 10mm

$

$

Not available

15

MTD HF-216153H

Side Plate

$

$

Not available

16

MTD HF-216157H

Screw, #8-32X1/2

$

$

Not available

17

MTD HF-216154H

Blade Guard

$

$

Not available

18

MTD HF-216161H

Blade Guard Bottom

$

$

Not available

19

MTD HF-212670H

Nut, Nylock 1/4-20

$

$

Not available

20

MTD HF-205939H

Socket Head Cap Screw 1/4-20x1"

$

$

Not available

21

MTD HF-216209H

Adjustment Knob

$

$

Not available

22

MTD HF-216151H

Wheel

$

$

Not available

23

MTD HF-216158H

Bolt, shoulder

$

$

Not available

24

MTD HF-211325H

Washer

$

$

Not available

25

MTD HF-216210H

Debris Flap

Note: NLA

$

$

Not available

26

MTD HF-216342H

Screw #10-24X5/8

$

$

Not available

27

MTD HF-216227H

Washer No. 10

$

$

Not available

28

MTD HF-216331H

Grease Plug

$

$

Not available

29

MTD HF-216329H

Hex Head Bolt-grease plug

$

$

Not available

MTD 723-0400

Safety Goggles

Note: (not shown)

$26.99

$

Usually ships in 3-6 days
