SG200HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Belt Drive Assembly Parts Diagram

Stump Grinder, Honda

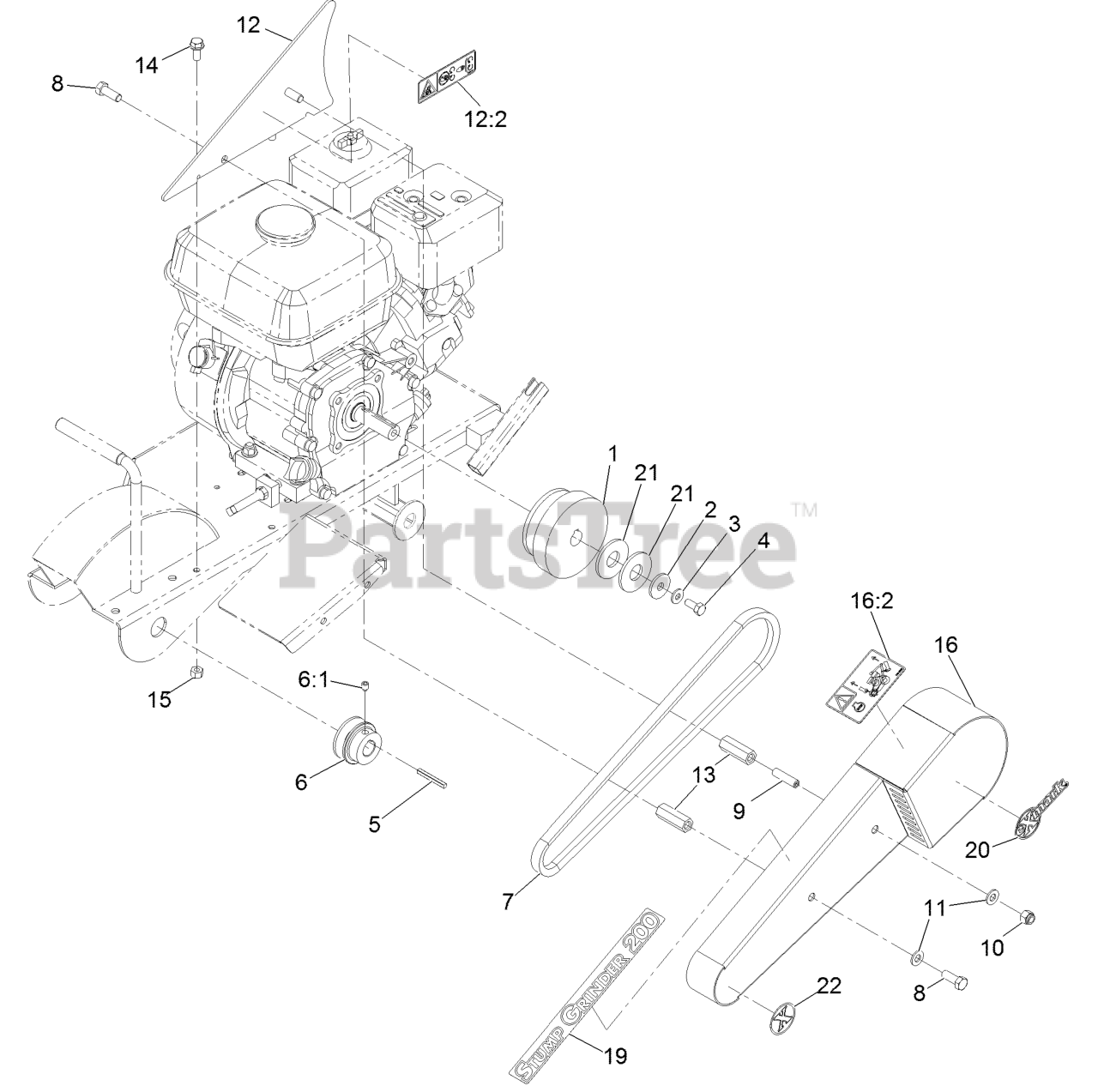

Belt Drive Assembly Parts Diagram

  • Title

1

Exmark 120-1215

CLUTCH-CENTRIFUGAL

$465.99

$

Usually ships in 3-6 days

0

2

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 18

0

3

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 3210-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 7-0036

KEY-SQUARE

$

$

Not available

6

Exmark 120-1303

PULLEY-FRONT

$20.99

$

Usually ships in 3-6 days

0

6:1

Exmark 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 120-1374

136-4672
(Superseded to 136-4672)

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3247-8

SCREW-SET, HSH

$13.99

$

Usually ships in 3-6 days

0

10

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

12

Exmark 121-4411

PLATE-GUARD, INNER

$52.99

$

Usually ships in 3-6 days

0

12:2

Exmark 117-4979

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

13

Exmark 120-1332

SPACER-GUARD, BELT

$20.99

$

Usually ships in 3-6 days

0

14

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

15

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 121-4412

BELT GUARD ASM

$165.99

$

Usually ships in 3-6 days

0

16:2

Exmark 119-4692

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 116-6957

DECAL-STUMP GRINDER 200

$

$

Not available

20

Exmark 103-8845

DECAL,EXMARK

$8.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 6

0

22

Exmark 116-6951

DECAL-EXMARK X-LOGO-1.63

$

$

Not available
