SHR-2100 - Echo Power Sprayer Engine, Crankcase Parts Diagram

Power Sprayer

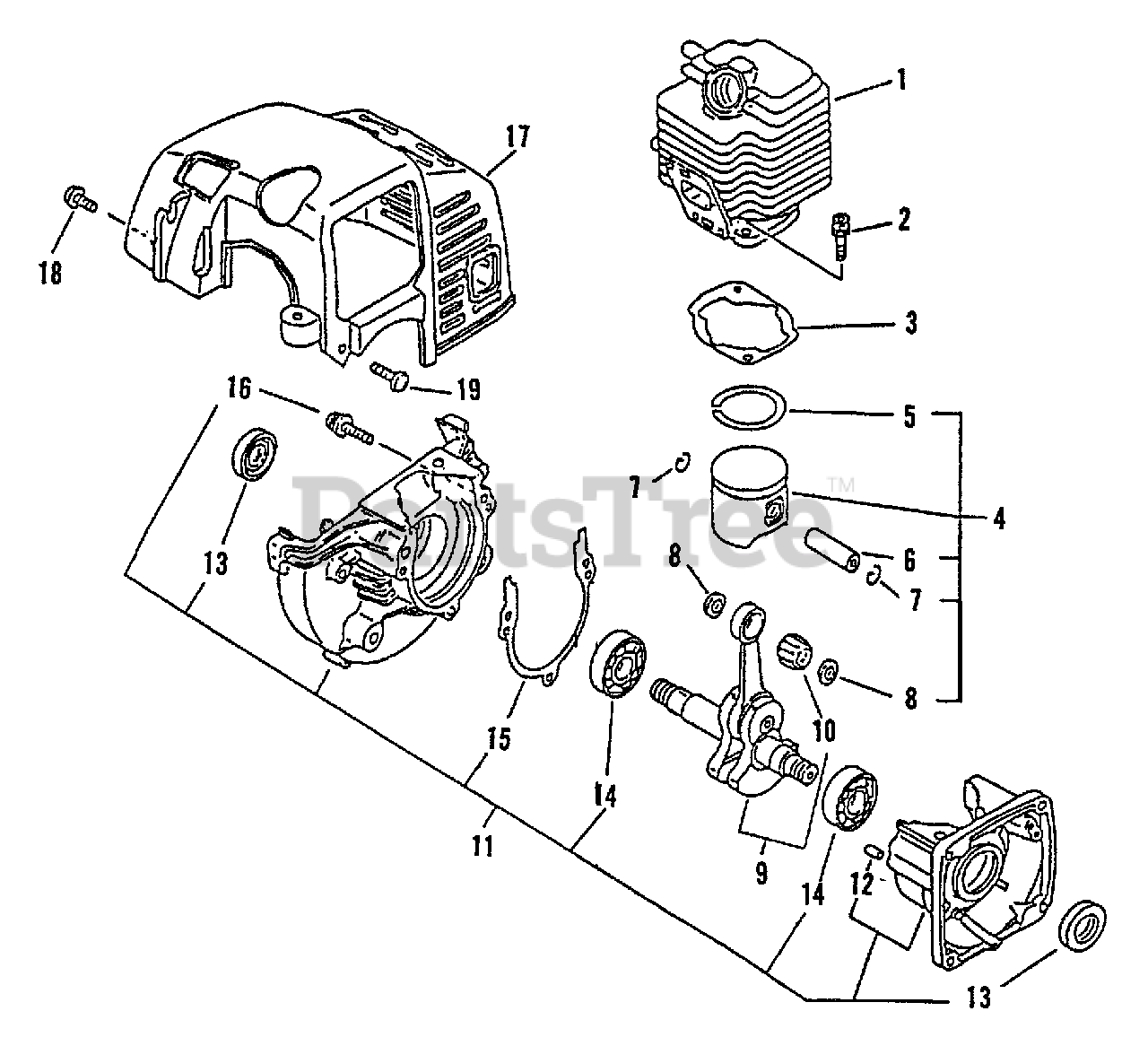

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$126.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit 88900042031

$3.99

$

In Stock, Qty 20+

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes items 5-8

$65.99

$

Usually ships in 2-4 days

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

9

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

Note: Includes ITEM 10

$147.99

$

Usually ships in 2-4 days

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-16

$131.99

$

Usually ships in 2-4 days

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

15

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900042031

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 10151413210

COVER, ENGINE
(Superseded to 10151413211)

$28.99

$

Usually ships in 2-4 days

0

18

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1017

SHORT BLOCK -- SB1017

$205.99

$

Usually ships in 2-4 days

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

Note: Engine Repower

$20.99

$

In Stock, Qty 20+

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: Engine Repower; Includes the following items

$16.99

$

In Stock, only 4 left!

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Engine Repower

$3.99

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

Note: Engine Repower

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: Engine Repower

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: Engine Repower

$2.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: Engine Repower

$0.99

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: Engine Repower

$2.49

$

In Stock, Qty 20+

0

Echo 61041404560

GASKET, GEAR CASE

Note: Engine Repower

$1.49

$

In Stock, only 3 left!
