SHR-2100 - Echo Power Sprayer Pump Assy, Throttle, Harness Assy Parts Diagram

Power Sprayer

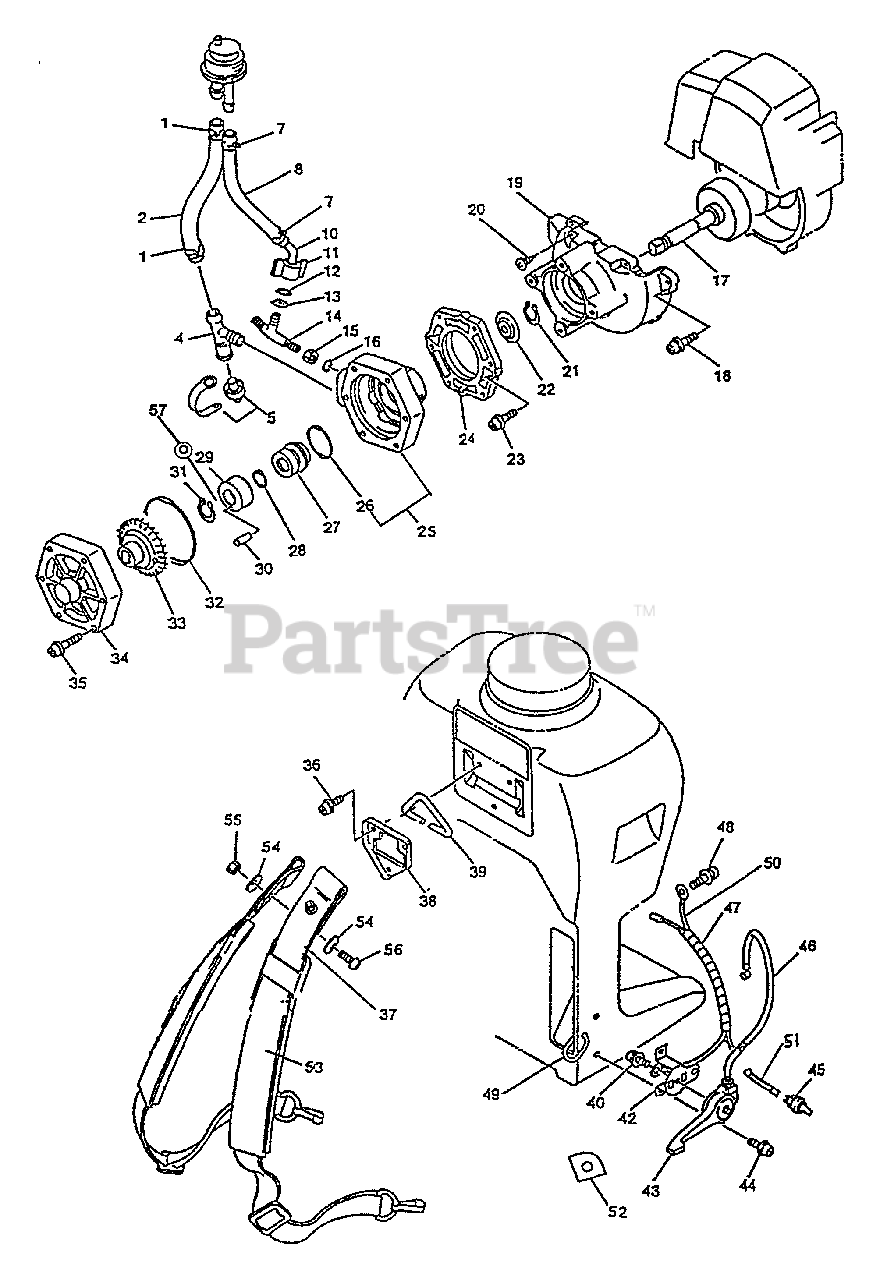

Pump Assy, Throttle, Harness Assy Parts Diagram

  • Title

1

Echo 37031810210

CLAMP

$1.49

$

Usually ships in 2-4 days

0

2

Echo 38201212710

HOSE, FLUID

$11.99

$

Usually ships in 2-4 days

0

4

Echo 38201511610

NIPPLE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 38200411710

DRAIN PLUG KIT
(Superseded to P021014800)

$5.49

$

Usually ships in 2-4 days

0

7

Echo 38602010511

CLIP - 10

$0.99

$

Usually ships in 2-4 days

0

8

Echo 38601012710

HOSE, FLUID

$17.99

$

Usually ships in 2-4 days

0

10

Echo 38601210511

JOINT, BYPASS

$5.99

$

Usually ships in 2-4 days

0

11

Echo 38601510510

WINGNUT
(Superseded to 38601510511)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 38601910510

GASKET, BYPASS NOZZLE

$0.99

$

Usually ships in 2-4 days

0

13

Echo 38601810510

WASHER

$0.99

$

Usually ships in 2-4 days

0

14

Echo 38401311610

NIPPLE, OUTLET PUMP
(Superseded to 38401311611)

$25.99

$

Usually ships in 2-4 days

0

15

Echo 38402910510

NUT

$3.49

$

Usually ships in 2-4 days

0

16

Echo 90072000010

O-RING - 10

$1.49

$

Usually ships in 2-4 days

0

17

Echo 17500511810

DRUM, CLUTCH

$47.99

$

Usually ships in 2-4 days

0

18

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

19

Echo 10150713210

CASE, FAN
(Superseded to 10150713212)

$81.99

$

Usually ships in 2-4 days

0

20

Echo 90024504016

SCREW - 4X16

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 40511410510

PLATE, SEAL

$1.99

$

In Stock, only 1 left!

0

23

Echo 90024506016

SCREW - 6X16

$0.99

$

Usually ships in 2-4 days

0

24

Echo 10020911910

BRACKET, PUMP

$18.99

$

Usually ships in 2-4 days

0

25

Echo 40521010512

CASE, PUMP

Note: Includes ITEM 26

$77.99

$

Usually ships in 2-4 days

0

26

Echo 90072400029

O-RING - 29

$2.99

$

In Stock, only 2 left!

0

27

Echo 40510011410

SEAL

$87.99

$

Usually ships in 2-4 days

0

28

Echo 90072430010

O-RING - 10

$3.49

$

In Stock, only 1 left!

0

29

Echo 40510311411

SEAL

Note: Includes items 30 & 57

$21.99

$

Usually ships in 2-4 days

0

30

Echo 40511310510

PIN

$1.99

$

Usually ships in 2-4 days

0

31

Echo 90070400012

RING, RETAINING - 12

$1.99

$

In Stock, only 3 left!

0

32

Echo 40521210510

O-RING
(Superseded to 90072430067)

$11.99

$

In Stock, only 1 left!

0

33

Echo 40511010512

IMPELLER

$94.99

$

Usually ships in 2-4 days

0

34

Echo 40521110511

LID, PUMP

$43.99

$

In Stock, only 1 left!

0

35

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

36

Echo 90022006010

SCREW - 6X10

$0.99

$

In Stock, only 3 left!

0

37

Echo 30030013210

STRAP, BACKPACK
(Superseded to 30030213210)

$52.99

$

Usually ships in 2-4 days

0

38

Echo 30061411610

BRACKET, HANGER

$4.49

$

In Stock, only 1 left!

0

39

Echo 30061011610

HANGER

$11.99

$

Usually ships in 2-4 days

0

40

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

42

Echo 17812313210

BRACKET, THROTTLE
(Superseded to 17812313211)

$15.99

$

Usually ships in 2-4 days

0

43

Echo 17800012710

LEVER, THROTTLE

$29.99

$

In Stock, only 1 left!

0

44

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

45

Echo 16340010610

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

46

Echo 17800113210

CABLE, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

47

Echo 13201511610

WRAP, SPIRAL
(Superseded to 13201513210)

$6.49

$

Usually ships in 2-4 days

0

48

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

49

Echo 30031901611

RING, STRAP

$0.99

$

In Stock, Qty 6

0

50

Echo 16201011612

LEAD - GROUND

$5.99

$

Usually ships in 2-4 days

0

51

Echo 16201413210

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

52

Echo 89015713210

LABEL - SWITCH

$2.49

$

Usually ships in 2-4 days

0

53

Echo 30032213210

PAD, STRAP
(Superseded to P050010700)

$25.99

$

Usually ships in 2-4 days

0

54

Echo 30032803210

WASHER

$1.49

$

Usually ships in 2-4 days

0

55

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

56

Echo 90021605014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

57

Echo 40011111410

WASHER

$2.49

$

Usually ships in 2-4 days

0
