SLTX 1050 (13AQ92AP010) - Cub Cadet 50" Lawn Tractor (2009) Kohler SV730-0011 Fuel System Parts Diagram

50" Lawn Tractor

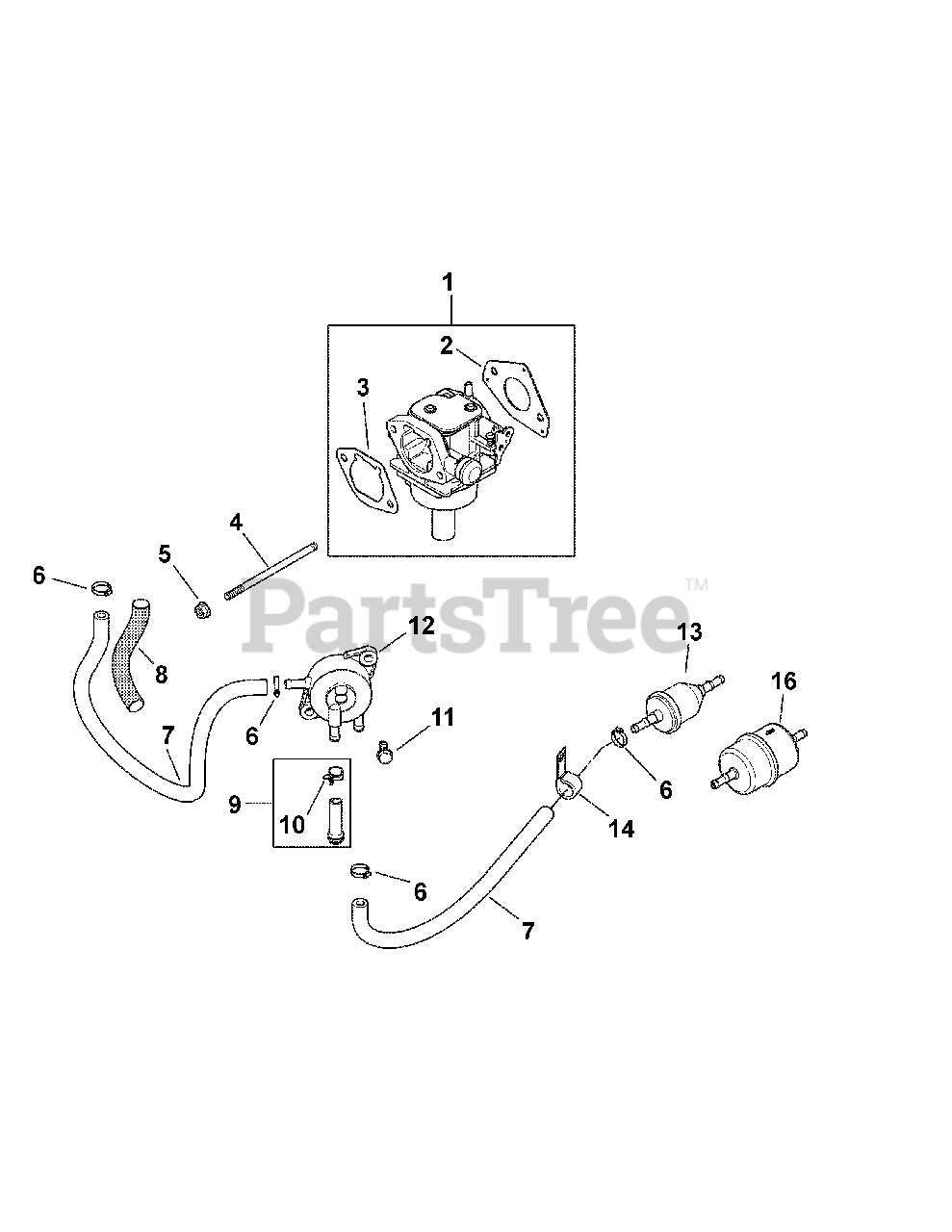

Kohler SV730-0011 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-32-853-12-S

Carburetor Kit, 22mm KEIHIN

Note: (Inc. 2 & 3)

$351.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14-S

Air Cleaner Base Gasket

$

$

Currently unavailable

4

Cub Cadet KH-M-629105-S

Stud, M6 x 1.0 x 106
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Flg. Nut, M6 x 1.0

$4.49

$

In Stock, Qty 14

0

6

Cub Cadet KH-25-237-14-S

Hose Clamp, 1/2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

10

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

11

Cub Cadet KH-24-086-12-S

Tap Screw, M6 x 1.7 x 18

$

$

Currently unavailable

12

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

13

Cub Cadet KH-25-050-22-S

Fuel Filter
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-47-154-01-S

Cable Clip

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

Cub Cadet KH-24-757-36-S

Choke Repair Service Kit

Note: Not Shown (Inc. 2 & 3)

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

Gasket Repair Service Kit

Note: Not Shown (Inc. 2 & 3)

$32.99

$

In Stock, Qty 10

0

Cub Cadet KH-24-757-44-S

Float Kit

Note: Not Shown (Inc. 2 & 3)

$93.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Solenoid Valve Repair Kit

Note: Not Shown (Inc. 2 & 3)

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Overhaul Repair Kit

Note: Not Shown (Inc. 2 & 3)

$137.99

$

In Stock, only 1 left!

0
