SP 43-W (866018) - Briggs & Stratton Brush Cutter (2010) Gearbox & Blade Service Parts (866014_866018) Parts Diagram

Brush Cutter

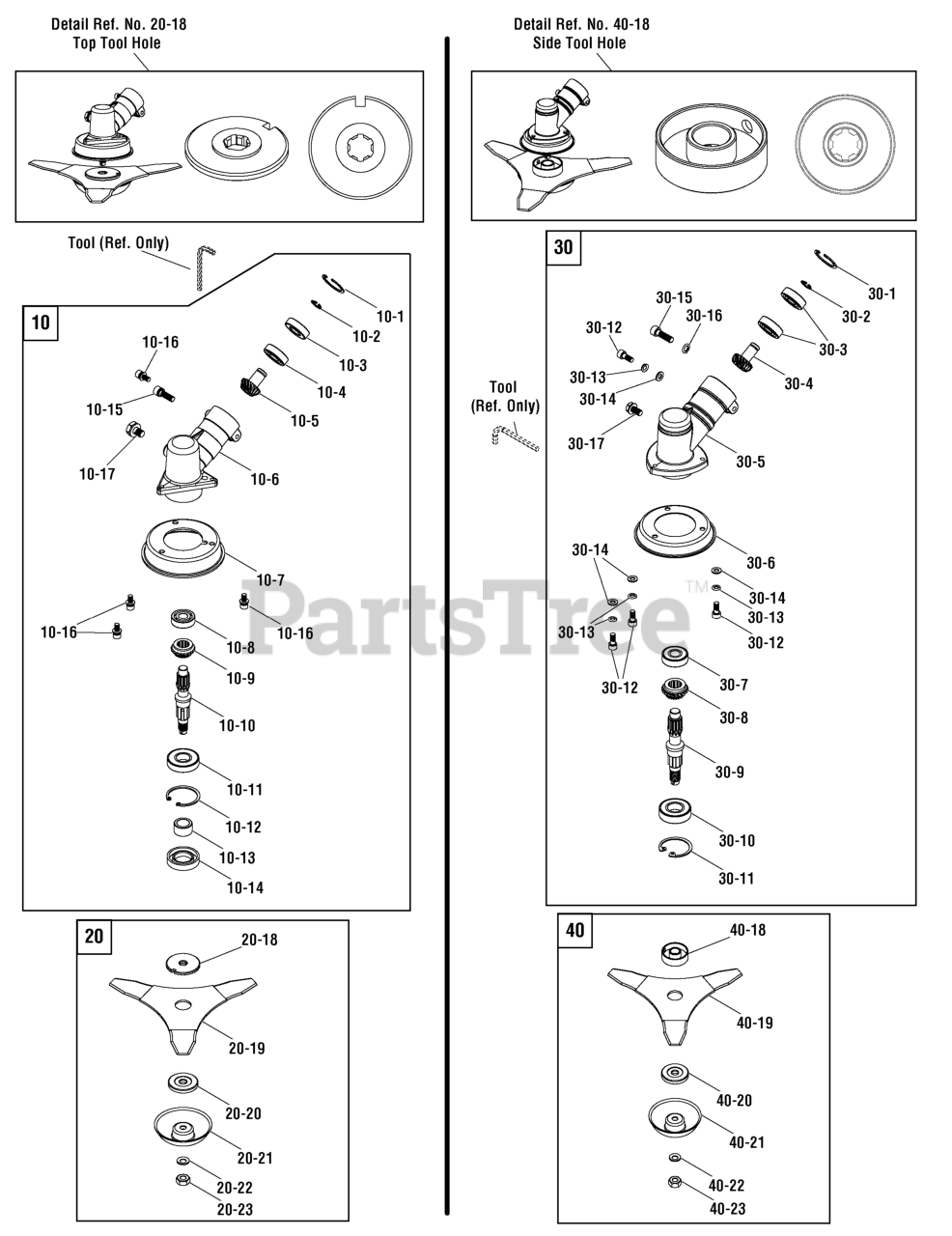

Gearbox & Blade Service Parts (866014_866018) Parts Diagram

  • Title

10

Murray 702079

KIT, GEARBOX (Top lock hole)

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9, 10-10, 10-11, 10-12, 10-13, 10-14, 10-15, 10-16 & 10-17)

$

$

Currently unavailable

10-1

RING, Stop, 18

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-2

RING, Stop, 12

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-3

BEARING, 6001-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-4

BEARING, 6001/P6

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-5

Murray 702071

PINION

$12.99

$

Usually ships in 2-12 days

0

10-6

GEARBOX

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-7

Murray 700769

COVER, Blade

$6.49

$

Usually ships in 2-12 days

0

10-8

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-9

Murray 702072

GEAR

$17.99

$

Usually ships in 2-12 days

0

10-10

Murray 702073

SHAFT, Spline

$12.99

$

Usually ships in 2-12 days

0

10-11

BEARING, 6202-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-12

RING, Stop, 35

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-13

Murray 700770

SEAL, Oil

$3.99

$

Usually ships in 2-12 days

0

10-14

Murray 700771

SLEEVE, Spline

$4.49

$

Usually ships in 2-12 days

0

10-15

BOLT, M6 x 20

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-16

BOLT, M5 x 12

Note: (Not a serviceable part. Order Kit Ref. No 10)

$

$

Not available

10-17

Murray 701971

BOLT, M8 x 12

$3.49

$

Usually ships in 2-12 days

0

20

Murray 702105

KIT, BLADE

Note: (Includes Ref. Nos. 20-18, 20-19, 20-20, 20-21, 20-22 & 20-23)

$32.99

$

Usually ships in 2-12 days

0

20-18

Murray 700772

GASKET, Spline

$2.99

$

Usually ships in 2-12 days

0

20-19

Murray 701891

BLADE

$37.99

$

Usually ships in 2-12 days

0

20-20

Murray 700841

HOLDER

$9.99

$

Usually ships in 2-12 days

0

20-21

Murray 701901

PROTECTOR, Blade

$6.49

$

Usually ships in 2-12 days

0

20-22

Murray 700773

WASHER, Wave, 10

$3.49

$

Usually ships in 2-12 days

0

20-23

Murray 700397

NUT

$3.99

$

Usually ships in 2-12 days

0

30

Murray 702422

KIT, GEARBOX (Side lock hole)

Note: (Includes Ref. Nos. 30-1, 30-2, 30-3, 30-4, 30-5, 30-6, 30-7, 30-8, 30-9, 30-10, 30-11, 30-12, 30-13, 30-14, 30-15, 30-16 & 30-17)

$78.99

$

Usually ships in 2-12 days

0

30-1

RING, Stop, 26

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-2

RING, Stop, 10

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-3

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-4

Murray 702423

PINION

$15.99

$

Usually ships in 2-12 days

0

30-5

GEAR BOX

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-6

Murray 700393

COVER, Blade

$5.99

$

Usually ships in 2-12 days

0

30-7

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-8

Murray 702424

GEAR

$16.99

$

Usually ships in 2-12 days

0

30-9

Murray 702425

SHAFT, Spline

$11.99

$

Usually ships in 2-12 days

0

30-10

BEARING, 6202-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-11

RING, Stop, 32

Note: (Not a serviceable part. Order Kit Ref. No 30)

$

$

Not available

30-12

Murray 700399

BOLT, M5 x 12

$3.49

$

Usually ships in 2-12 days

0

30-13

Murray 700400

WASHER, Spring, 5

$2.99

$

Usually ships in 2-12 days

0

30-14

Murray 700401

WASHER, Flat, 5

$2.99

$

Usually ships in 2-12 days

0

30-15

Murray 700402

BOLT, M6 x 20

Note: (Not a serviceable part. Order Kit Ref. No 30)

$2.99

$

Usually ships in 2-12 days

0

30-16

Murray 700403

WASHER, Spring, 6

Note: (Not a serviceable part. Order Kit Ref. No 30)

$2.99

$

Usually ships in 2-12 days

0

30-17

Murray 700404

BOLT

$2.99

$

Usually ships in 2-12 days

0

40

Murray 702428

KIT, BLADE

Note: (Includes Ref. Nos. 40-18, 40-19, 40-20, 40-21, 40-22 & 40-23)

$56.99

$

Usually ships in 2-12 days

0

40-18

Murray 700395

GASKET, Spline

$6.49

$

Usually ships in 2-12 days

0

40-19

Murray 701891

BLADE

$37.99

$

Usually ships in 2-12 days

0

40-20

Murray 700841

HOLDER

$9.99

$

Usually ships in 2-12 days

0

40-21

Murray 701901

PROTECTOR, Blade

$6.49

$

Usually ships in 2-12 days

0

40-22

Murray 700773

WASHER, Wave, 10

$3.49

$

Usually ships in 2-12 days

0

40-23

Murray 700397

NUT

$3.99

$

Usually ships in 2-12 days

0
