SP 90 (1696845-00) (12BVC3BD707) - Snapper 21" Walk-Behind Mower, RWD Variable, 775 Series Briggs Handle Group Parts Diagram

21" Walk-Behind Mower, RWD Variable, 775 Series Briggs

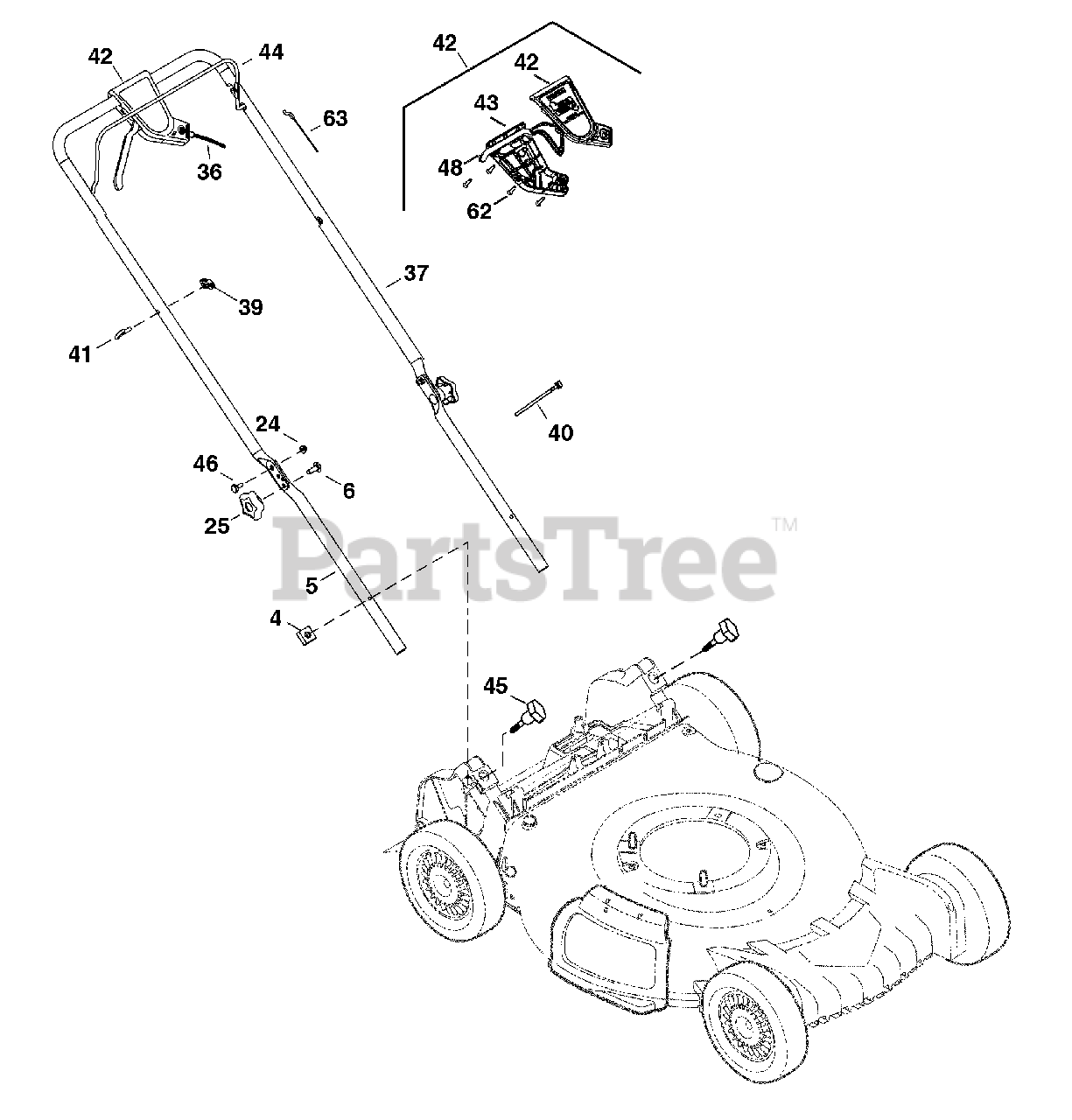

Handle Group Parts Diagram

  • Title

4

Snapper 703486

NUT, Square, 1/4-20

$10.99

$

In Stock, only 1 left!

0

5

Snapper 703530

HANDLE, Lower

$30.99

$

Usually ships in 2-12 days

0

6

Snapper 703483

BOLT, Carriage, 5/16-18 X 1, GR5

$3.99

$

In Stock, only 3 left!

0

24

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, only 3 left!

0

25

Snapper 1101453MA

KNOB, Handle, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 703563

CABLE, Control, Variable Speed

$56.99

$

In Stock, only 2 left!

0

37

Snapper 703531

HANDLE, Upper, Adjustable

$93.99

$

In Stock, Qty 6

0

39

Snapper 1101222MA

KNOB, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

40

Snapper 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

41

Snapper 703485

GUIDE, Rope

$6.99

$

Usually ships in 2-12 days

0

42

Snapper 703533

ASSEMBLY, Control Lever

$46.99

$

In Stock, only 1 left!

0

43

Snapper 772012

Control Cover Lower

Note: (Includes item #'s 43, 48 & 62)

$

$

Currently unavailable

48

Snapper 772013

Engagement Lever

$

$

Currently unavailable

62

Snapper 772010

SCREW, #10-16 X 1.00

$

$

Currently unavailable

44

Snapper 772011

Operator Bail Assembly

$

$

Currently unavailable

45

Snapper 707910

NUT, Wing

$13.99

$

Usually ships in 2-12 days

0

46

Snapper 703522

BOLT, Shoulder, 1/4-20

$8.99

$

In Stock, Qty 11

0

63

Snapper 703561

CABLE, OPC Engine Brake

$28.99

$

In Stock, Qty 6

0
