SPA 481 (7084622) - Snapper 48" Pro Mower Deck Assembly 48" & 61" DECK IDLER ASSEMBLY Parts Diagram

48" Pro Mower Deck Assembly

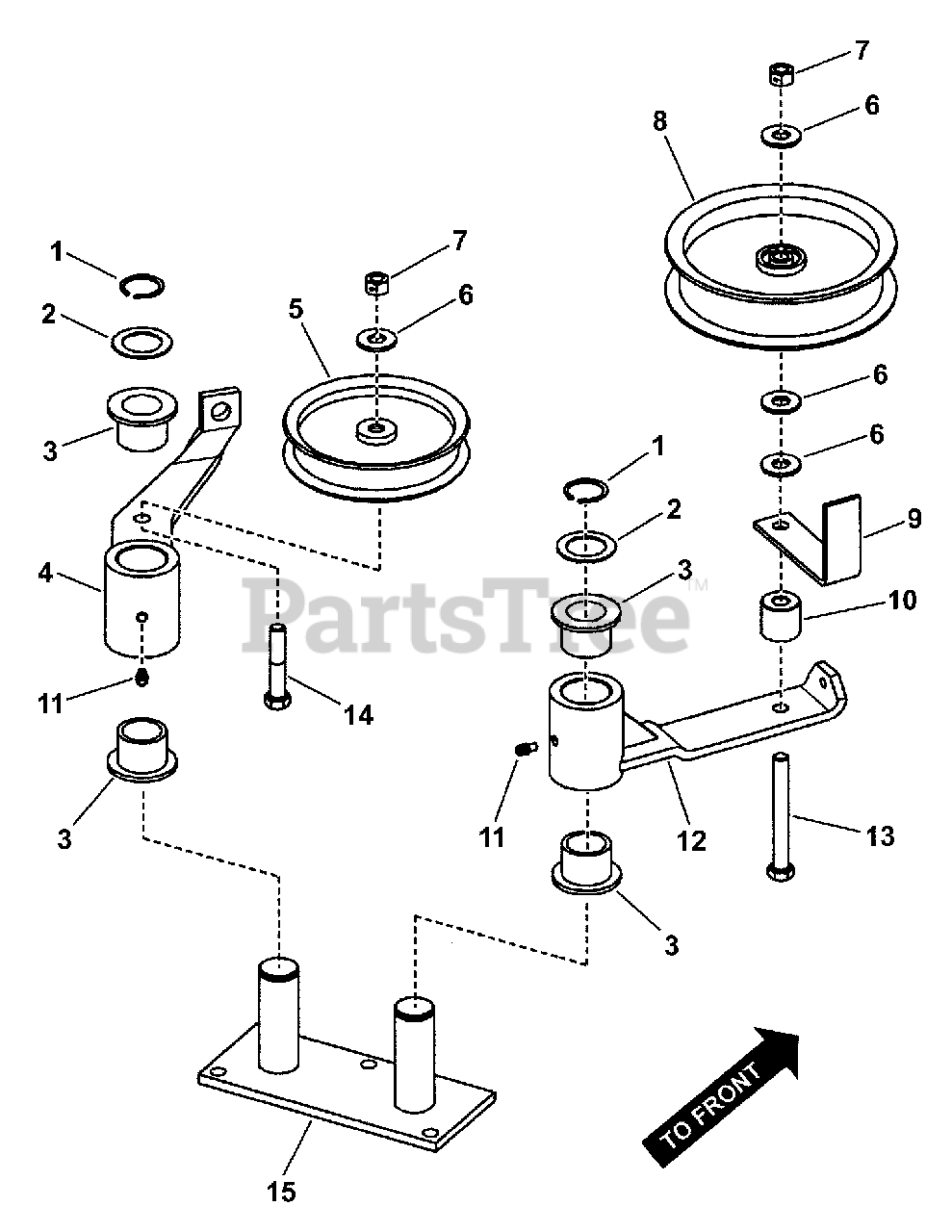

48" & 61" DECK IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, only 2 left!

0

2

Snapper Pro 7023747

BUSHING, 1" I.D. Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

3

Snapper Pro 7023556

BUSHING, Flange
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

4

Snapper Pro 7042452

WELDMENT, Idler Arm, Secondary
(Superseded to 7042452YP)

$158.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7029273

PULLEY, Idler
(Superseded to 7029273YP)

$

$

Not available

6

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 1 left!

0

7

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

8

Snapper Pro 7034422

PULLEY, Flat Idler, 5" O.D.
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 11

0

9

Snapper Pro 7035656

RETAINER, Belt - Idler
(Superseded to 7035656YP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7035657

SPACER, Idler Pulley
(Superseded to 7035657YP)

$53.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7014669

GREASE FITTING, 3/16 Straight (press-in)
(Superseded to 7014669YP)

$4.49

$

In Stock, only 2 left!

0

12

Snapper Pro 7042450

WELDMENT, Idler Arm, Primary
(Superseded to 7042450YP)

$95.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7027220

BOLT, 3/8-16 x 3-1/4" Hex Head Cap, GR 5

$

$

Not available

14

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

15

Snapper Pro 7042465

WELDMENT, Idler Pivot
(Superseded to 7042465YP)

$99.99

$

Usually ships in 2-12 days

0
