Speed ZTR 54 (965882101) - Dixon 54" Speed ZTR Zero-Turn Mower (2009-05) SEAT Parts Diagram

54" SpeedZTR Zero-Turn Mower

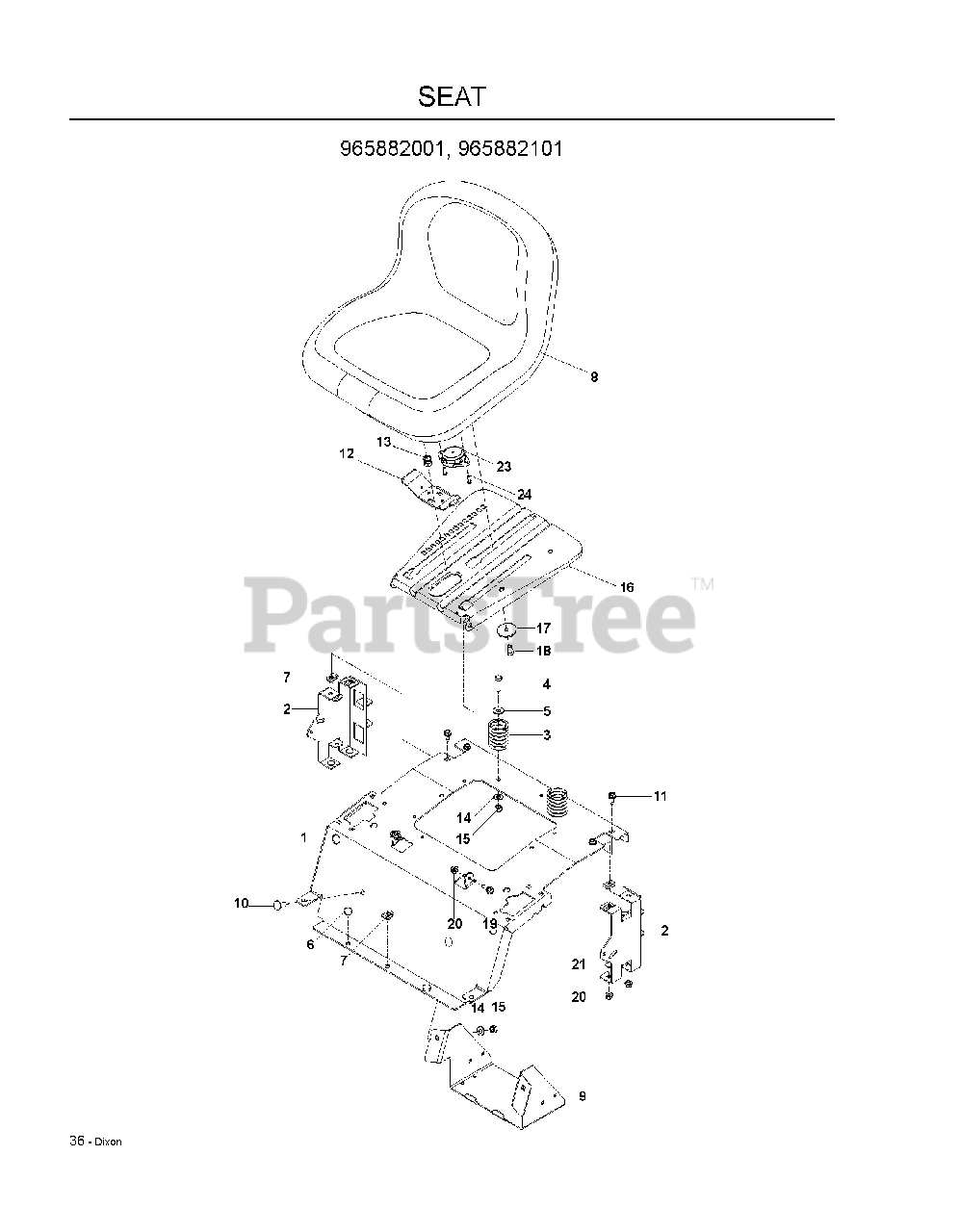

SEAT Parts Diagram

  • Title

1

Dixon 522545402

SUPPORT.SEAT.FLAT.ORAN*SUBS/2*

$

$

Not available

2

Dixon 510182902

SUPPORT, REAR SEAT, BLACK

$66.99

$

Usually ships in 3-10 days

0

3

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

4

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

7

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

8

Dixon 522598901

SEAT,BLACK W/ARMREST PROVISION
(Superseded to 532406625)

$265.99

$

In Stock, only 1 left!

0

9

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

10

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

12

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

13

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

In Stock, Qty 6

0

14

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$26.99

$

In Stock, only 1 left!

0

17

Dixon 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

In Stock, only 2 left!

0

19

Dixon 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

20

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

21

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539115639

5/16-18X2-1/4 CAR BL

$3.99

$

In Stock, only 1 left!

0

23

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0

24

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0
