SPL 140KW (7082359) - Snapper Walk-Behind Mower, 14hp Brake Assembly Parts Diagram

Walk-Behind Mower, 14hp

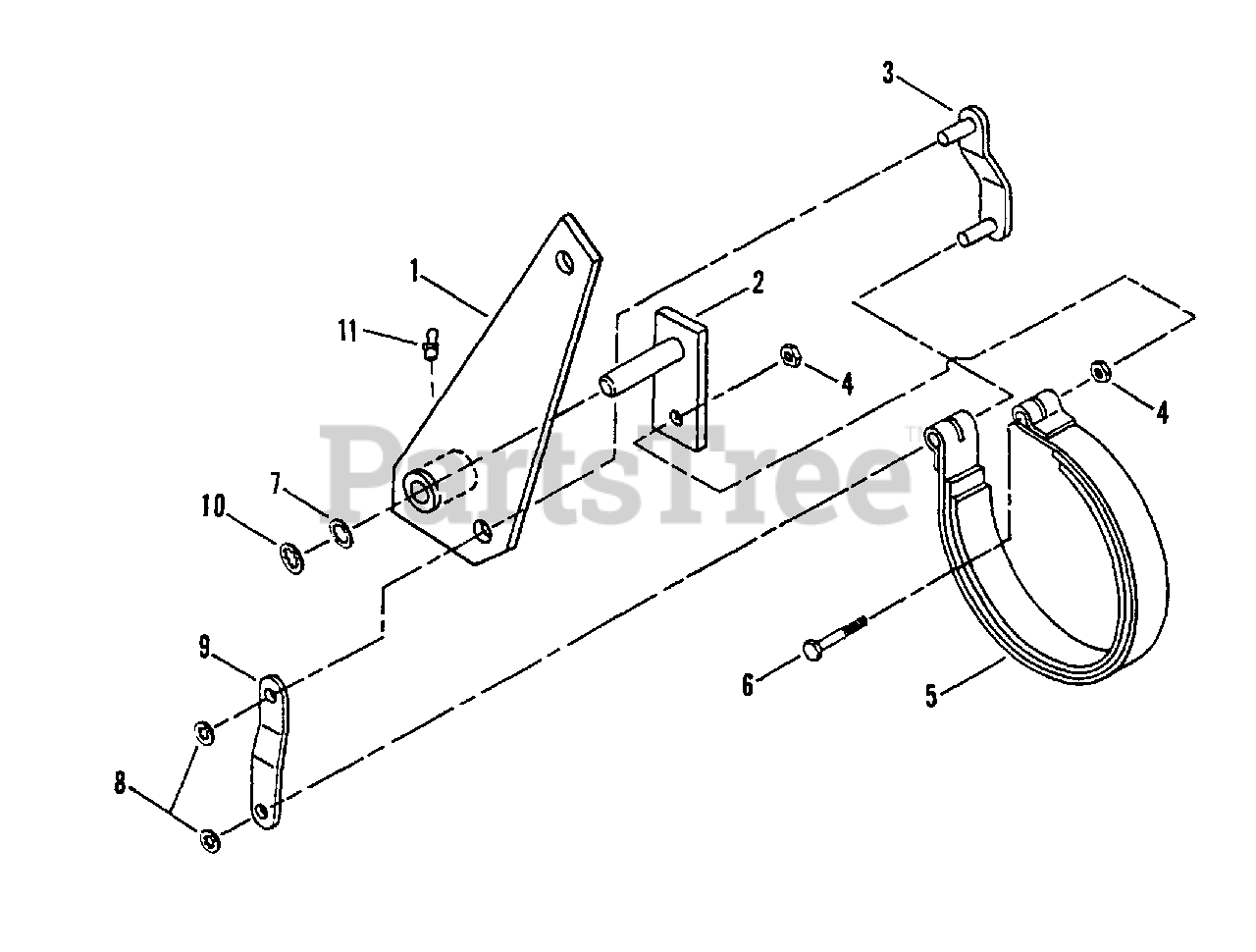

Brake Assembly Parts Diagram

  • Title

1

Snapper Pro 7041768

LEVER, Brake (Right Hand)
(Superseded to 7041768YP)

$86.99

$

Usually ships in 2-12 days

0

Snapper Pro 7041769

LEVER, Brake (Left Hand)
(Superseded to 7041769YP)

$90.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7041283

WELDMENT, Brake Stud

$

$

Not available

3

Snapper Pro 7040622

LINK, Brake

$45.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

5

Snapper Pro 7074810

BAND, Brake, 6"
(Superseded to 7074810YP)

Note: Was 17048

$64.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: Was 90588

$4.49

$

In Stock, Qty 6

0

7

Snapper Pro 7091043

BUSHING, Machinery,5/8" I.D. x 1" O.D.

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7013946

RETAINER, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7032903

PLATE, Brake Link

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091040

RETAINER, 5/8" Bolt
(Superseded to 7091040YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275

$3.99

$

In Stock, only 2 left!

0
