SPLH 153KW (7082435) - Snapper Walk-Behind Mower, 15hp REAR DECK ASSEMBLY Parts Diagram

Walk-Behind Mower, 15hp

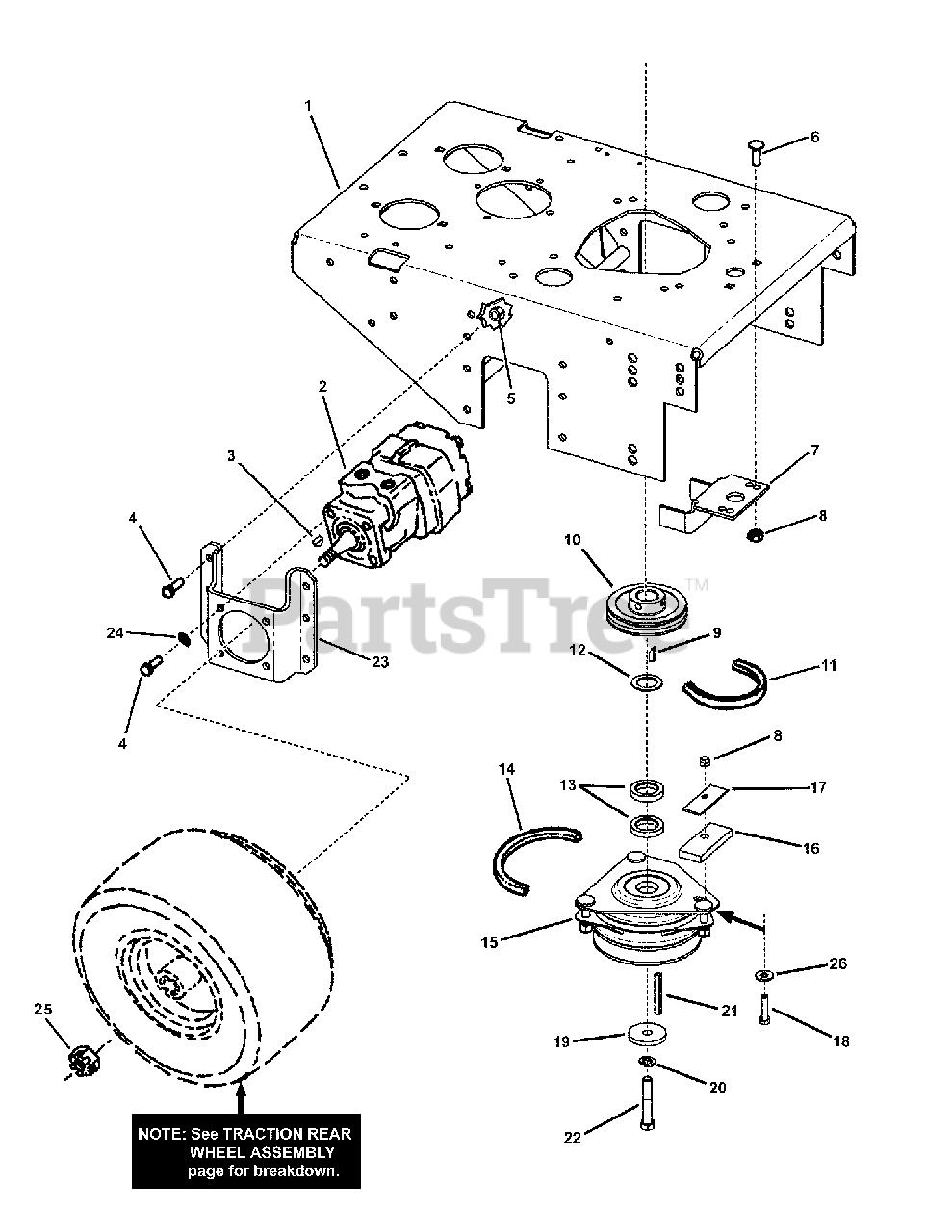

REAR DECK ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7044679

DECK, Rear (Weldment)

$

$

Not available

2

Snapper Pro 7046255

WHEEL MOTOR
(Superseded to 7046255YP)

Note: includes item 16

$672.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091823

KEY, 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

Note: SAE J502

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper Pro 5025046

NUT, 3/8-16, HEX TOP LOCK
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

6

Snapper Pro 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5

$

$

Not available

7

Snapper Pro 7035267

BRACKET, Anti-Spin
(Superseded to 7035267YP)

$39.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7044751

KEY, 1/4" Square w/Bevel (3/4" long)
(Superseded to 7044751YP)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7027132

PULLEY, 4", Engine/Hydro
(Superseded to 7027132YP)

$92.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7029615

V-BELT, HA4950 Engine/Hydro
(Superseded to 7029615YP)

Note: Dayco# 43-8498

$49.99

$

In Stock, only 2 left!

0

12

Snapper Pro 7016561

BUSHING, 1" x 14 Ga Machine

$4.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7075084

SPACER,Clutch, Ogura

$18.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7035710

*V-BELT, Sect HB, Nom. Effective Length: 84.80" (Engine/Deck belt)
(Superseded to 7035710YP)

Note: used on 36" Deck

$

$

Not available

14

Snapper Pro 7029262

*V-BELT, Sect HB, Nom. Effective Length: 66.00" (Primary Engine/Deck belt)
(Superseded to 7029262YP)

Note: used on 48" Deck

$48.99

$

In Stock, Qty 12

0

14

Snapper Pro 7042813

*V-BELT, Sect HB, Nom. Effective Length: 67.80" (Engine/Deck belt)
(Superseded to 7042813YP)

Note: used on 52" Deck

$55.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7042735

*V-BELT, Sect HB, Nom. Effective Length: 74.00" (Primary Engine/Deck belt)
(Superseded to 7042735YP)

Note: used on 61" Deck

$45.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7075672

**CLUTCH, Electric (Ogura model GT2.5 SN01)
(Superseded to 7075672YP)

Note: requires use of 7017033, 7075082 & 7075084

$501.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$23.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7034448

WASHER, Rectangular Steel
(Superseded to 7034448YP)

Note: electric clutch bumper support

$33.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

19

Snapper Pro 7075082

SPACER, Clutch

$12.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

21

Snapper Pro 7017033

KEY, 1/4" Square x 2-1/4"
(Superseded to 7017033YP)

$5.49

$

In Stock, Qty 5

0

22

Snapper Pro 7092071

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 (w/locking patch)
(Superseded to 7092071YP)

Note: or 7091703

$4.49

$

In Stock, only 4 left!

0

23

Snapper Pro 7034647

BRACKET, Wheel, Hydro Gear
(Superseded to 7034647YP)

$85.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

25

Snapper Pro 7091828

NUT, 3/4-20 Hex Castle

$

$

Not available

26

Snapper Pro 7091528

WASHER, .375 I.D. x .875 O.D. Flat

$

$

Not available
