SPLH 231KHE (7084618) - Snapper Walk-Behind Mower, 23hp OIL TANK ASSEMBLY (Model SPLH231KHE) Parts Diagram

Walk-Behind Mower, 23hp

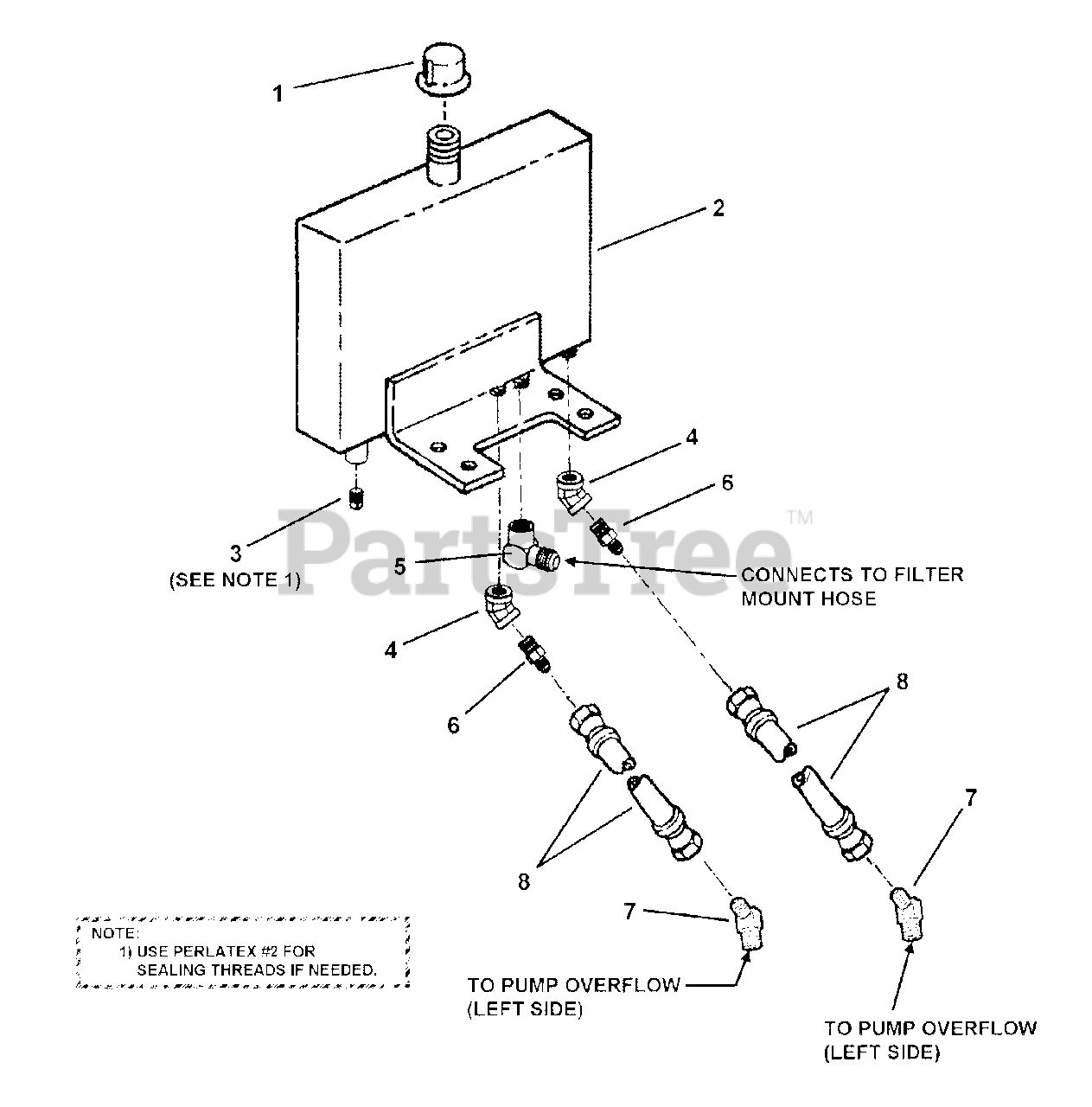

OIL TANK ASSEMBLY (Model SPLH231KHE) Parts Diagram

  • Title

1

Snapper Pro 7026945

CAP, Hydraulic

$33.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7028972

TANK, Reservoir
(Superseded to 7028972YP)

$655.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7029039

PLUG, 1/4 NPTM Pipe

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7029159

FITTING, 45 Degree 1/4 FPT Elbow
(Superseded to 7029159YP)

$24.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7027115

FITTING, 90 Degree

$19.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7027104

FITTING, Straight 1/4
(Superseded to 7027104YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7027105

FITTING, External 45 Degree w/37 Degree Flare
(Superseded to 7027105YP)

$19.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7028912

HOSE, 10-1/2" Long (7/16-20 Female Thread)
(Superseded to 7028912YP)

$23.99

$

Usually ships in 2-12 days

0
