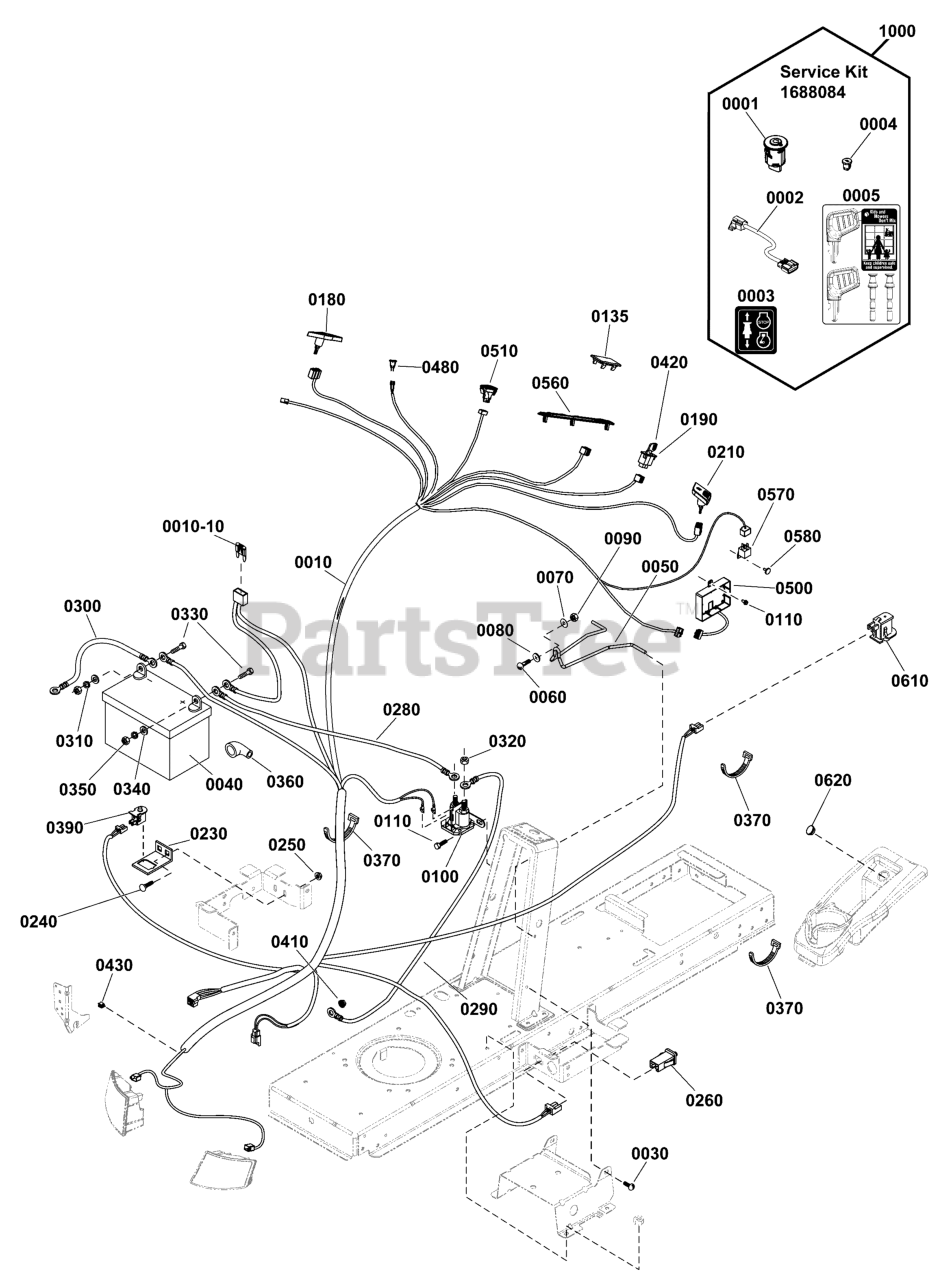

SPX 2352 (2691022-01) - Snapper LT150 Series 52" Lawn Tractor, 23hp Electrical Group Parts Diagram

LT150 Series 52" Lawn Tractor, 23hp

Electrical Group Parts Diagram

  • Title

0010

Snapper 1738984YP

WIRING HARNESS

$276.99

$

Usually ships in 2-12 days

0

0010-10

* FUSE, Mini, 20 Amp

Note: (Included with Reference Number 0110)

$

$

Not available

0030

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 12 Volt, 230 CCA

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 4 left!

0

0070

Snapper 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, only 4 left!

0

0080

Snapper 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 7

0

0090

Snapper 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1755381YP

SOLENOID

$24.99

$

In Stock, Qty 14

0

0110

Snapper B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0135

Snapper 1722611SM

PLUG, Hole 27/32 x 1-3/4

$6.99

$

Usually ships in 2-12 days

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 1 left!

0

0190

Snapper 1726556SM

SWITCH, RMO, Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026ASM

SUPPORT, RMO Switch

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0280

Snapper 1752685YP

CABLE, Two Ring, #6 x 10

$11.99

$

Usually ships in 2-12 days

0

0290

Snapper 1751450YP

CABLE,#6 x 25

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1752686YP

CABLE, # 6 x 26

$12.99

$

Usually ships in 2-12 days

0

0310

Snapper 7090052SM

LOCKWASHER, 1/4

$3.49

$

In Stock, Qty 5

0

0320

Snapper 2860750SM

NUT, Hex, Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

0340

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 10

0

0350

Snapper 703127

NUT, Hex, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0360

Snapper 1677296SM

BOOT, Insulator Battery Terminal, Red

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 703586

TIE, Self Locking, 7-5/16

$4.99

$

Usually ships in 2-12 days

0

0390

Snapper 1732004SM

SWITCH, Push Button, NO, Black

$8.99

$

In Stock, Qty 6

0

0410

Snapper 703233

NUT, Hex Flange Whiz Lock, 1/4-20

$4.49

$

In Stock, only 2 left!

0

0420

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 19

0

0430

Snapper 2172434SM

CLIP, Panel

$4.99

$

In Stock, only 1 left!

0

0480

Snapper 791944

SWITCH, Starter (Without Key)

$14.99

$

In Stock, only 2 left!

0

0500

Snapper 1739020YP

PANEL, Control, Push Button
(Superseded to 1688084)

Note: (For Replacement Refer To Reference Number 1000)

$164.99

$

Usually ships in 2-12 days

0

0510

Snapper 1739277YP

SWITCH ASSEMBLY, Push Button
(Superseded to 1753667YP)

$43.99

$

Usually ships in 2-12 days

0

0560

Snapper 1752934YP

PLUG, Dash, No Hourmeter

$4.99

$

Usually ships in 2-12 days

0

0570

Snapper 1726829SM

RELAY, Single Pole, Double Throw

$15.99

$

Usually ships in 2-12 days

0

0580

Snapper 1704351SM

FASTENER, Panel

$4.99

$

Usually ships in 2-12 days

0

0610

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0620

Snapper 1732007SM

PLUG, Hole, 7/8 Dia.

$4.49

$

Usually ships in 2-12 days

0

1000

Snapper 1688084

KIT, IGNITION

Note: (Includes Reference Numbers 0001, 0002, 0003, 0004, 0005)

$164.99

$

Usually ships in 2-12 days

0

0001

Snapper 84003613

SWITCH ASSEMBLY, Push Button Start

$96.99

$

Usually ships in 2-12 days

0

0002

Snapper 84003694

ADAPTER, Harness

$23.99

$

In Stock, only 1 left!

0

0003

Snapper 84003695

DECAL, KEY FOB, CONTROL

$9.99

$

Usually ships in 2-12 days

0

0004

Snapper 282640YP

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0005

Snapper 84003869

BLISTER PACK

$21.99

$

Usually ships in 2-12 days

0
