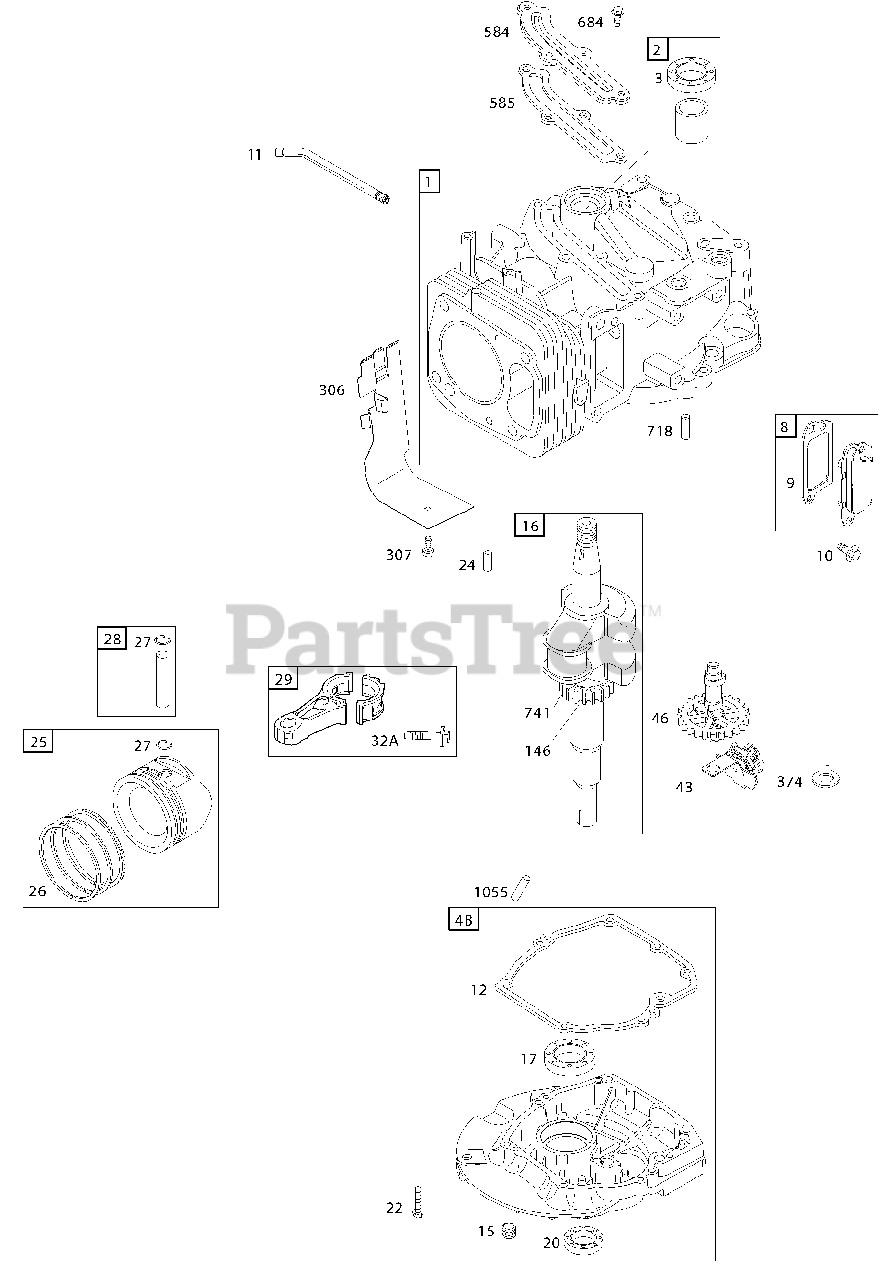

SRA 621 (12A-909Q100) - Cub Cadet Walk-Behind Mower Engine (2002) Cylinder, Crank, Sump Parts Diagram

Walk-Behind Mower Engine

Cylinder, Crank, Sump Parts Diagram

  • Title

1

Cub Cadet BS-499678

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Kit-Bushing/Seal (Magneto Side)

$21.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

4B

Cub Cadet BS-692509

Sump-Engine

$118.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, Qty 11

0

9

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 11

0

10

Cub Cadet BS-691125

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 7

0

11

Cub Cadet BS-691260

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691680

Plug-Oil Drain (Square Socket)

$5.99

$

In Stock, only 3 left!

0

16

Cub Cadet BS-691457

Crankshaft

$204.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-692517

Bearing-Ball

$31.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 17

0

22

Cub Cadet BS-691092

Screw (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 5

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499627

Piston Assembly (Standard)
(Superseded to BS-799063)

$91.99

$

In Stock, only 4 left!

0

Cub Cadet BS-692788

Piston Assembly (.010")

$55.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692789

Piston Assembly (.020")

$

$

Not available

Cub Cadet BS-692790

Piston Assembly (.030")

$65.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-499631

Ring Set (Standard)

$53.99

$

In Stock, Qty 6

0

Cub Cadet BS-692785

Ring Set (.010")

$

$

Not available

Cub Cadet BS-692786

Ring Set (.020")

$55.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692787

Ring Set (.030")

$26.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet BS-499423

Pin-Piston

$9.49

$

In Stock, only 1 left!

0

29

Cub Cadet BS-499424

Rod-Connecting
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

32A

Cub Cadet BS-695759

Screw (Connecting Rod)

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-692505

Slinger-Gov./Oil

$26.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-694040

Camshaft

$74.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, only 3 left!

0

306

Cub Cadet BS-691232

Shield-Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

374

Cub Cadet BS-691074

Washer (Camshaft)

$3.99

$

Usually ships in 2-12 days

0

584

Cub Cadet BS-692342

Cover-Breather Passage

$

$

Not available

585

Cub Cadet BS-691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

684

Cub Cadet BS-690345

Screw (Breather Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-691830

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

1055

Cub Cadet BS-692623

Tube-Oil Pump

$7.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692752

Short Block

Note: N/S

$

$

Currently unavailable

Cub Cadet BS-122672-0020

Complete Engine

Note: N/S

$

$

Not available
