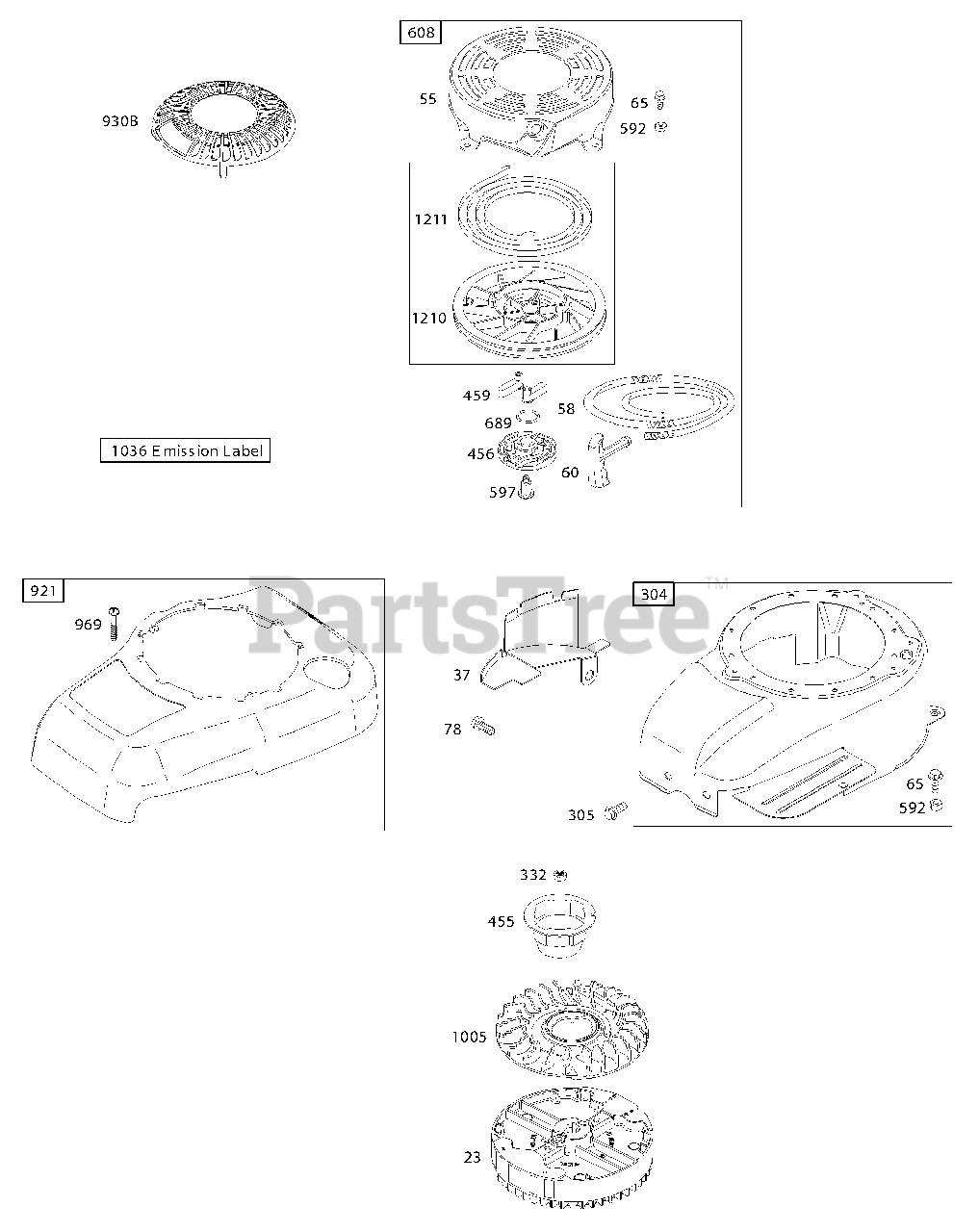

SRA 621 (12A-909Q100) - Cub Cadet Walk-Behind Mower Engine (2002) Flywheel, Rewind Parts Diagram

Walk-Behind Mower Engine

Flywheel, Rewind Parts Diagram

  • Title

23

Cub Cadet BS-692452

Flywheel
(Superseded to BS-697610)

$199.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-694086

Guard-Flywheel
(Superseded to BS-793756)

$10.99

$

In Stock, only 4 left!

0

55

Cub Cadet BS-691421

Housing-Rewind Starter

$64.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-692259

Rope-Starter
(Superseded to BS-697316)

$5.99

$

In Stock, Qty 10

0

60

Cub Cadet BS-281434

Grip-Starter Rope
(Superseded to BS-281434S)

$3.99

$

In Stock, Qty 10

0

65

Cub Cadet BS-690837

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 18

0

78

Cub Cadet BS-691108

Screw (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

304

Cub Cadet BS-499677

Housing-Blower

$58.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-691108

Screw (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 13

0

455

Cub Cadet BS-695161

Cup-Flywheel

$37.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, Qty 20+

0

459

Cub Cadet BS-281505

Pawl-Ratchet
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

592

Cub Cadet BS-690800

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

608

Cub Cadet BS-497680

Starter-Rewind

$49.99

$

In Stock, only 4 left!

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, Qty 7

0

921

Cub Cadet BS-692699

Cover-Blower Housing

$55.99

$

Usually ships in 2-12 days

0

930B

Cub Cadet BS-692691

Guard-Rewind

$22.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-691138

Screw (Blower Housing Cover)

$3.99

$

In Stock, Qty 12

0

1005

Cub Cadet BS-691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

Cub Cadet BS-696767

Label-Emmission

$11.99

$

Usually ships in 2-12 days

0

1210

Cub Cadet BS-498144

Pulley/Spring Assembly

$19.99

$

In Stock, only 3 left!

0

1211

Cub Cadet BS-498144

Pulley/Spring Assembly

$19.99

$

In Stock, only 3 left!

0

Cub Cadet BS-692752

Short Block

Note: N/S

$

$

Currently unavailable

Cub Cadet BS-122672-0020

Complete Engine

Note: N/S

$

$

Not available
