SRM-201 F - Echo String Trimmer Bearings, Crankshaft, Piston Parts Diagram

String Trimmer

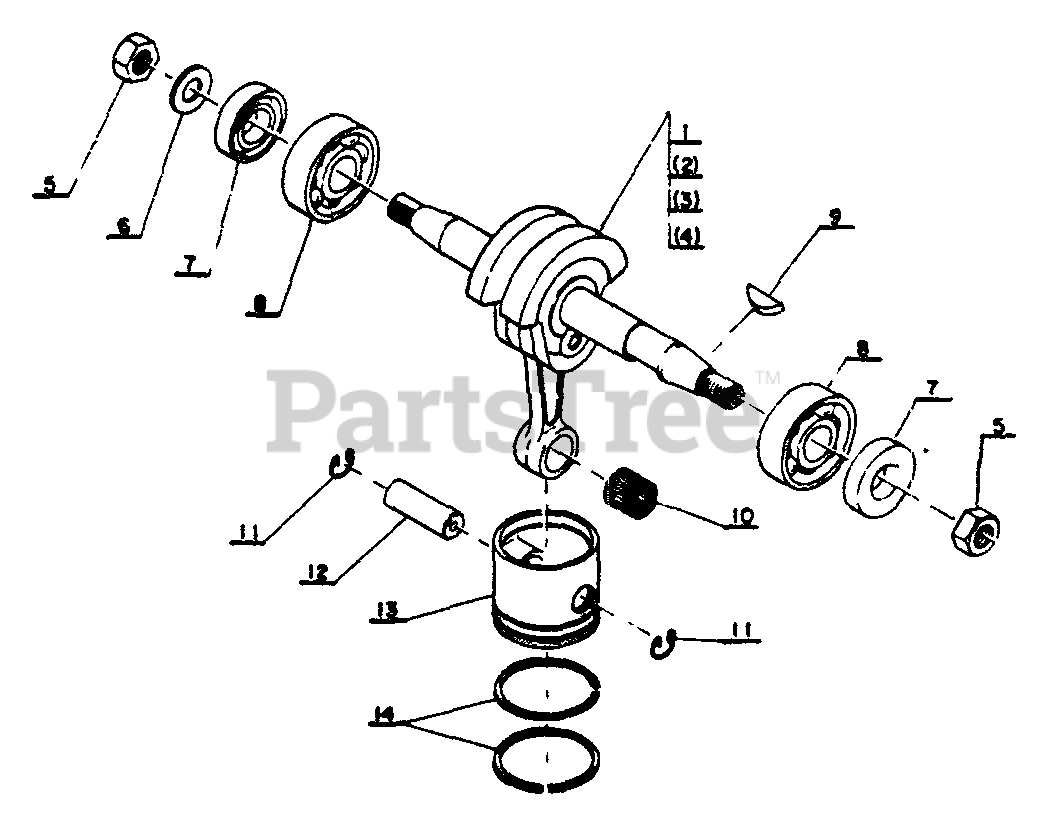

Bearings, Crankshaft, Piston Parts Diagram

  • Title

1

Echo HK1001004

CRANKSHAFT ASSY

$

$

Currently unavailable

2

------------------

N/A

$

$

Not available

3

------------------

N/A

$

$

Not available

4

------------------

N/A

$

$

Not available

5

Echo HK1001484

NUT

$

$

Currently unavailable

6

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

7

Echo HK1002120

SEAL, OIL

$

$

Currently unavailable

8

Echo BB6201/c3

BEARING, BALL

$

$

Currently unavailable

9

Echo CD1001420

KEY

$

$

Currently unavailable

10

Echo JJ1000120

BEARING, NEEDLE

$

$

Currently unavailable

11

Echo HJ1000150

RING, RETAINING

$

$

Currently unavailable

12

Echo HJ1000130

PIN, PISTON

$

$

Currently unavailable

13

Echo HK1000100

PISTON

$

$

Currently unavailable

14

Echo HK1000114

RING, PISTON

$

$

Currently unavailable
