SRM-2500 - Echo String Trimmer Gear Case, Shield, Harness, Tools Parts Diagram

String Trimmer

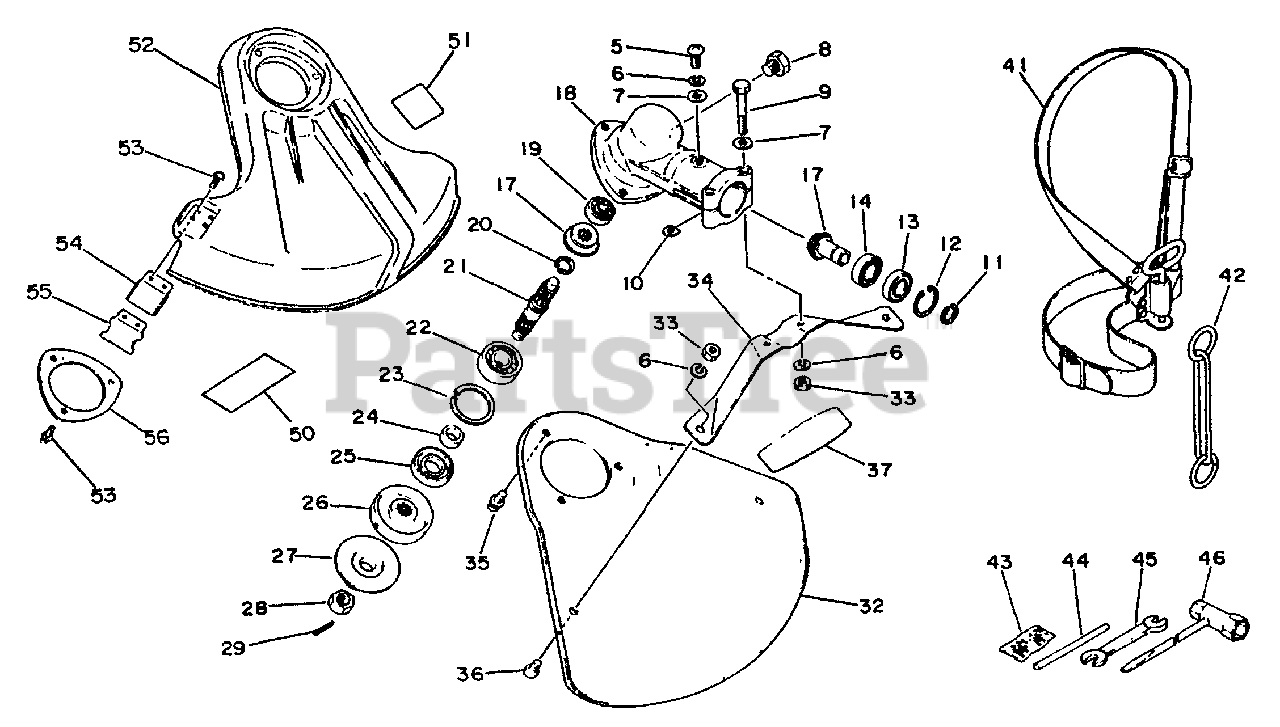

Gear Case, Shield, Harness, Tools Parts Diagram

  • Title

Echo 61040040930

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 10

0

6

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 12

0

9

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

10

Echo 61023704130

WASHER
(Superseded to 61023904130)

$0.99

$

In Stock, Qty 7

0

11

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 10

0

12

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, only 2 left!

0

13

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 8

0

14

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 7

0

17

Echo 61030040930

GEAR SET - BEVEL

$74.99

$

Usually ships in 2-4 days

0

18

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

19

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 16

0

20

Echo 61033722830

RING, RETAINING
(Superseded to 90070600010)

$1.49

$

In Stock, Qty 20+

0

21

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 6

0

22

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

23

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

24

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 15

0

25

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

26

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

$10.99

$

In Stock, only 3 left!

0

27

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, Qty 20+

0

28

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

29

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 69900020330

SHIELD ASSY - PLASTIC
(Superseded to Discontinued)

$

$

Not available

6

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901523431

BRACKET, SHIELD

$10.99

$

In Stock, only 3 left!

0

35

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

37

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 15

0

41

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

$82.99

$

Usually ships in 2-4 days

0

42

Echo 30130524330

HOOK

$10.99

$

In Stock, only 1 left!

0

43

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0

44

Echo 89751801131

LOCKING TOOL

$1.49

$

In Stock, only 1 left!

0

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

46

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

50

Echo 89013840630

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 15

0

51

Echo 89017740730

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

52

Echo 69900040830

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900040831)

$25.99

$

In Stock, Qty 9

0

53

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

54

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, Qty 5

0

55

Echo 69921223230

GUARD
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

56

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.49

$

In Stock, Qty 20+
