SRM-270 - Echo String Trimmer (SN: 36001001 - 36999999) Starter Parts Diagram

String Trimmer

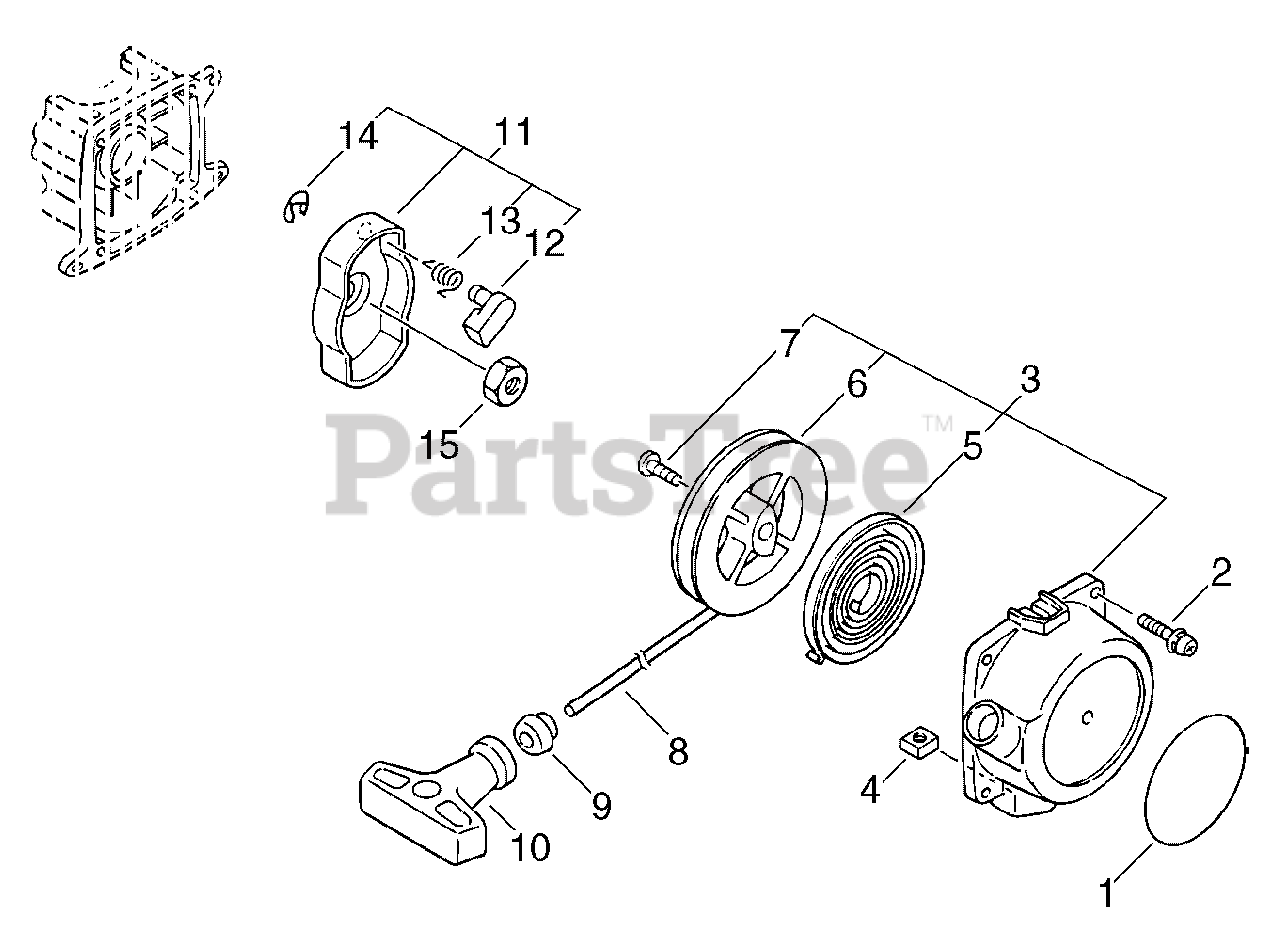

Starter Parts Diagram

  • Title

1

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

2

Echo 9111804014

SCREW - 4X14

$1.49

$

Usually ships in 2-4 days

0

3

Echo 17720055931

STARTER ASSY

$40.99

$

In Stock, Qty 12

0

4

Echo 90056500005

NUT
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

6

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 9

0

7

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

8

Echo 17722661830

ROPE, STARTER

$7.49

$

Usually ships in 2-4 days

0

9

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

10

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

11

Echo 17720240630

STARTER PAWL ASSY
(Superseded to A052000030)

$12.99

$

In Stock, Qty 20+

0

12

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

13

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, Qty 18

0

14

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 5

0
