SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Ignition, Starter Parts Diagram

Brush Cutter

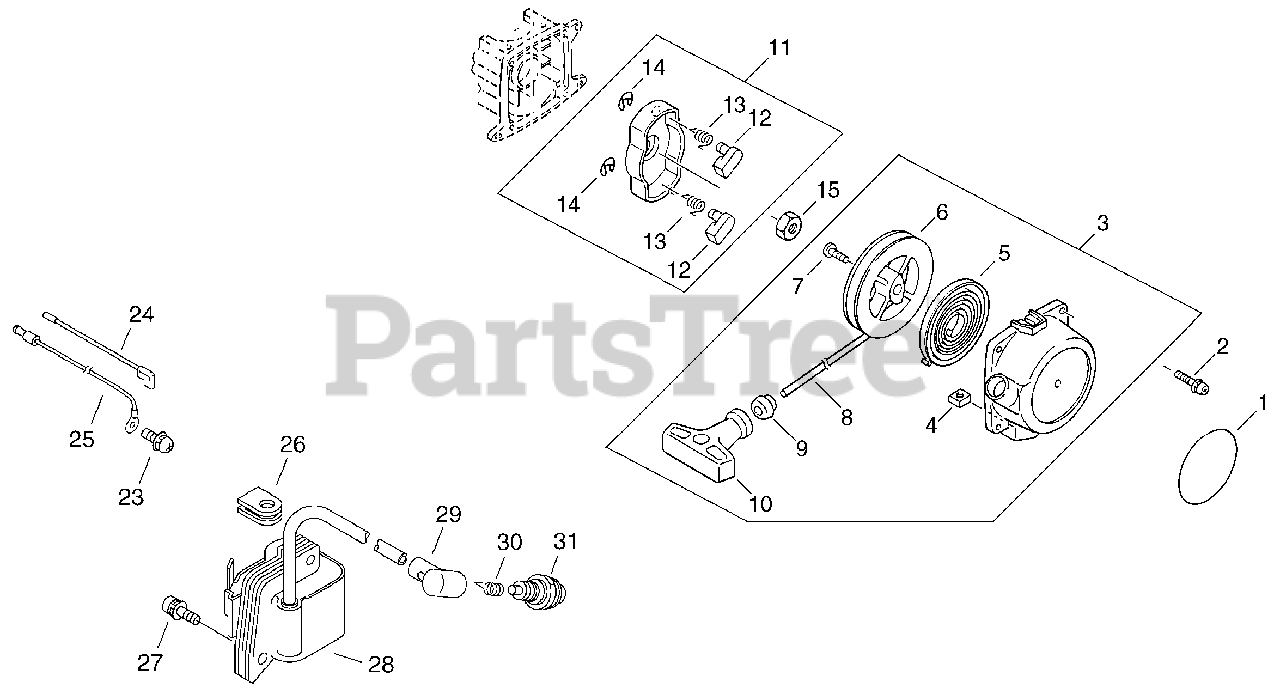

Ignition, Starter Parts Diagram

  • Title

1

Echo X502000330

LABEL - ECHO

$0.99

$

In Stock, Qty 20+

0

2

Echo 9111804014

SCREW - 4X14

$1.49

$

Usually ships in 2-4 days

0

3

Echo 17720055931

STARTER ASSY

$40.99

$

In Stock, Qty 12

0

4

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

6

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 9

0

7

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

8

Echo 17722661830

ROPE, STARTER

$7.49

$

Usually ships in 2-4 days

0

9

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

10

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

11

Echo A052000030

STARTER PAWL ASSY

$12.99

$

In Stock, Qty 20+

0

12

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

13

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, Qty 18

0

14

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 5

0

23

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

24

Echo 16201056430

LEAD - IGNITION

$6.49

$

In Stock, Qty 8

0

25

Echo 16201452930

LEAD - GROUND

$4.99

$

Usually ships in 2-4 days

0

26

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

27

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

28

Echo 15262656032

COIL, IGNITION

$107.99

$

Usually ships in 2-4 days

0

29

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

30

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

31

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0
