SRM-302 ADX - Echo String Trimmer Bearings, Crankshaft, Piston Parts Diagram

String Trimmer

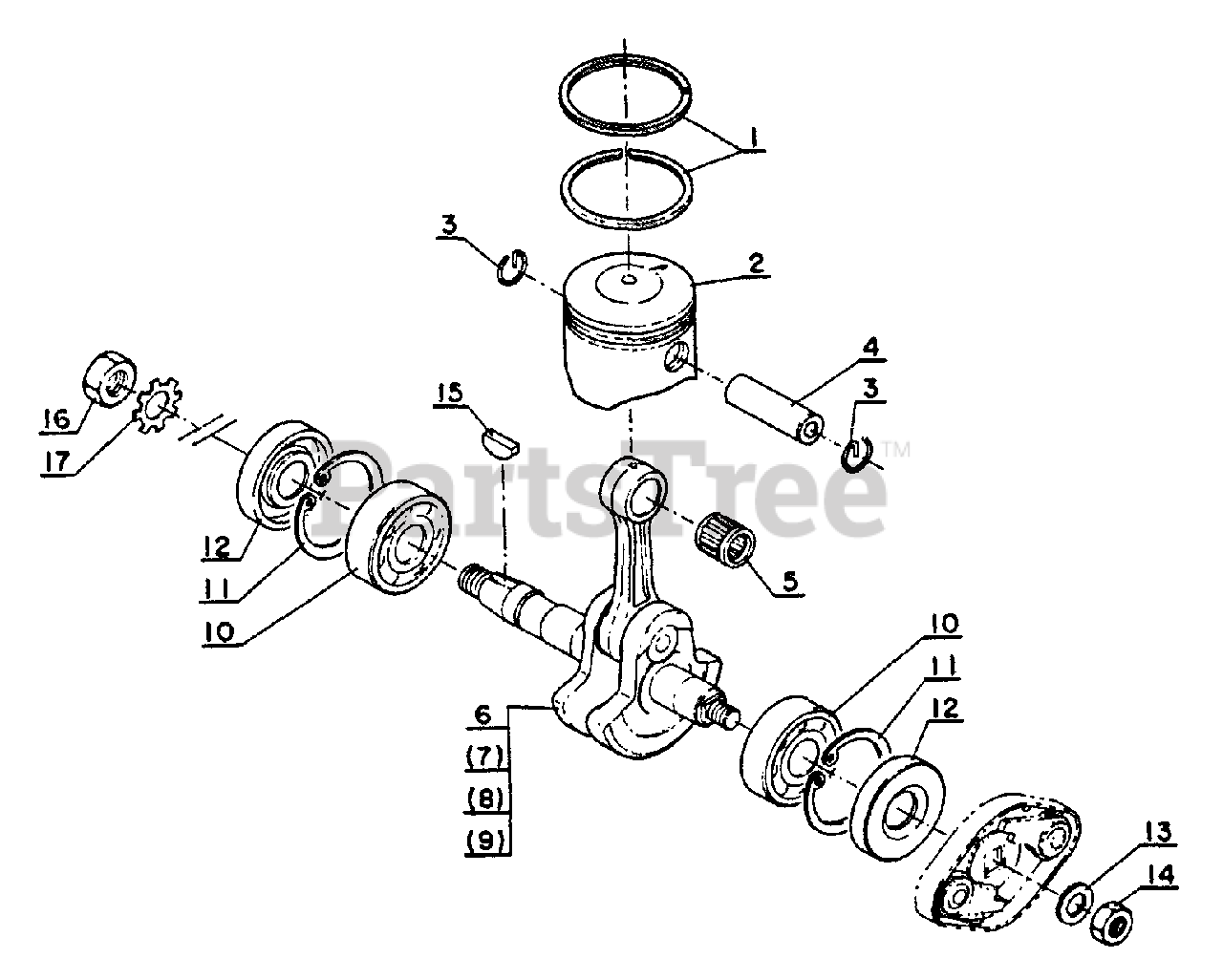

Bearings, Crankshaft, Piston Parts Diagram

  • Title

1

Echo 10001100310

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

2

Echo 10001003930

PISTON
(Superseded to 10000003930)

$

$

Not available

3

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 12

0

4

Echo 10001303930

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

5

Echo 10001200720

BEARING, NEEDLE
(Superseded to 10001216131)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 10010004130

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

7

------------------

N/A

$

$

Not available

8

------------------

N/A

$

$

Not available

9

------------------

N/A

$

$

Not available

10

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

11

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

12

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, Qty 7

0

13

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

14

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

15

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90061140008

LOCKWASHER - 8

$

$

Currently unavailable
