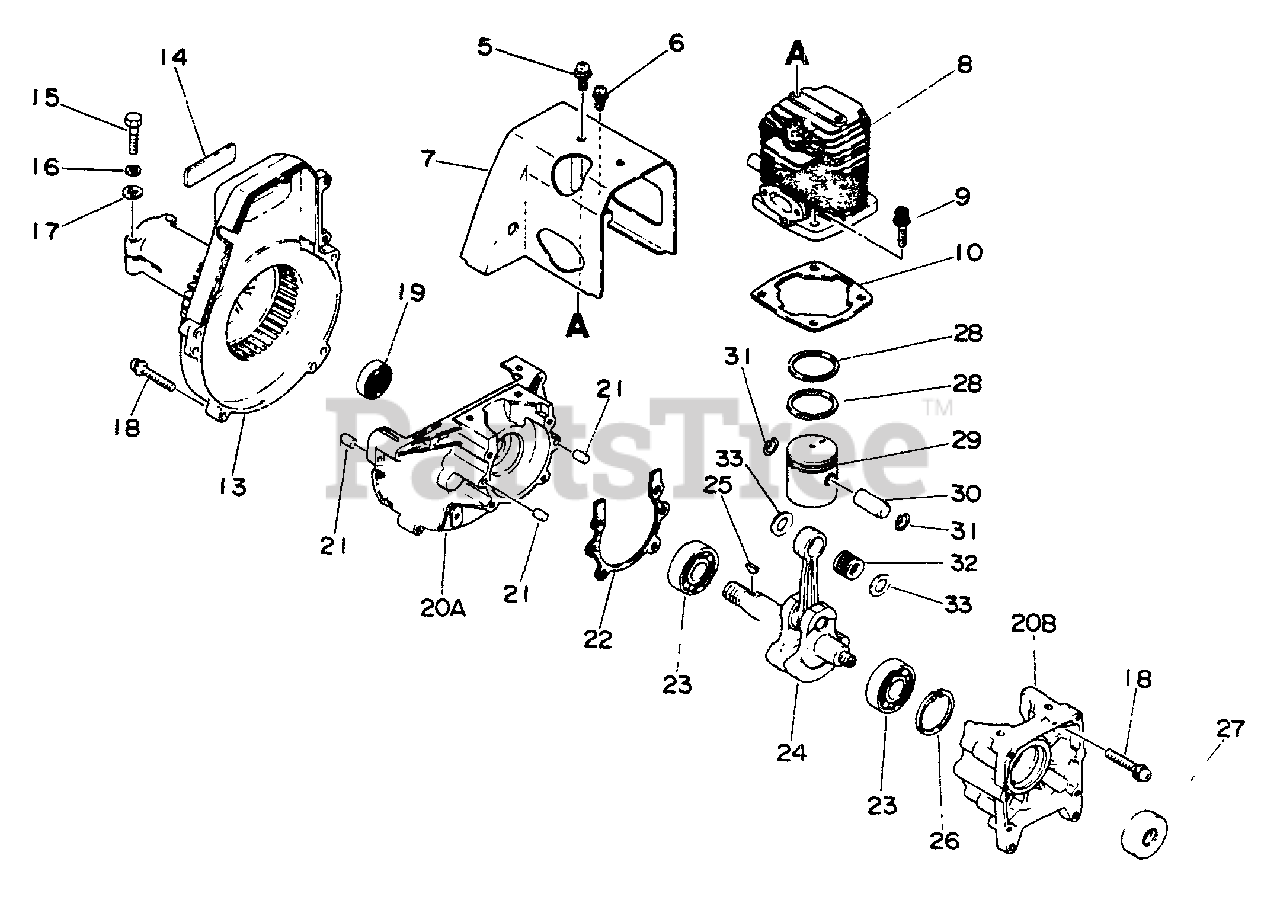

SRM-400 BE - Echo String Trimmer Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

7

Echo 10151424830

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

8

Echo 10101124830

CYLINDER
(Superseded to Discontinued)

$

$

Not available

9

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10101021430

GASKET, CYLINDER
(Superseded to 10101021431)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 10151121430

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

14

Echo 89011524530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

15

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 8

0

16

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

17

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

19

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

20

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

20A

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 20, Crankcase set, 10020021430

$

$

Not available

20B

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 20, Crankcase set,P\N 10020021430

$

$

Not available

21

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10024206720

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

24

Echo 10010024830

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

25

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 20+

0

26

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

27

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

28

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

29

Echo 10001024830

PISTON
(Superseded to Discontinued)

$

$

Not available

30

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

31

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

32

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

33

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0
