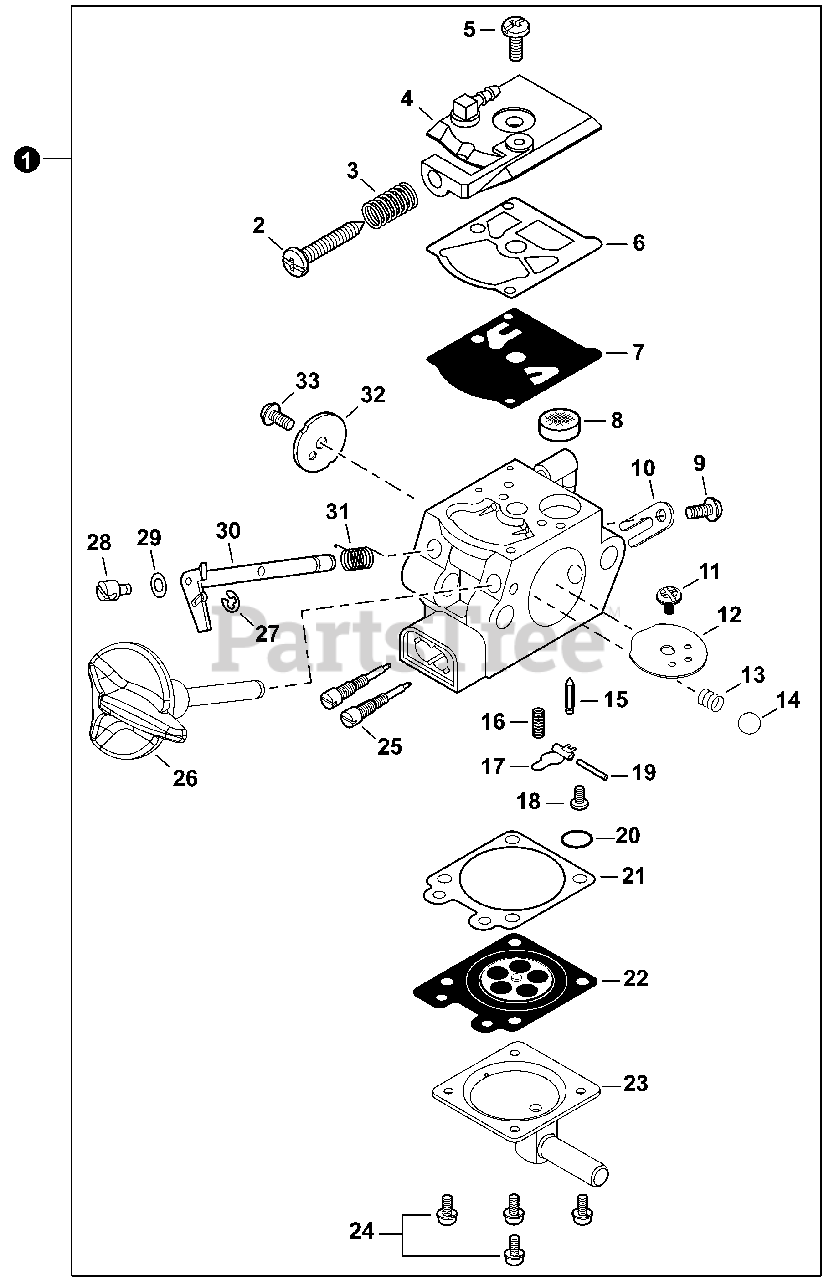

SRM-520 ES AR - Echo Brush Cutter (SN: U14926001001 - U14926999999) Carburetor Parts Diagram

Brush Cutter

Carburetor Parts Diagram

  • Title
1

Echo A021004220

CARBURETOR WT-1096

Note: Includes iitems 2-33

$160.99

$

Usually ships in 2-4 days

0

2

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

3

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

4

Echo P003005450

COVER, FUEL PUMP

$12.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 1 left!

0

6

Echo 12312515030

GASKET, FUEL PUMP

$2.49

$

In Stock, Qty 9

0

7

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 1 left!

0

8

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

9

$1.49

$

Usually ships in 2-4 days

0

10

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

11

$1.49

$

In Stock, Qty 13

0

12

Echo P003001790

VALVE, CHOKE

$1.49

$

Usually ships in 2-4 days

0

13

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

16

Echo 12312203660

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

18

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

19

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

20

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12314027230

GASKET, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

22

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

23

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

24

$1.99

$

Usually ships in 2-4 days

0

25

Echo P003002270

NEEDLE, MIXTURE

$19.99

$

Usually ships in 2-4 days

0

26

Echo P003005470

SHAFT, CHOKE

$28.99

$

Usually ships in 2-4 days

0

27

$1.49

$

In Stock, only 1 left!

0

28

$7.99

$

Usually ships in 2-4 days

0

29

$0.99

$

In Stock, only 1 left!

0

30

Echo P003005020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

31

Echo 12311347530

SPRING, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

32

Echo P003000310

VALVE, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

33

$0.99

$

In Stock, only 2 left!

0
