SRS Z2 (5901854) - Ferris SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton Wheel and Tire Group Parts Diagram

SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton

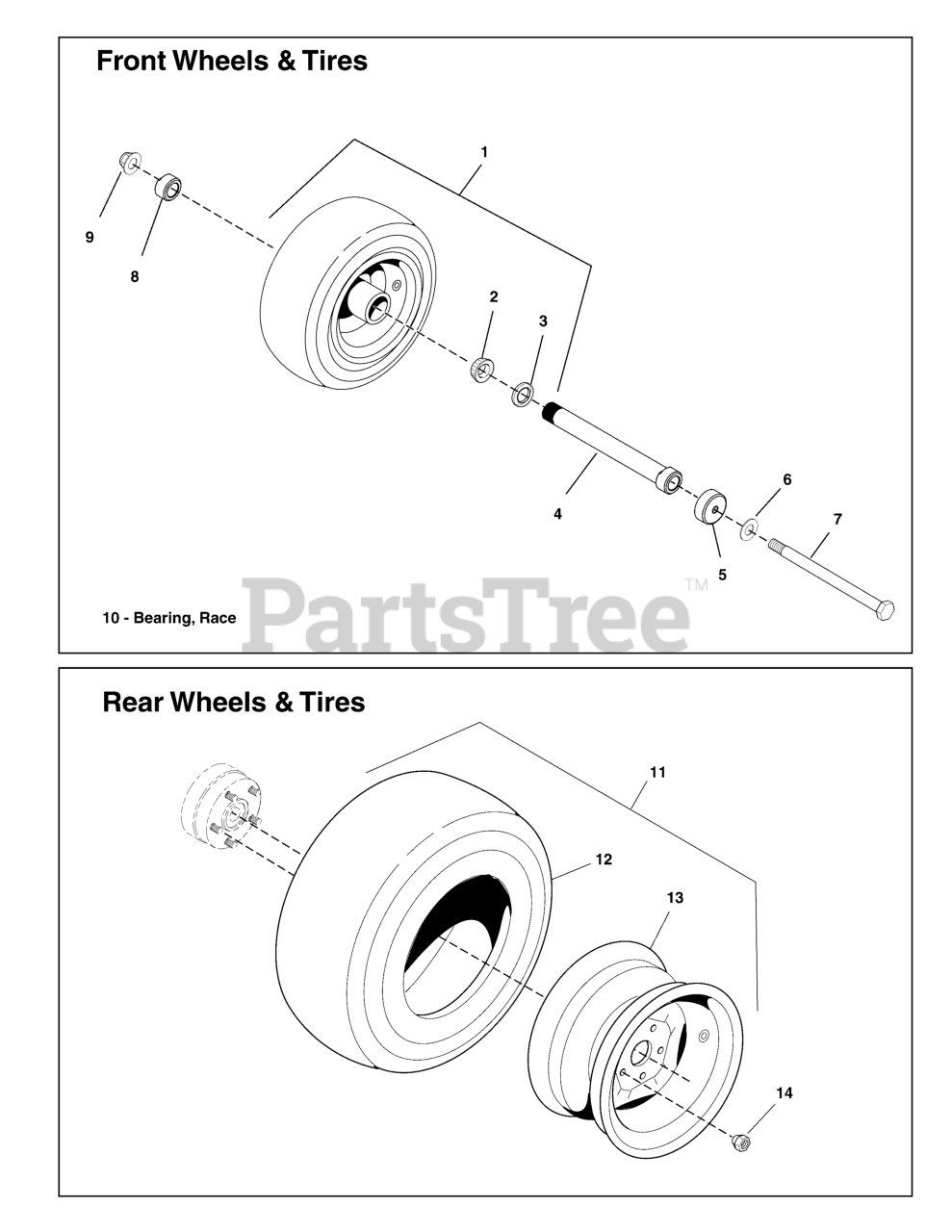

Wheel and Tire Group Parts Diagram

  • Title

1

Ferris 5023280

* FLAT-FREE TIRE ASSEMBLY, 13 x 5.0 - 6
(Superseded to 5023280SM)

$217.99

$

In Stock, only 4 left!

0

2

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV - 2 per tire)

$12.99

$

In Stock, only 1 left!

0

3

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV - 2 per tire)

$9.99

$

In Stock, only 1 left!

0

4

Ferris 5103648

BEARING ADJUSTER, SPACER, 6.062 LG
(Superseded to 5103648FS)

$21.99

$

Usually ships in 2-12 days

0

5

Ferris 5103594

DEBRIS, COVER, CASTER WHEELS
(Superseded to 5103594YP)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025017X64

BOLT, 1/2-13 X 8 GD5 YZ (NLA)
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

8

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, only 1 left!

0

9

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 7

0

10

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV - 2 per tire)

$10.99

$

Usually ships in 2-12 days

0

11

Ferris 5108106

TIRE WHEEL ASM, 23X10.50-12, TURF MASTER
(Superseded to 5108106FS)

$320.99

$

Usually ships in 2-12 days

0

12

Ferris 84003895

TIRE

Note: (SV - 1 per tire)

$353.99

$

Usually ships in 2-12 days

0

13

Ferris 5103920X1

WHEEL, 12 X 8.5, 5/4.5, 1.3 OFFSET (SV)

Note: (SV - 1 per tire)

$219.99

$

Usually ships in 2-12 days

0

14

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0
