SRS Z2 (5902050) - Ferris SRS Z2 Series 52" Stand-On Mower, 24hp Kawasaki Fuel Tank and Mount, Fuel Supply, and Evap Group Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 24hp Kawasaki

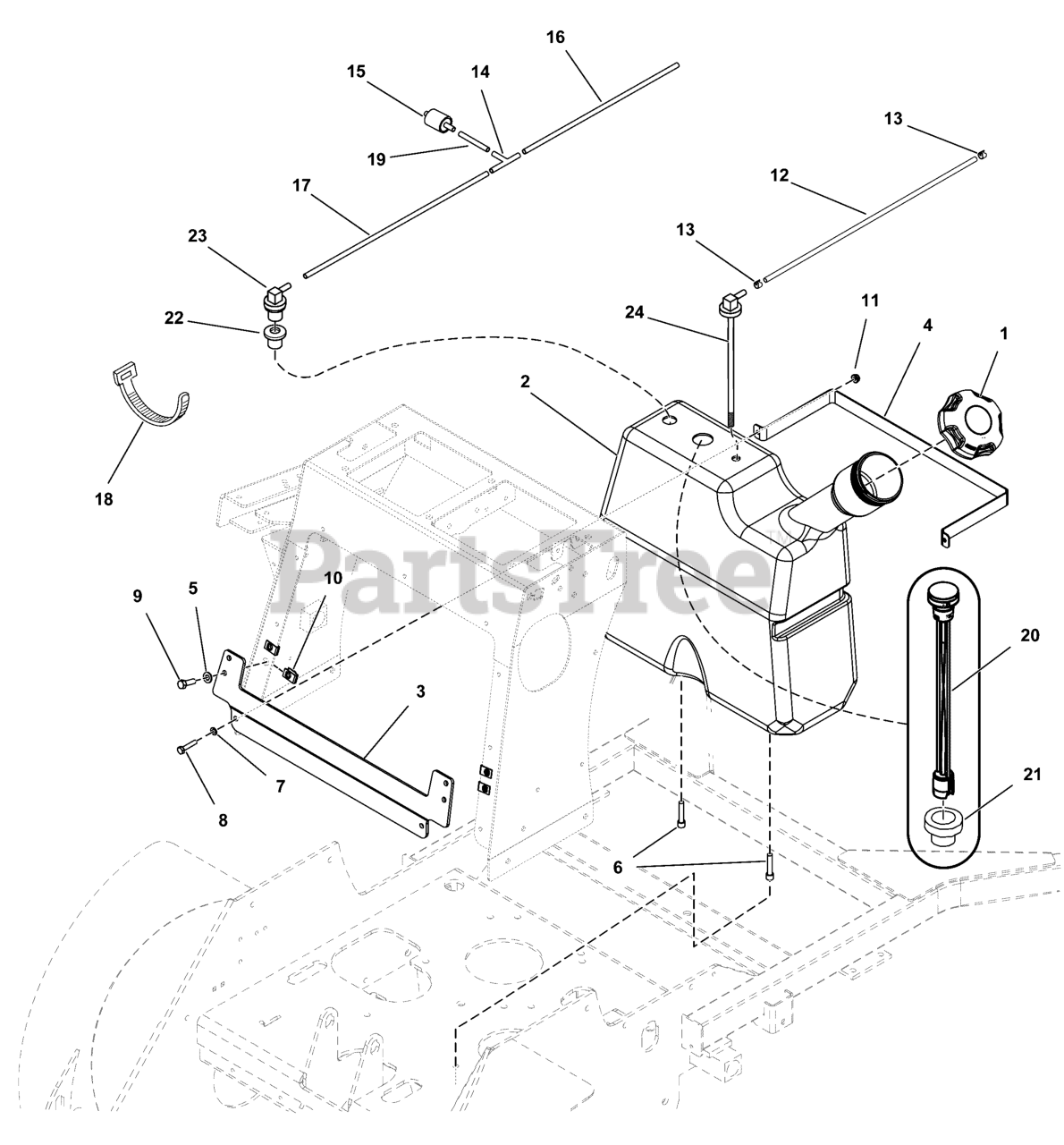

Fuel Tank and Mount, Fuel Supply, and Evap Group Parts Diagram

  • Title

1

Ferris 5104686

FUEL CAP, 3.25", MANAGED VENT, 16"TETHER
(Superseded to 5104686FS)

$54.99

$

Usually ships in 2-12 days

0

2

Ferris 5104781

TANK, FUEL, STAND -ON, 7.75 GALLON
(Superseded to 5104781FS)

$509.99

$

Usually ships in 2-12 days

0

3

Ferris 5414648AA

PLATE, SRS Z2 TANK MOUNT, 7.75GAL - BLK
(Superseded to 5414648AAFS)

$35.99

$

Usually ships in 2-12 days

0

4

Ferris 5414649AA

STRAP, FUEL TANK, STAND ON - BLK
(Superseded to 5414649AAFS)

$21.99

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 84008512

SCREW, SOC HD, 5/16-18 X 1/2

$

$

Currently unavailable

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

11

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5050831X7

1/4" Fuel Line, 7" Long
(Superseded to 5050831X7YP)

$5.99

$

Usually ships in 2-12 days

0

13

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

Usually ships in 2-12 days

0

15

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

16

Ferris 7700552X15

HOSE, VAPOR, 5MM ID, 15.00 LG
(Superseded to 7700552X22YP)

$8.99

$

Usually ships in 2-12 days

0

17

Ferris 7700552X19

HOSE, VAPOR, 5MM ID, 19.00 LG
(Superseded to 7700552X19FS)

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

19

Ferris 7700552X2

HOSE, VAPOR, 5MM ID, 2.00 LG
(Superseded to 7700552X2YP)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5104785

GAUGE, FUEL LEVEL, 17.0"

$81.99

$

Usually ships in 2-12 days

0

21

Ferris 80089102

GROMMET, FUEL GAUGE
(Superseded to 84004692)

$4.99

$

Usually ships in 2-12 days

0

22

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, only 3 left!

0

23

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

24

Ferris 5104783

PICKUP TUBE ASM, FUEL TANK, 16.50"

$27.99

$

Usually ships in 2-12 days

0
