SS 200 (5901802) - Snapper Pro SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton Deck Lift Group Parts Diagram

SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton

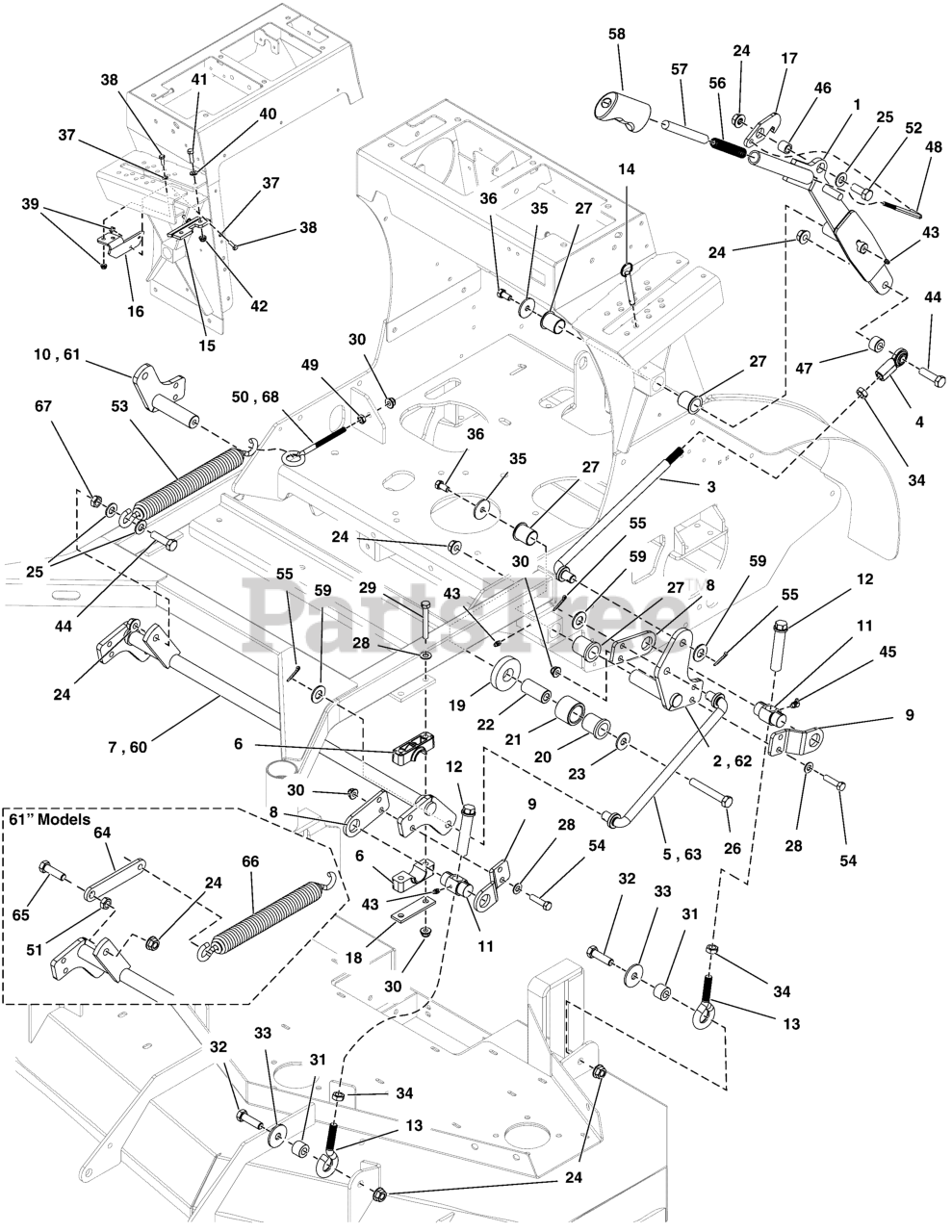

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5413616A

WELD, DECK LIFT, STAND ON - BLK
(Superseded to 5413616AAFS)

$151.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5413614A

WELD, REAR DECK LIFT PIVOT, LH - BLK
(Superseded to 5413614AAFS)

Note: (52" Models Only)

$53.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104547

ROD, MAIN DECK LIFT, STAND-ON
(Superseded to 5104547FS)

$33.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

Usually ships in 2-12 days

0

5

Replace with: 5601249

Note: (52" Models Only)(Refer to Note: *)

$

$

Not available

6

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5413613A

WELD, SHAFT, DECK LIFT - BLK
(Superseded to 5413613AAFS)

Note: (52" Models Only)

$163.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5413900A

BRACKET, INNER TRUNION MNT - BLK
(Superseded to 84003300)

$9.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5413899A

BRACKET, OUTER TRUNION MNT - BLK
(Superseded to 84003301)

$17.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5414140A

WELD, RH REAR PIVOT, STAND ON - BLK
(Superseded to 5414140AA)

Note: (52" Models Only)

$42.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104238

PIVOT, DECK LIFT TRUNION, GREASABLE
(Superseded to 84003302)

$36.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5109915FS

ADJUSTER, HEIGHT

$7.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025579

EYE BOLT, 1/2-20 X 4.25,1.88THRD,1EYE,CZ
(Superseded to 5025579FS)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5104610

PIN, HITCH, 3/8" DIA X 2.5" EL, CZ
(Superseded to 5104610FS)

$9.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5414171A

PLATE, LATCH GUIDE - BLK

$11.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5414118AA

PLATE, BRACKET, DECK LIFT SUPPORT - BLK
(Superseded to 5414118AAFS)

$13.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5414040A

PLATE, LATCH, PUSH BUTTON LIFT - BLK
(Superseded to 5414040AAFS)

$6.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

19

Snapper Pro 5061010

WASHER, FRICTION
(Superseded to 5061010FS)

$27.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

21

Snapper Pro 5100731

ROLLER, DECK HEIGHT
(Superseded to 5100731FS)

$26.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5100732

SPACER, .52 X 1.00 X 2.09 - SS
(Superseded to 5100732FS)

$28.99

$

In Stock, only 2 left!

0

23

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 4 left!

0

24

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

25

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (Qty: 1 - 61" Models)

$3.99

$

In Stock, Qty 20+

0

26

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

27

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

In Stock, Qty 5

0

28

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

31

Snapper Pro 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, only 2 left!

0

32

Snapper Pro 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, only 1 left!

0

35

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

36

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

39

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

40

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

41

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

44

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

Note: (Qty: 1 - 61" Models)

$5.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025447

GREASE FITTING, 1/4-28 STRAIGHT, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5048049

SPACER, .50 X .75 X .66, CZ
(Superseded to 84002461)

$8.49

$

Usually ships in 2-12 days

0

47

Snapper Pro 5101161

SPACER, .52 X 1.00 X .63, YZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

48

Snapper Pro 5105322

ROD, DECK LIFT LATCH
(Superseded to 5105322FS)

$8.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

50

Snapper Pro 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

Note: (52" Models Only)

$5.99

$

In Stock, only 2 left!

0

51

Snapper Pro 5025038

NUT, 1/2-13 HEX, YZ
(Superseded to 703340)

Note: (52" Models Only)

$7.99

$

In Stock, only 2 left!

0

52

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

Note: (52" Models Only)

$3.99

$

In Stock, only 1 left!

0

52

Snapper Pro 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

Note: (61" Models Only)

$3.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5023392

SPRING-EXT, 1.393 ODX13.25LGX.218WR, BLK
(Superseded to 5023392YP)

Note: (52" Models Only)

$74.99

$

Usually ships in 2-12 days

0

54

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 1723321

SPRING-COMP 0.715ODX 03.85 LG
(Superseded to 1723321SM)

$6.99

$

In Stock, Qty 18

0

57

Snapper Pro 5105323

BUTTON, PUSH, DECK LIFT, THREADED
(Superseded to 5105323FS)

$13.99

$

In Stock, only 1 left!

0

58

Snapper Pro 1722291

GRIP,LIFT LEVER
(Superseded to 1722291SM)

$11.99

$

In Stock, only 1 left!

0

59

Snapper Pro 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

Usually ships in 2-12 days

0

60

Snapper Pro 5414297A

WELD, SHAFT, DECK LIFT - BLK

Note: (61" Models Only)

$177.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5414294A

WELD, RH REAR PIVOT, SRSZ2-61 - BLK

Note: (61" Models Only)

$43.99

$

Usually ships in 2-12 days

0

62

Snapper Pro 5414293A

WELD, LH REAR PIVOT, SRSZ2-61 - BLK

Note: (61" Models Only)

$51.99

$

Usually ships in 2-12 days

0

63

Replace with: 5601248

Note: (61" Models Only)(Refer to Note: *)

$

$

Not available

64

Snapper Pro 5414724A

PLATE, SPRING LINK, SRS Z2, 61 - BLK
(Superseded to 5414724AAFS)

Note: (61" Models Only)

$7.49

$

Usually ships in 2-12 days

0

65

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

Note: (61" Models Only)

$4.49

$

Usually ships in 2-12 days

0

66

Snapper Pro 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

Note: (61" Models Only)

$74.99

$

Usually ships in 2-12 days

0

67

Snapper Pro 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

Note: (52" Models Only)

$3.49

$

Usually ships in 2-12 days

0

68

Snapper Pro 5102118

EYE BOLT, 3/8-16 X 6.88, 3THRD, 1EYE
(Superseded to 5102118FS)

Note: (61" Models Only)

$15.99

$

Usually ships in 2-12 days

0
