SST2111 (80201) - Snapper String Trimmer Carburetor Assembly Parts Diagram

String Trimmer

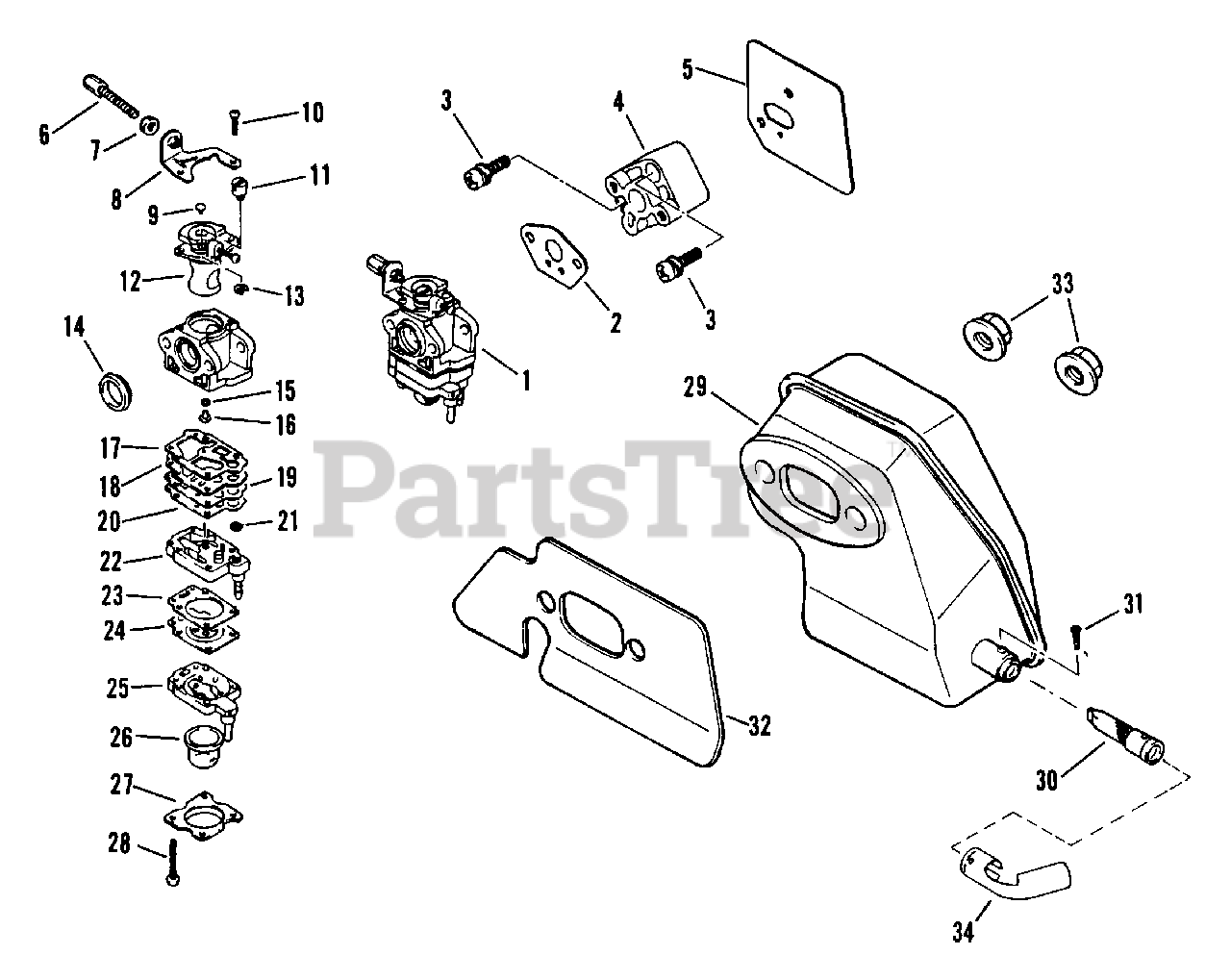

Carburetor Assembly Parts Diagram

  • Title
1

Snapper 7044438

ASSEMBLY, Carburetor

Note: (Includes items 2 thru 28)

$

$

Not available

2

Snapper 7044439

GASKET, Carburetor

$

$

Not available

3

Snapper 7044549

SCREW/WASHER

$1.99

$

In Stock, only 1 left!

0

4

Snapper 7044440

INSULATOR

$

$

Not available

5

Snapper 7044441

GASKET, Insulator

$1.99

$

In Stock, only 1 left!

0

6

$

$

Currently unavailable

7

Snapper 7045032

NUT

Note: Was 44443

$

$

Currently unavailable

8

Snapper 7044444

BRACKET

$

$

Currently unavailable

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Snapper 7044447

HOLDER, Wire

$

$

Not available

12

Snapper 7044448

VALVE, Throttle

$

$

Not available

13

$

$

Currently unavailable

14

Snapper 7044450

PACKING

$

$

Not available

15

$

$

Not available

16

Snapper 7044452

JET, Main

$

$

Currently unavailable

17

$

$

Not available

18

Snapper 7044454

DIAPHRAGM

$

$

Not available

19

$

$

Currently unavailable

20

$

$

Not available

21

$1.99

$

In Stock, only 1 left!

0

22

Snapper 7044458

BODY, Pump

Note: (Includes item 21)

$

$

Currently unavailable

23

$

$

Not available

24

Snapper 7044460

DIAPHRAGM

$

$

Not available

25

$

$

Currently unavailable

26

Snapper 7044462

ASSEMBLY, Primer Pump

$

$

Not available

27

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Snapper 7044473

MUFFLER

Note: (Includes 30 & 31)

$

$

Currently unavailable

30

Snapper 7044474

SPARK ARRESTER

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Snapper 7044472

GASKET, Muffler

$

$

Currently unavailable

33

Snapper 7044476

NUT, Flange

$

$

Currently unavailable

34

Snapper 7044496

EXHAUST, Elbow

$

$

Not available
