SSZ-18CV - Scag Super Z Zero-Turn Mower, 18hp Kohler (SN: 70000 - 79999) Instrument Panel And Electrical Components For 48" Model Parts Diagram

Super Z Zero-Turn Mower, 18hp Kohler

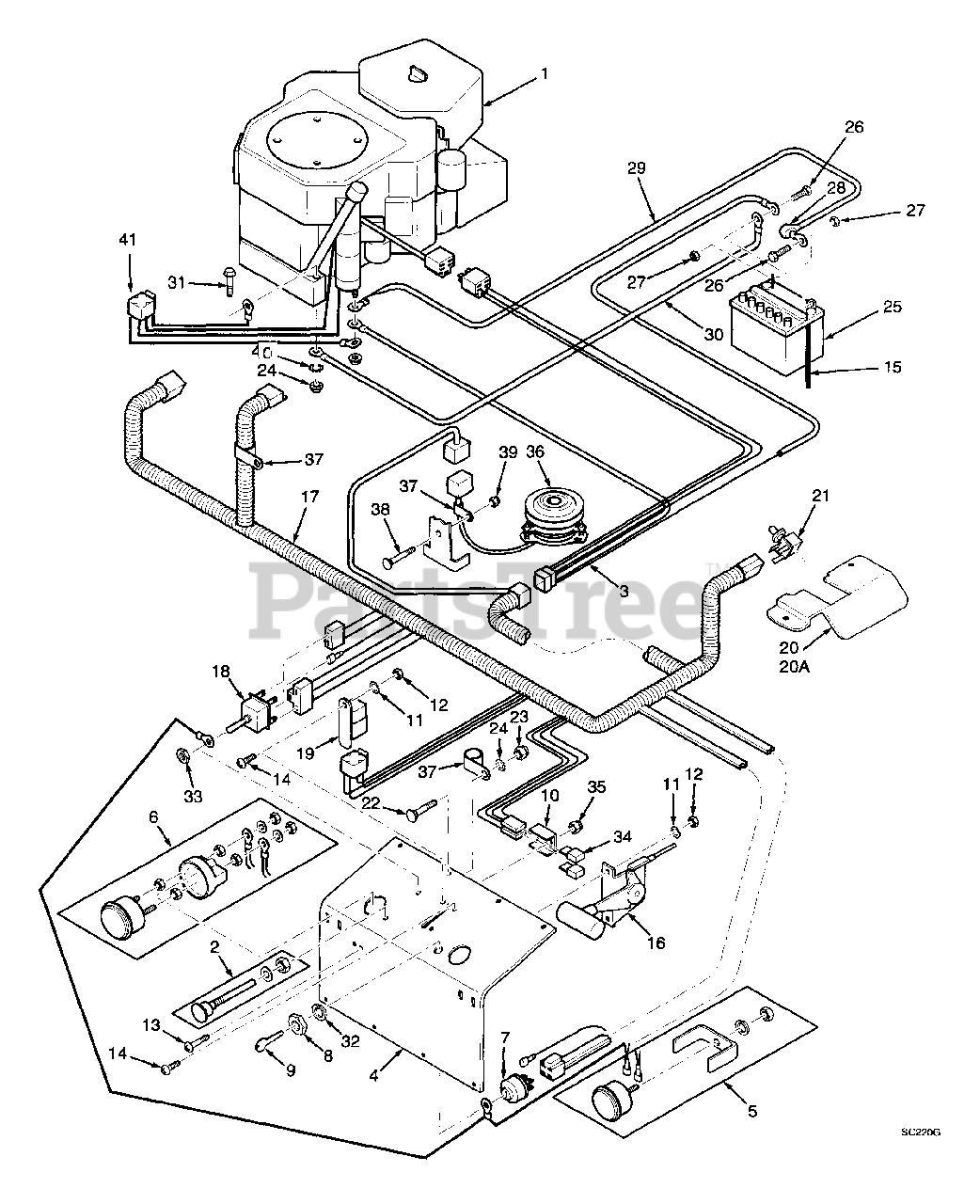

Instrument Panel And Electrical Components For 48" Model Parts Diagram

  • Title

1

Scag 48116

Engine 18 hp Kohler CV

$

$

Not available

2

Scag 48780

Choke Control

$62.99

$

Usually ships in 2-12 days

0

3

Scag 481070

Adapter

$45.99

$

Usually ships in 2-12 days

0

4

Scag 421251

Kick Plate

$

$

Not available

5

Scag 48023

Hour Meter

$195.99

$

In Stock, only 1 left!

0

6

Scag 48022

Ammeter
(Superseded to 481755)

$28.99

$

Usually ships in 2-12 days

0

7

Scag 48798

Key Switch

Note: Includes mounting hardware

$27.99

$

In Stock, Qty 20+

0

8

Scag 48017-04

Nut, Hex 5/8-32

$1.99

$

In Stock, Qty 5

0

9

Scag 48017-02

Key & Ring Assembly

$4.49

$

In Stock, Qty 7

0

10

Scag 42413

Bracket, Fuse Holder

$41.99

$

Usually ships in 2-12 days

0

11

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-07

Nut, Hex #10-32

$0.99

$

In Stock, only 3 left!

0

13

Scag 04010-11

Screw, Phillips Washer Head #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

15

Scag 48015-01

Overflow Tube

$

$

Not available

16

Scag 48879

Throttle Control

$62.99

$

In Stock, only 1 left!

0

17

Scag 481269

Wire Harness

$269.99

$

Usually ships in 2-12 days

0

18

Scag 48787

Switch, Mower Engagement Electric Clutch

$38.99

$

In Stock, only 1 left!

0

19

Scag 48788

Relay

$29.99

$

In Stock, only 1 left!

0

20

Scag 421253

Neutral Lock Bracket, RH

$58.99

$

In Stock, only 1 left!

0

20A

Scag 421252

Neutral Lock Bracket, LH

$58.99

$

Usually ships in 2-12 days

0

21

Scag 48522

Switch Neutral Lock
(Superseded to 481474)

$106.99

$

In Stock, only 3 left!

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 15

0

23

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Nut, Serrated Flange Hex 5/16-18

$0.99

$

In Stock, Qty 16

0

25

Scag 48015

Battery

$

$

Not available

26

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

27

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 9

0

28

Scag 48126

Rubber Boot

$8.99

$

Usually ships in 2-12 days

0

29

Scag 48029-13

Battery Cable, 25" Red

$14.99

$

In Stock, only 2 left!

0

30

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

31

Scag 04017-19

Bolt, Serrated Flange Hex Head 5/16-18 x 1.50"

$1.49

$

Usually ships in 2-12 days

0

32

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 7

0

33

Scag 48787-01

Nut, Hex 1/2-27

$2.99

$

Usually ships in 2-12 days

0

34

Scag 48298

Fuse, Blade Type 20 amp

$3.99

$

Usually ships in 2-12 days

0

35

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

36

Scag 48786

Electric Clutch
(Superseded to 461074)

$519.99

$

Usually ships in 2-12 days

0

37

Scag 48030-09

Clamp

$1.49

$

In Stock, only 4 left!

0

38

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

39

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

40

Scag 04031-09

Lockwasher, 5/16" Internal Tooth

$0.99

$

In Stock, Qty 8

0

41

Scag 481275

Wire Harness W/Relay

$34.99

$

In Stock, only 1 left!

0
