ST 0726 (626750x16B) - Frontier 26" Snow Thrower (2004) Gear Case Parts Diagram

26" Snow Thrower

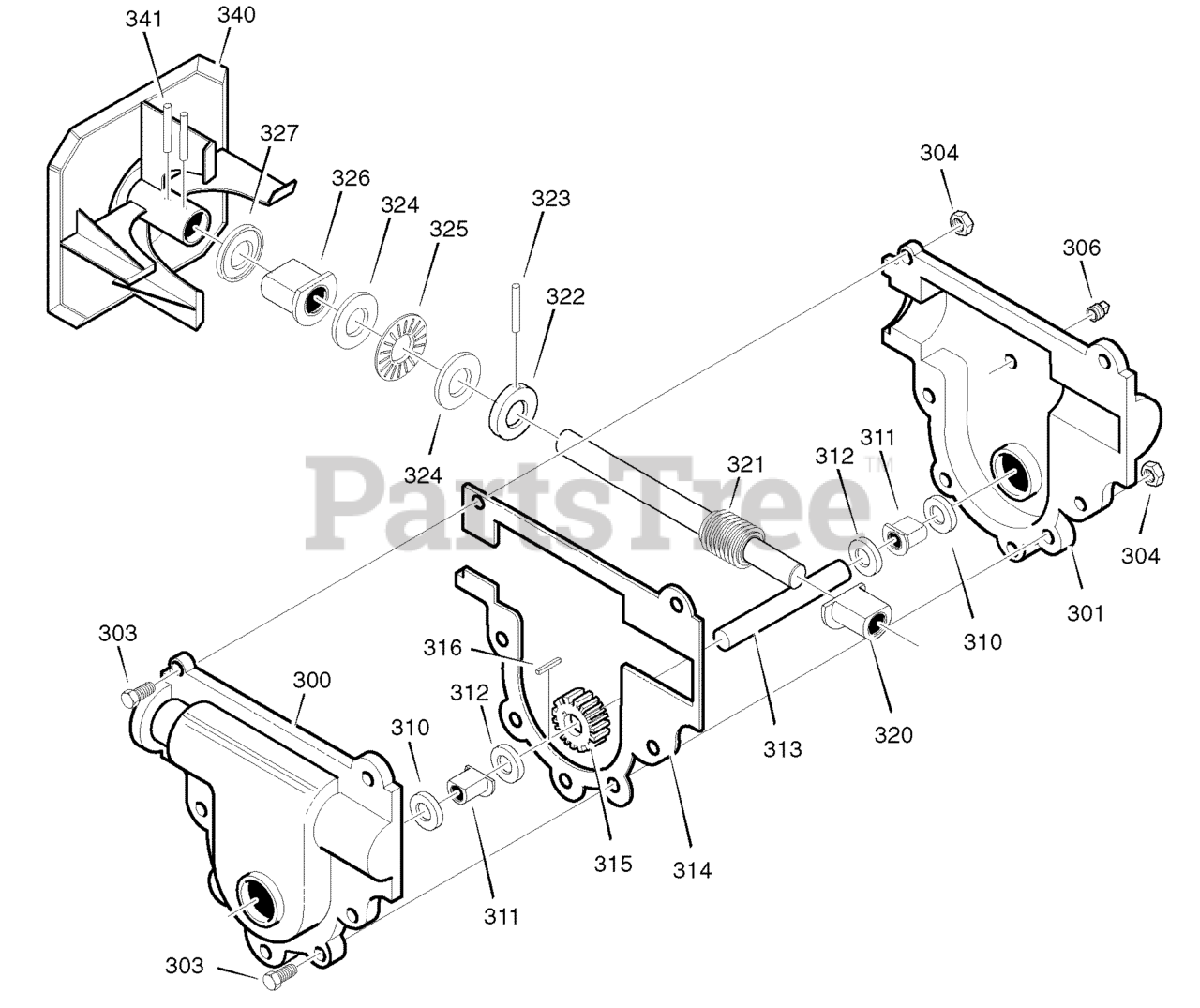

Gear Case Parts Diagram

  • Title
300

Murray MT10577

CASE, GEAR, RH

$

$

Currently unavailable

301

Murray MT10576

CASE, GEAR, LH

$

$

Currently unavailable

303

Murray MT710025

SCREW,1/4-20X.75

$

$

Currently unavailable

304

Murray MT15X143

NUT,1/4-20

$

$

Currently unavailable

306

Murray MT9344

SCREW, 3/8-16 x 0.50

$

$

Currently unavailable

310

Murray MT9566

SEAL, OIL

$

$

Currently unavailable

311

Murray MT50304

BEARING, FL

$

$

Currently unavailable

312

Murray MT48275

WASHER, FLAT

$

$

Currently unavailable

313

Murray MT340287

SHAFT, AUGER OUTPUT

$

$

Currently unavailable

314

Murray MT51279

GASKET, GEAR BOX

$

$

Currently unavailable

315

Murray MT51405

GEAR, WORM

$

$

Currently unavailable

316

Murray MT431787

KEY, WOODRUFF #61

$

$

Currently unavailable

320

Murray MT50221

BEARING, FL

$

$

Currently unavailable

321

Murray MT1501128

SHAFT, AUGER INPUT (IMPELLER)

$

$

Currently unavailable

322

Murray MT580295

COLLAR, THRUST

$

$

Currently unavailable

323

Murray MT454565

PIN, SPRING

$

$

Currently unavailable

324

Murray MT48275

WASHER, FLAT

$

$

Currently unavailable

325

Murray MT50684

BEARING, ROLL

$

$

Currently unavailable

326

Murray MT50304

BEARING, FL

$

$

Currently unavailable

327

Murray MT9566

SEAL, OIL

$

$

Currently unavailable

340

$

$

Currently unavailable

341

Murray MT454565

PIN, SPRING

$

$

Currently unavailable

*

Murray MT333431

10oz TUBE LUBRIPLATE

Note: (Not Illustrated)

$

$

Currently unavailable
