ST 1942 (2691569-00) (960440015) - Snapper 42" Lawn Tractor, Hydro Drive, 19hp Mower Lift Group Parts Diagram

42" Lawn Tractor, Hydro Drive, 19hp

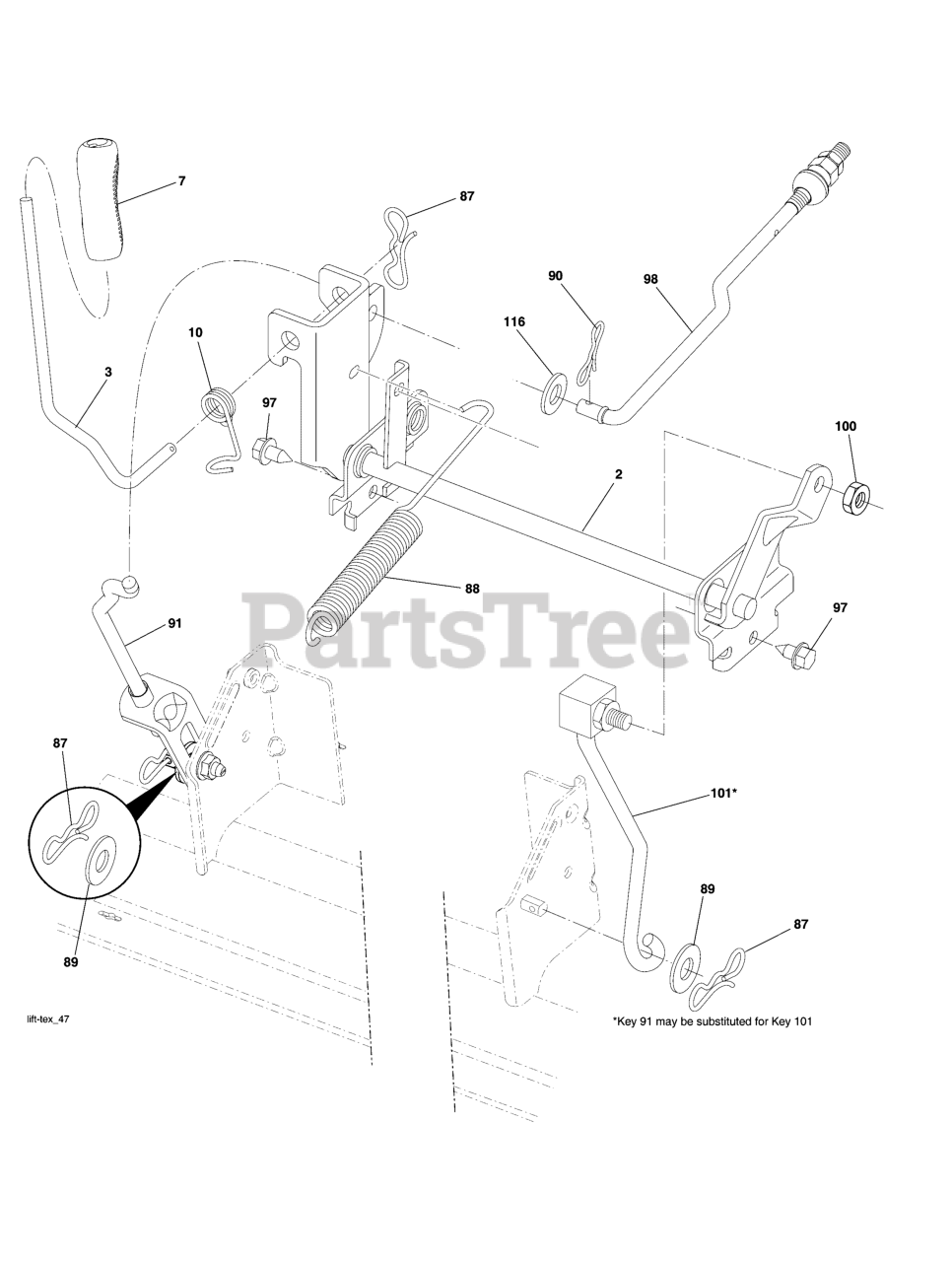

Mower Lift Group Parts Diagram

  • Title

2

Snapper 705239

Shaft Asm., Lift

$104.99

$

Usually ships in 2-12 days

0

3

Snapper 705092

Lever Asm., Lift RH

$78.99

$

Usually ships in 2-12 days

0

7

Snapper 705269

Grip, Lever
(Superseded to 709728)

$9.99

$

Usually ships in 2-12 days

0

10

Snapper 705098

Spring Torsion

$6.49

$

Usually ships in 2-12 days

0

87

Snapper 705066

Pin Cotter 7/16 Bow Tie Lock

$7.99

$

Usually ships in 2-12 days

0

88

Snapper 705183

Spring Lift Assist

$16.99

$

Usually ships in 2-12 days

0

89

Snapper 705338

Washer Clear Zinc

$11.99

$

Usually ships in 2-12 days

0

90

Snapper 705065

Pin Cotter 5/16 Bow Tie Lock

$7.49

$

In Stock, only 3 left!

0

91

Snapper 705089

Link Asm. Lift Rear

$78.99

$

Usually ships in 2-12 days

0

97

Snapper 705322

Screw 3/8-16 x .75 Smgml Tap/R.Z

$6.49

$

Usually ships in 2-12 days

0

98

Snapper 705093

Link Lift Susp. Front Mower

$39.99

$

In Stock, only 2 left!

0

100

Snapper 705356

Nut Centerlock 3/8-16 unc

$5.99

$

Usually ships in 2-12 days

0

101

Snapper 705175

Link Asm. Lift Fixed

$26.99

$

Usually ships in 2-12 days

0

116

Snapper 84004318

WASHER, 15/32 x 15/16 x 16 Ga.

$

$

Currently unavailable
