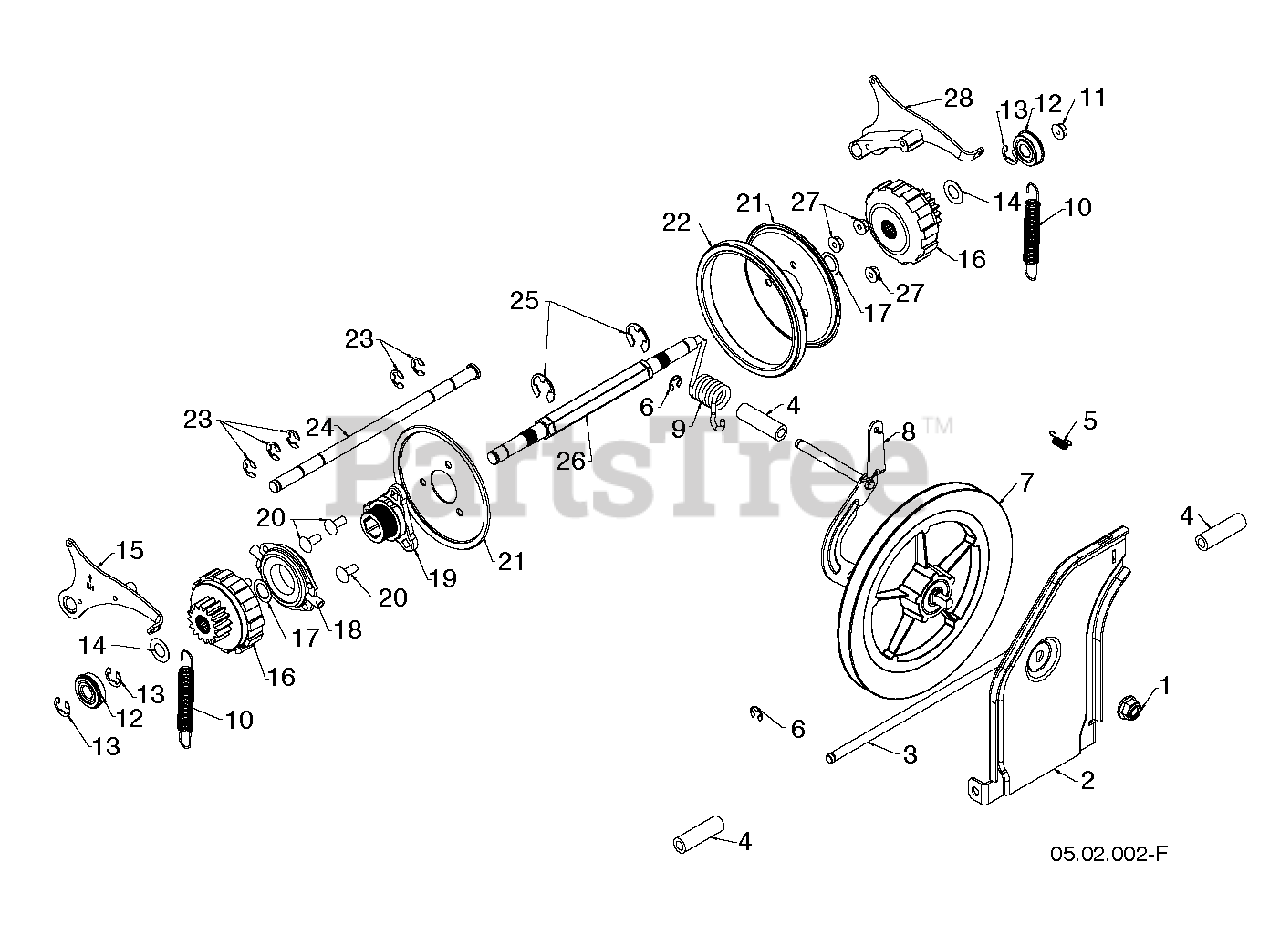

ST 2368 EP (961910092-01) - Jonsered Snow Thrower (2015-07) DRIVE Parts Diagram

Snow Thrower

DRIVE Parts Diagram

  • Title

1

Jonsered 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 587703402

Plate, Swing Friction Pulley 47

$14.99

$

Usually ships in 3-10 days

0

3

Jonsered 581123001

ROD.TIP.PLATE
(Superseded to 581123002)

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 581732701

SPACER YOKE, TORSION SPRING

$3.99

$

In Stock, only 4 left!

0

5

Jonsered 532193885

SPRING LATCH

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 812000007

(Superseded to 583607201)

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 581328401

Friction Disc Combo Pulley

$37.99

$

Usually ships in 3-10 days

0

8

Jonsered 587193403

Bracket Yoke Weldment
(Superseded to 581454203)

$

$

Not available

9

Jonsered 581315301

Drive Torsion Spring

$4.99

$

In Stock, only 1 left!

0

10

Jonsered 585263801

PS Extension Spring

$4.99

$

In Stock, Qty 6

0

11

Jonsered 585691501

Flange Hex Lock Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Jonsered 580756201

Bearing, 9/16" Id. Snr

$7.49

$

In Stock, only 2 left!

0

13

Jonsered 580756101

Retaining Ring
(Superseded to 580756102)

$4.99

$

In Stock, only 2 left!

0

14

Jonsered 580751301

Flat Washer, .637Id X 1.00Od X 21Ga

$4.99

$

In Stock, only 2 left!

0

15

Jonsered 580756601

PAWL.ASM.RH.SNOW

$21.99

$

Usually ships in 3-10 days

0

16

Jonsered 580756001

Gear Assembly Planetary

$80.99

$

In Stock, Qty 6

0

17

Jonsered 580756301

Flat Washer, .59Id X 1.065Od X 25Ga

$4.99

$

In Stock, only 2 left!

0

18

Jonsered 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

19

Jonsered 581090901

(Superseded to 588069201)

$34.99

$

In Stock, only 1 left!

0

20

Jonsered 872110506

BOLT

$7.49

$

In Stock, Qty 20+

0

21

Jonsered 581091002

Wheel Plate, Rubber Black

$12.99

$

In Stock, only 1 left!

0

22

Jonsered 581091101

Ring, Rubber

$12.99

$

Usually ships in 3-10 days

0

23

Jonsered 586644301

E-Ring Clip, .500 Shaft

$4.99

$

In Stock, only 1 left!

0

24

Jonsered 580755101

ROD ROD, PAWL ROD

$8.99

$

Usually ships in 3-10 days

0

25

Jonsered 812000022

E-RING

$6.99

$

Usually ships in 3-10 days

0

26

Jonsered 580752401

Power Str Shaft

$37.99

$

Usually ships in 3-10 days

0

27

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 9

0

28

Jonsered 580756701

PAWL.ASM.LH.SNOW

$21.99

$

Usually ships in 3-10 days

0
