ST 2368 EP (961920076-01) - Jonsered Snow Thrower (2014-08) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

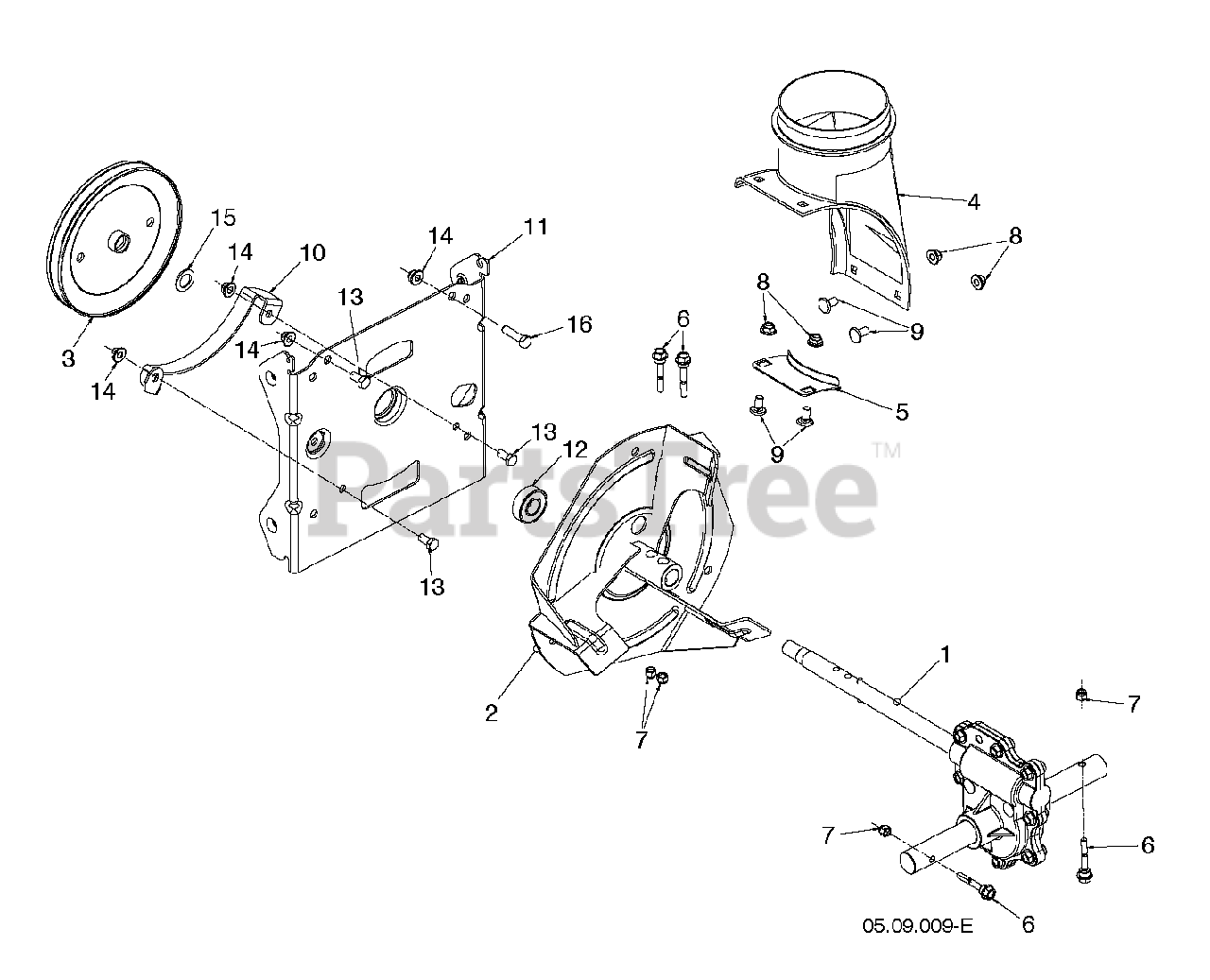

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Jonsered 586714801

Gear Box Assembly Alum
(Superseded to 597371501)

$242.99

$

Usually ships in 3-10 days

0

2

Jonsered 586607202

Impeller, Steel Snow Black

$40.99

$

Usually ships in 3-10 days

0

3

Jonsered 586715201

Screw-on Pulley, 7.3

$18.99

$

Usually ships in 3-10 days

0

4

Jonsered 585056901

Discharge Chute Base

$11.99

$

In Stock, Qty 18

0

5

Jonsered 532178675

RP BRACKET, CORNER DISCHARGE
(Superseded to 178675X431)

$2.49

$

Usually ships in 3-10 days

0

6

Jonsered 585511801

Hex Head Shear Bolt, 1/4-20 X 1-13/16
(Superseded to 588077501)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 585691301

Flange Hex Nut, Nylock Blk 5.16-1

$6.49

$

In Stock, only 4 left!

0

9

Jonsered 585691201

Carriage Wafer Bolt, 5/16-18

$7.49

$

In Stock, Qty 14

0

10

Jonsered 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

11

Jonsered 581592502

Auger Housing Inter Bracket, Black

$53.99

$

In Stock, only 3 left!

0

12

Jonsered 532198791

BEARING

$18.99

$

In Stock, only 1 left!

0

13

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 587392701

Impeller Pulley Washer

$

$

Not available

16

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0
