ST 522 H - Husqvarna 22" Snow Blower (1998-01) Engine Assembly Parts Diagram

22" Snow Blower

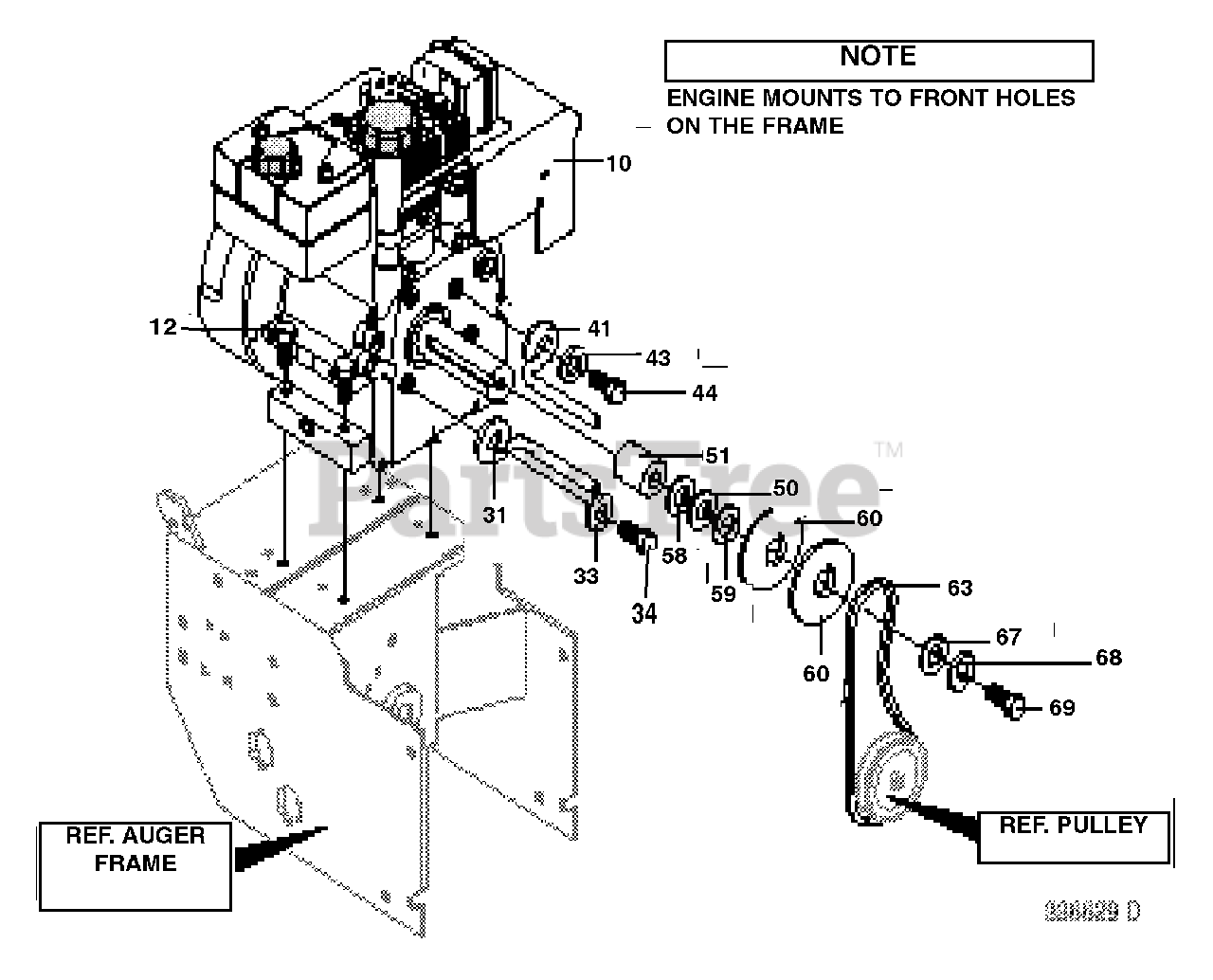

Engine Assembly Parts Diagram

  • Title

10

Engine

Note: See "Engine" Manual

$

$

Not available

12

Husqvarna 601002162

Screw, 5/16-18

$

$

Not available

31

Husqvarna 601001432

Guide, Rod Belt, RH

$

$

Not available

33

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

34

Husqvarna 601001443

Screw, 5/16-24 x .625

$

$

Not available

41

Husqvarna 601001432

Guide, Rod Belt RH

$

$

Not available

43

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

44

Husqvarna 601001443

Screw, 5/16-24 x .625

$

$

Not available

50

UNKNOWN

$

$

Not available

51

Husqvarna 601002145

Spacer, Slev .75 x 1.25 x 1.32

$

$

Not available

58

Husqvarna 601001438

Flatwasher .765 x 1.12 x .06

$

$

Not available

59

Husqvarna 601002020

Spacer, Slev .753 x 1.12 x .38

$

$

Not available

60

Husqvarna 601002021

Pulley, Eng V4L 3.00 x .75

$

$

Not available

63

Husqvarna 601002148

Belt, V 4L 35.23 Lg.

$

$

Not available

67

Husqvarna 601001441

Flatwasher

$

$

Not available

68

Husqvarna 601000015

Washer, Regsptlk

$

$

Not available

69

Husqvarna 601000527

Screw, 3/8-24 x 1.00

$

$

Not available

Husqvarna 601002327

Owner's Manual

$

$

Not available
