STT-31BSD - Scag Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton (SN: 9460001 - 9469999) Radiator & Engine Brackets Parts Diagram

Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton

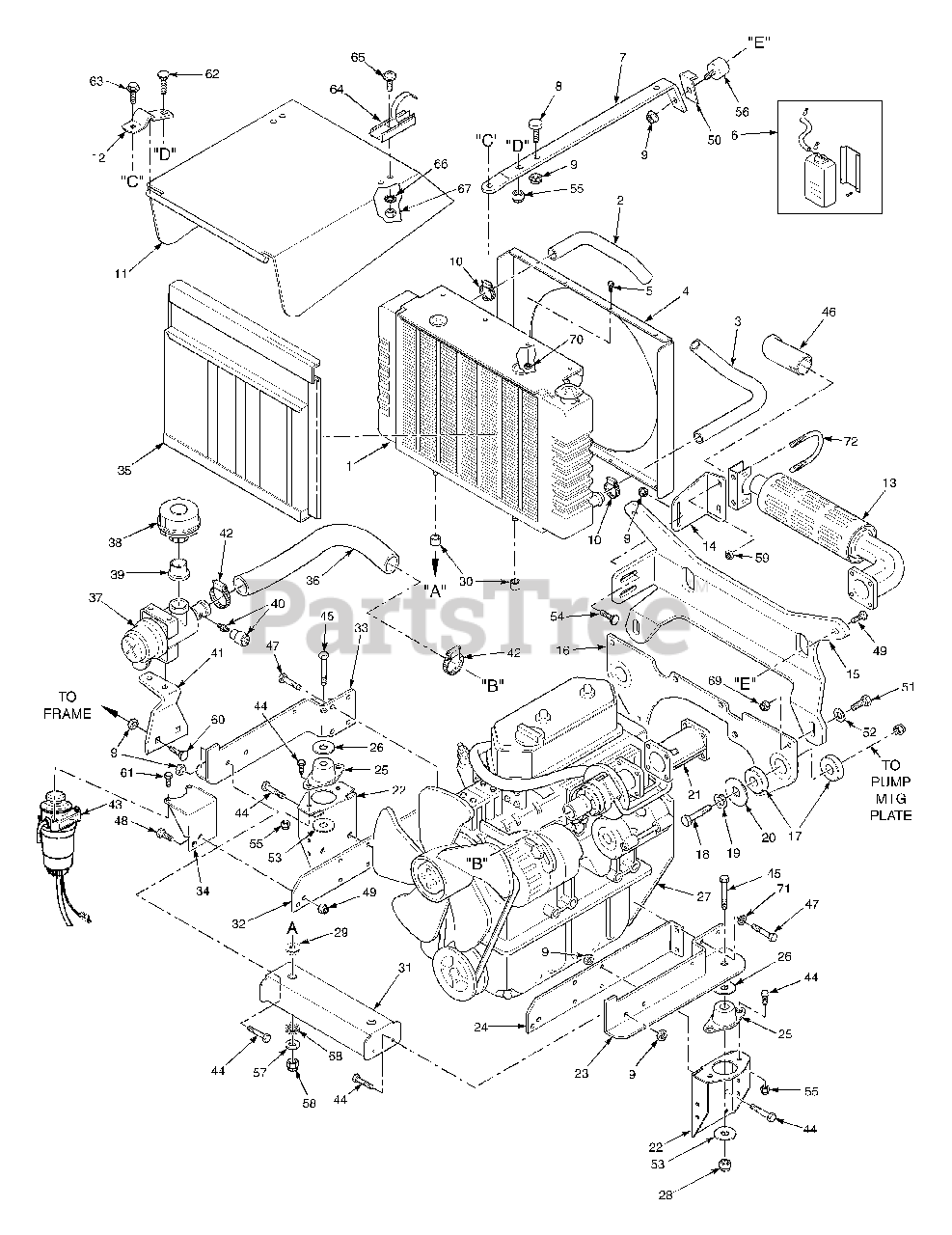

Radiator & Engine Brackets Parts Diagram

  • Title

1

Scag 482308

Radiator
(Superseded to 461895)

$2057.99

$

Usually ships in 2-12 days

0

2

Scag 481742

Hose, Upper Radiator

$41.99

$

Usually ships in 2-12 days

0

3

Scag 482366

Hose, Lower Radiator

$71.99

$

Usually ships in 2-12 days

0

4

Scag 423379

Shroud, Fan

$85.99

$

In Stock, only 1 left!

0

5

Scag 04010-26

Screw. #10-32 x 1/2"

$

$

Currently unavailable

6

Coolant Tank Assembly w/hose

Note: (Not Avail. Through Scag, Contact Briggs & Stratton)

$

$

Not available

7

Scag 423639

Support Bracket, Hood

$46.99

$

Usually ships in 2-12 days

0

8

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 2 left!

0

9

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

10

Scag 48136-12

Clamp, 1-1/2" Dia.

$12.99

$

Usually ships in 2-12 days

0

11

Scag 451486

Hood Weldment

$112.99

$

Usually ships in 2-12 days

0

12

Scag 422703

Hinge, Hood

$4.49

$

Usually ships in 2-12 days

0

13

Scag 482404

Muffler with Guard

$787.99

$

Usually ships in 2-12 days

0

14

Scag 423640

Brace, Muffler Support

$20.99

$

Usually ships in 2-12 days

0

15

Scag 423637

Mounting Bracket, Hood

$75.99

$

Usually ships in 2-12 days

0

16

Scag 451487

Mounting Bracket Weldment, Rear Engine Mount

$192.99

$

Usually ships in 2-12 days

0

17

Scag 482363

Engine ISO Mount, Rear

$25.99

$

Usually ships in 2-12 days

0

18

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

19

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

20

Scag 04041-33

Flatwasher, 1/2-.531 x 2.0 x .25

$8.49

$

Usually ships in 2-12 days

0

21

Scag 482403

Manifold Extension, Exhaust

$88.99

$

Usually ships in 2-12 days

0

22

Scag 423381

Mounting Bracket, Engine

$

$

Not available

23

Scag 451403

Mounting Bracket Weldment, Engine L.H.
(Superseded to 451750)

$113.99

$

Usually ships in 2-12 days

0

24

Scag 423382

Mounting Bracket, Engine L.H.

$

$

Not available

25

Scag 482362

Engine ISO Mount, Front

$47.99

$

Usually ships in 2-12 days

0

26

Scag 04041-33

Flatwasher, 1/2-.531 x 2.0 x .25

$8.49

$

Usually ships in 2-12 days

0

27

Scag 482270

Engine, Briggs & Stratton 31hp Diesel (Spec. #)

Note: Not Available Through Scag, Contact Briggs & Stratton

$

$

Currently unavailable

28

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

29

Scag 482602

Bushing, Radiator Isolator

$28.99

$

Usually ships in 2-12 days

0

30

Scag 43621

Bushing, Radiator ISO Mount

$6.99

$

Usually ships in 2-12 days

0

31

Scag 423638

Support Bracket, Radiator

$81.99

$

Usually ships in 2-12 days

0

32

Scag 423383

Mounting Bracket, Engine R.H.

$

$

Not available

33

Scag 451404

Mounting Bracket Weldment, Engine R.H.
(Superseded to 451751)

$113.99

$

Usually ships in 2-12 days

0

34

Scag 423424

Mounting Bracket, Water Seperator

$16.99

$

Usually ships in 2-12 days

0

35

Scag 451083

Debris Screen

$493.99

$

Usually ships in 2-12 days

0

36

Scag 482368

Hose, Air Intake

$92.99

$

Usually ships in 2-12 days

0

37

Scag 482405

Air Cleaner Assembly w/mounting Band

$645.99

$

Usually ships in 2-12 days

0

38

Scag 481816

Pre Cleaner, Engine Air

$155.99

$

Usually ships in 2-12 days

0

39

Scag 481924

Adapter, Pre Cleaner

$23.99

$

In Stock, only 1 left!

0

40

Scag 481818

Indicator, Air Cleaner

$120.99

$

Usually ships in 2-12 days

0

41

Scag 423915

Bracket, Air Cleaner

$35.99

$

Usually ships in 2-12 days

0

42

Scag 48136-15

Clamp, Hose 2-1/2" Dia.

$10.99

$

Usually ships in 2-12 days

0

43

Fuel Filter, Water Seperator

Note: (Not Avail. Through Scag)

$

$

Not available

44

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.99

$

In Stock, only 1 left!

0

46

Scag 481827

Elbow, Exhaust

$63.99

$

Usually ships in 2-12 days

0

47

Scag 04002-01

Bolt, Hex Head M8-1.25 x 3mm

$0.99

$

Usually ships in 2-12 days

0

48

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

49

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

50

Scag 423641

Catch Bracket, Hood Latch

$18.99

$

Usually ships in 2-12 days

0

51

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

52

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

53

Scag 04041-32

Flatwasher, 1/2-.531 x 2.13 x .1345

$8.49

$

Usually ships in 2-12 days

0

54

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

0

55

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

56

Scag 482603

Rubber Isolator

$18.99

$

Usually ships in 2-12 days

0

57

Scag 04041-35

Flatwasher, 7/16-.469 x 2.0 x .1345

$3.49

$

Usually ships in 2-12 days

0

58

Scag 04021-21

Nut, Center Lock 7/16-14

$0.99

$

In Stock, only 3 left!

0

59

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

61

Bolt

Note: (Not Available Through Scag, Contact Briggs & Stratton)

$

$

Not available

62

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

0

63

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4" Serr. Flange

$0.99

$

In Stock, Qty 10

0

64

Scag 481309

Latch, Hood

$59.99

$

In Stock, only 1 left!

0

65

Scag 04010-21

Screw, #10-32 x .375

$0.99

$

Usually ships in 2-12 days

0

66

Scag 04031-01

Lockwasher, #10 Spring

$0.99

$

In Stock, Qty 20+

0

67

Scag 04020-01

Nut, #10

$8.99

$

In Stock, Qty 20+

0

68

Scag 482601

Ring, Isolator

$16.99

$

Usually ships in 2-12 days

0

69

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

70

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

71

Scag 04030-03

Lockwasher, 5/16 Spring

$0.99

$

In Stock, Qty 20+

0

72

Scag 48633

Muffler Clamp 1-1/2" Dia.

$6.49

$

In Stock, only 2 left!

0
