STZ-20KH - Scag STZ Zero-Turn Mower, 20hp Kohler (SN: 30000 - 39999) BRAKE AND STEERING CONTROLS Parts Diagram

STZ Zero-Turn Mower, 20hp Kohler

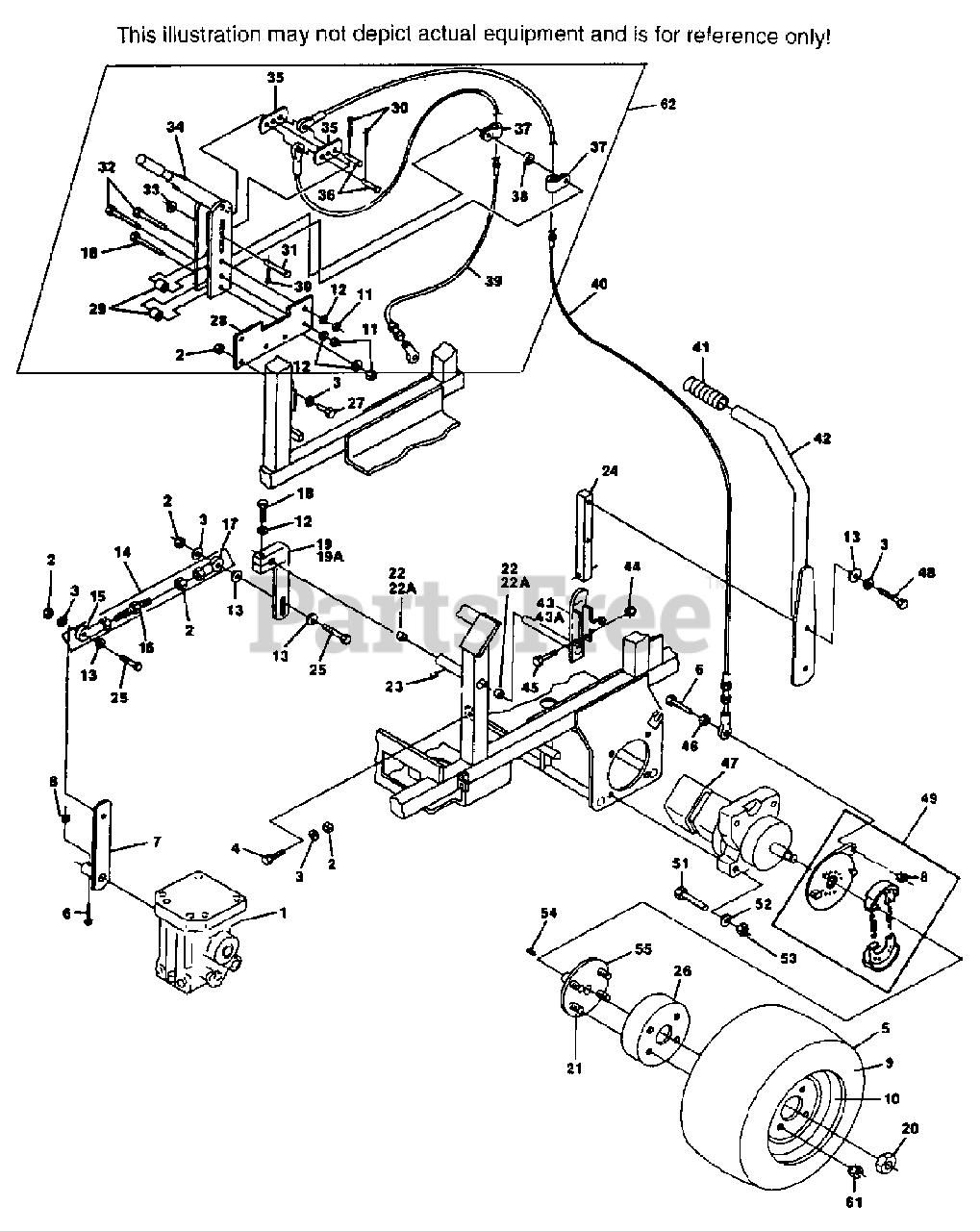

BRAKE AND STEERING CONTROLS Parts Diagram

  • Title

1

Scag 48597

PUMP, SUNDSTRAND
(Superseded to 46763)

$1325.99

$

Usually ships in 2-12 days

0

2

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

3

LOCKWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

HEX HEAD BOLT, 3/8-16 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

Scag 48554

WHEEL ASSEMBLY

$429.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 1/4-20 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 45432

LEVER, PUMP CONTROL

$61.99

$

Usually ships in 2-12 days

0

8

HEX NUT, 1/4-20 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

Scag 48554-01

TIRE ONLY

$339.99

$

Usually ships in 2-12 days

0

10

Scag 48416-04

RIM ONLY

$298.99

$

Usually ships in 2-12 days

0

11

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

Scag 04041-07

FLAT WASHER 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 10

0

14

Scag 46388

TURNBUCKLE ASSEMBLY

$127.99

$

Usually ships in 2-12 days

0

15

Scag 48544

BALL JOINT, LH THREAD

$27.99

$

Usually ships in 2-12 days

0

16

Scag 48590

LINK, TURNBUCKLE

$33.99

$

Usually ships in 2-12 days

0

17

Scag 48464

BALL JOINT, RH THREAD

$23.99

$

In Stock, only 1 left!

0

18

HEX HEAD BOLT, 5/16-18 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 45434

LEVER, PUMP TRANSFER - RH

$132.99

$

Usually ships in 2-12 days

0

19A

Scag 45433

LEVER, PUMP TRANSFER - LH

$

$

Not available

20

Scag 48813

SPRING LOCK NUT

$24.99

$

Usually ships in 2-12 days

0

21

Scag 04008-01

SERRATED BOLT, 1/2-20

$3.99

$

In Stock, Qty 20+

0

22

Scag 48100-06

BUSHING - LH

$1.49

$

In Stock, Qty 9

0

22A

Scag 48100-05

BUSHING - RH

$0.99

$

In Stock, Qty 16

0

23

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

24

Scag 421145

BAR CONTROL LEVER

$40.99

$

Usually ships in 2-12 days

0

25

HEX HEAD BOLT, 3/8-16 X 1 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

26

Scag 48513

BRAKE DRUM

$97.99

$

Usually ships in 2-12 days

0

27

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 42884

BRAKE EXTENSION BAR

$

$

Not available

29

Scag 48574-01

SPACER

$

$

Not available

30

Scag 48574-09

COTTER PIN

$

$

Not available

31

Scag 48574-03

PIN

$

$

Not available

32

HEX HEAD BOLT, 5/16-18 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

33

Scag 48574-04

WASHER

$

$

Not available

34

Scag 48574

BRAKE LEVER ASSEMBLY, COMPLETE

$236.99

$

Usually ships in 2-12 days

0

35

Scag 48574-05

EQUALIZER

$

$

Not available

36

Scag 48574-06

PIN

$

$

Not available

37

Scag 48574-07

CLAMP

$

$

Not available

38

Scag 48574-08

SPACER

$

$

Not available

39

Scag 48549

BRAKE CABLE - RH

$148.99

$

Usually ships in 2-12 days

0

40

Scag 48548

BRAKE CABLE - LH

$136.99

$

Usually ships in 2-12 days

0

41

Scag 48093

GRIP, CONTROL HANDLE

$1.99

$

In Stock, only 1 left!

0

42

Scag 45437

CONTROL HANDLE

$

$

Not available

43

Scag 45436

CONTROL LEVER - RH
(Superseded to 45898)

$

$

Not available

43A

Scag 45435

CONTROL LEVER - LH
(Superseded to 45897)

$71.99

$

Usually ships in 2-12 days

0

44

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

HEX HEAD BOLT, 5/16-18 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?46

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

Scag 48769

MOTOR, WHITE

$2963.99

$

Usually ships in 2-12 days

0

48

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

Scag 48461

PARKING BRAKE ASSEMBLY

$318.99

$

Usually ships in 2-12 days

0

?50

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

HEX HEAD BOLT, 1/2-13 X 2-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

LOCKWASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

53

HEX NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

54

Scag 04063-16

KEY, 5/16 X 5/16 X 15/16"

$1.99

$

Usually ships in 2-12 days

0

55

Scag 46332

WHEEL HUB ASSEMBLY
(Superseded to 46929)

$178.99

$

In Stock, only 1 left!

0

?56

Scag 48513

BRAKE DRUM

$97.99

$

Usually ships in 2-12 days

0

?57

Scag 48554

WHEEL ASSEMBLY

$429.99

$

Usually ships in 2-12 days

0

?58

Scag 48554-01

TIRE ONLY

$339.99

$

Usually ships in 2-12 days

0

?59

Scag 48416-04

RIM ONLY

$298.99

$

Usually ships in 2-12 days

0

61

Scag 04028-01

LUG NUT, 1/2-20

$1.49

$

In Stock, Qty 14

0

62

UNKNOWN

$

$

Not available
